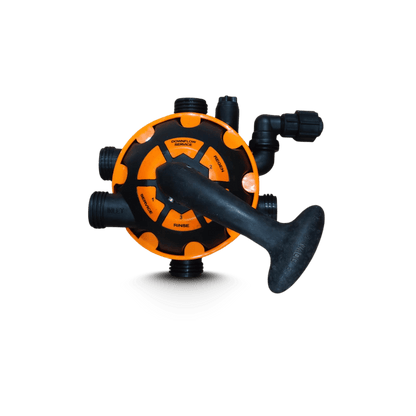

Softener S0525SM Multiport Valve by Initiative Engineering (25 NB, Side Mount, Softener, Front Facing)

Softener S0525SM Multiport Valve by Initiative Engineering (25 NB, Side Mount, Softener, Front Facing)

Rs. 1,839.00 + GST
Rs. 2,170.02 (Incl. GST)
Rs. 2,669.00 Rs. 1,839.00 + GST
Rs. 2,170.02 (Incl. GST)
рдмрд┐рдХреНрд░реА рдмрд┐рдХ рдЧрдпрд╛
рд╢рд┐рдкрд┐рдВрдЧ рд╢реБрд▓реНрдХ рдХрд╛ рд╣рд┐рд╕рд╛рдм рдЪреЗрдХрдЖрдЙрдЯ рдХреЗ рд╕рдордп рд▓рдЧрд╛рдпрд╛ рдЬрд╛рдПрдЧрд╛ред

The Initiative Engineering Softener S0525SM┬аis a 25 NB side-mounted front-facing multiport valve designed specifically for water softener systems. Engineered for reliable softening performance and smooth regeneration control, this valve is ideal for residential, commercial, and light industrial water treatment applications.

Its side-mount construction provides secure vessel integration, while the front-facing connection design allows convenient pipeline routing and easier maintenance access. Built with durable engineering materials and dependable sealing components, the S0525SM delivers long-lasting performance in continuous water softening operations.

ЁЯлЧ Quick Highlights

  • 25 NB side mount multiport valve
  • Front-facing connection design
  • Designed specifically for water softeners
  • Compact and durable construction
  • Smooth manual lever operation
  • Easy installation and servicing
  • Suitable for domestic and commercial softener systems
  • Compatible with FRP softener vessels
  • 25 NB
  • Side Mount
  • Softener Valve
рдкреВрд░реА рдЬрд╛рдирдХрд╛рд░реА рджреЗрдЦреЗрдВ

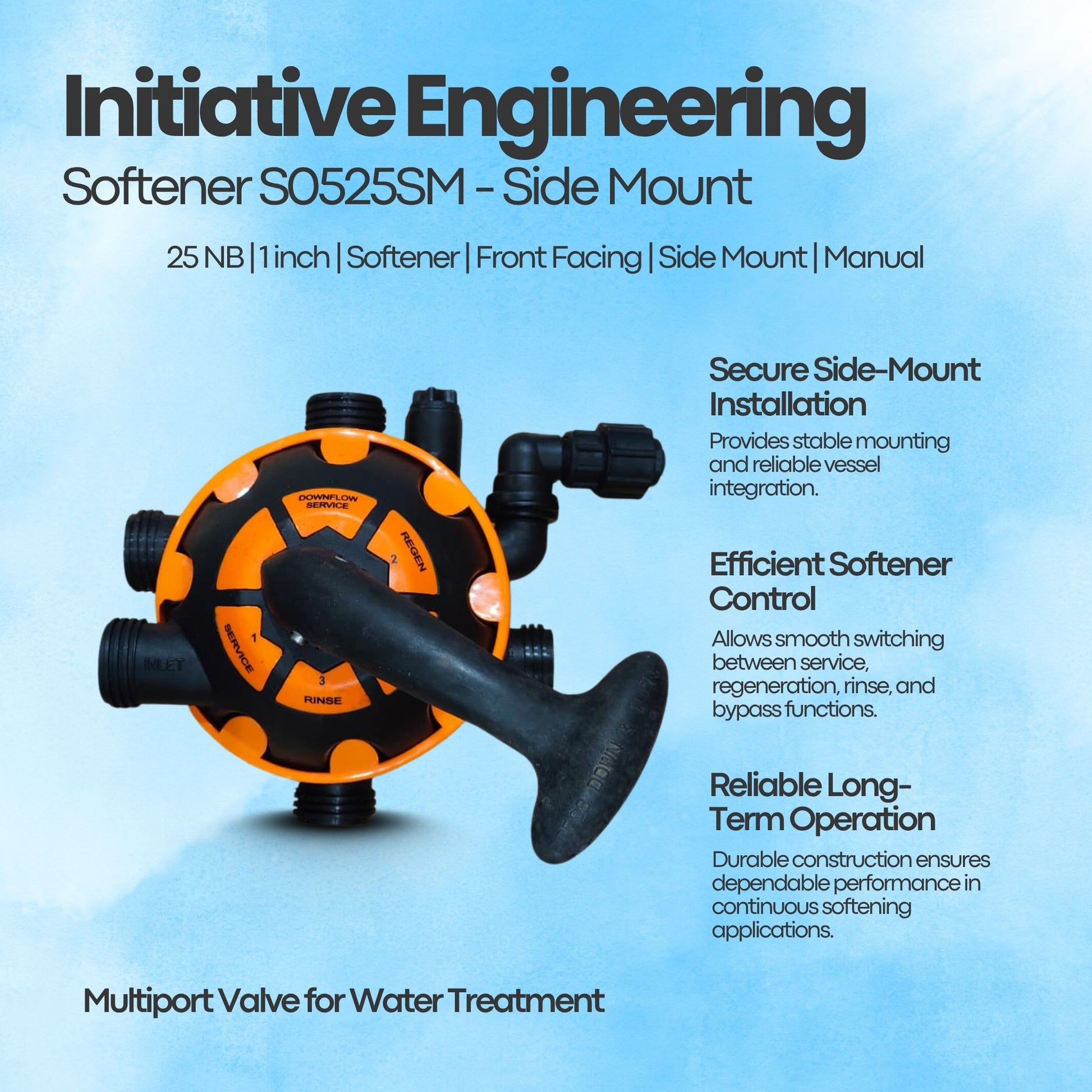

ЁЯТз Key Benefits

Easy Front-Facing Piping

Front-facing ports simplify pipeline connections and provide cleaner system layouts.

Efficient Softener Control

Allows smooth switching between service, regeneration, rinse, and bypass functions.

Secure Side-Mount Installation

Provides stable mounting and reliable vessel integration.

Compact Design

Suitable for installations where space optimization is important.

Easy Maintenance

Designed for convenient servicing and cleaning of internal components.

Reliable Long-Term Operation

Durable construction ensures dependable performance in continuous softening applications.

ЁЯУМ┬аTechnical Properties

  • Brand: Initiative Engineering
  • Model:┬аS0525SM
  • Valve Type:┬аManual Multiport Valve
  • Application:┬аWater Softener System
  • Mounting Type:┬аSide Mount
  • Port Facing:┬аFront Facing

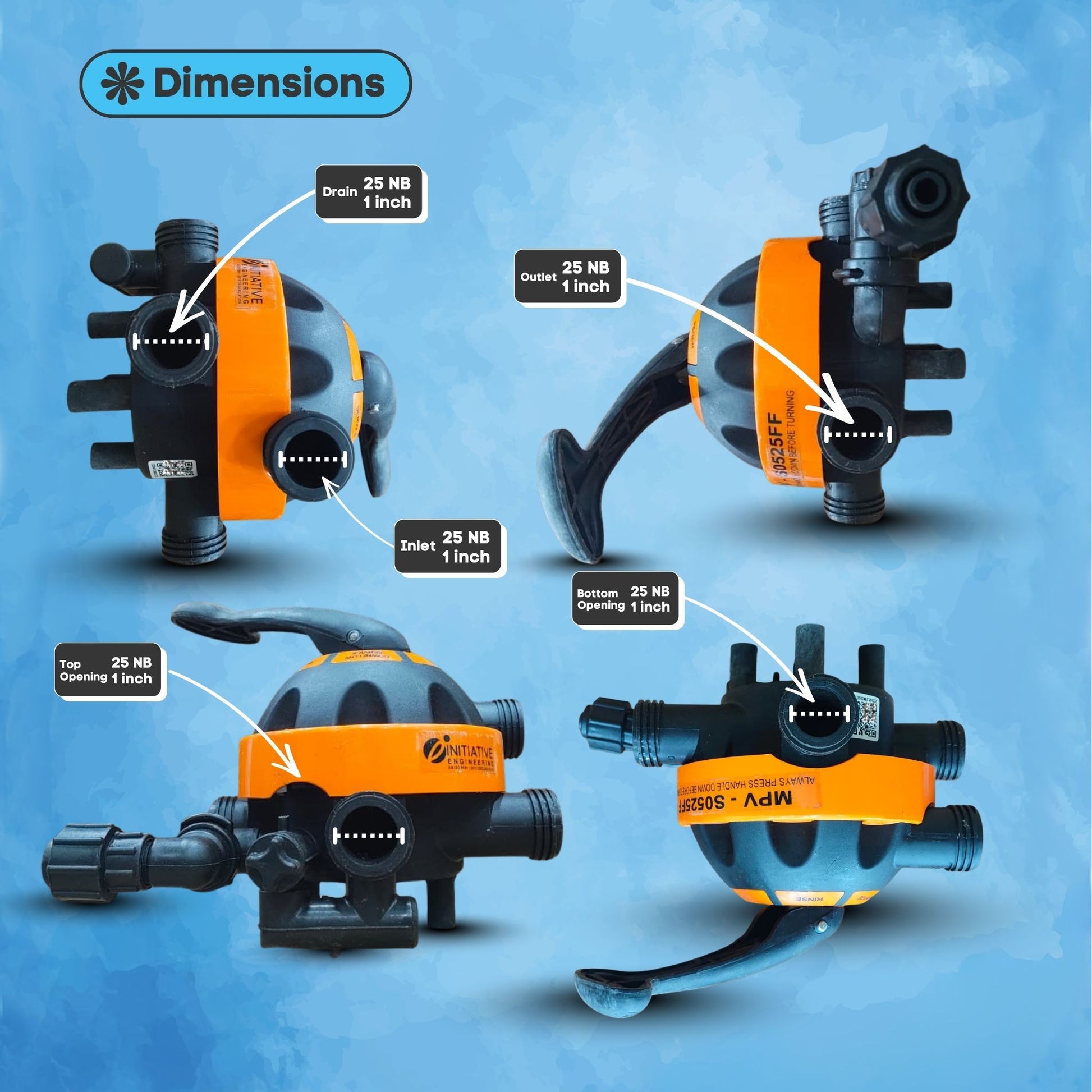

  • Connection Size:┬а25 NB / 1 inch
  • Compatible Vessel Type:┬аFRP Softener Vessel
  • Operation Type:┬аManual Lever Operated
  • Application Media:┬аSoftener Resin
  • Installation Orientation:┬аSide Mounted
  • Body Construction:┬аHeavy Duty Engineering Plastic
  • Optional Accessories:┬аPressure Gauge Adaptor, True Union Joint, Drain Elbow, S Connector

ЁЯМК┬аApplications

  • Domestic Water Softeners
  • Commercial Water Softener Systems
  • Boiler Feed Water Softening
  • Laundry Water Treatment
  • RO Pretreatment Softener Systems
  • Apartment Water Softening Systems
  • Hard Water Treatment Plants
  • Light Industrial Water Softening

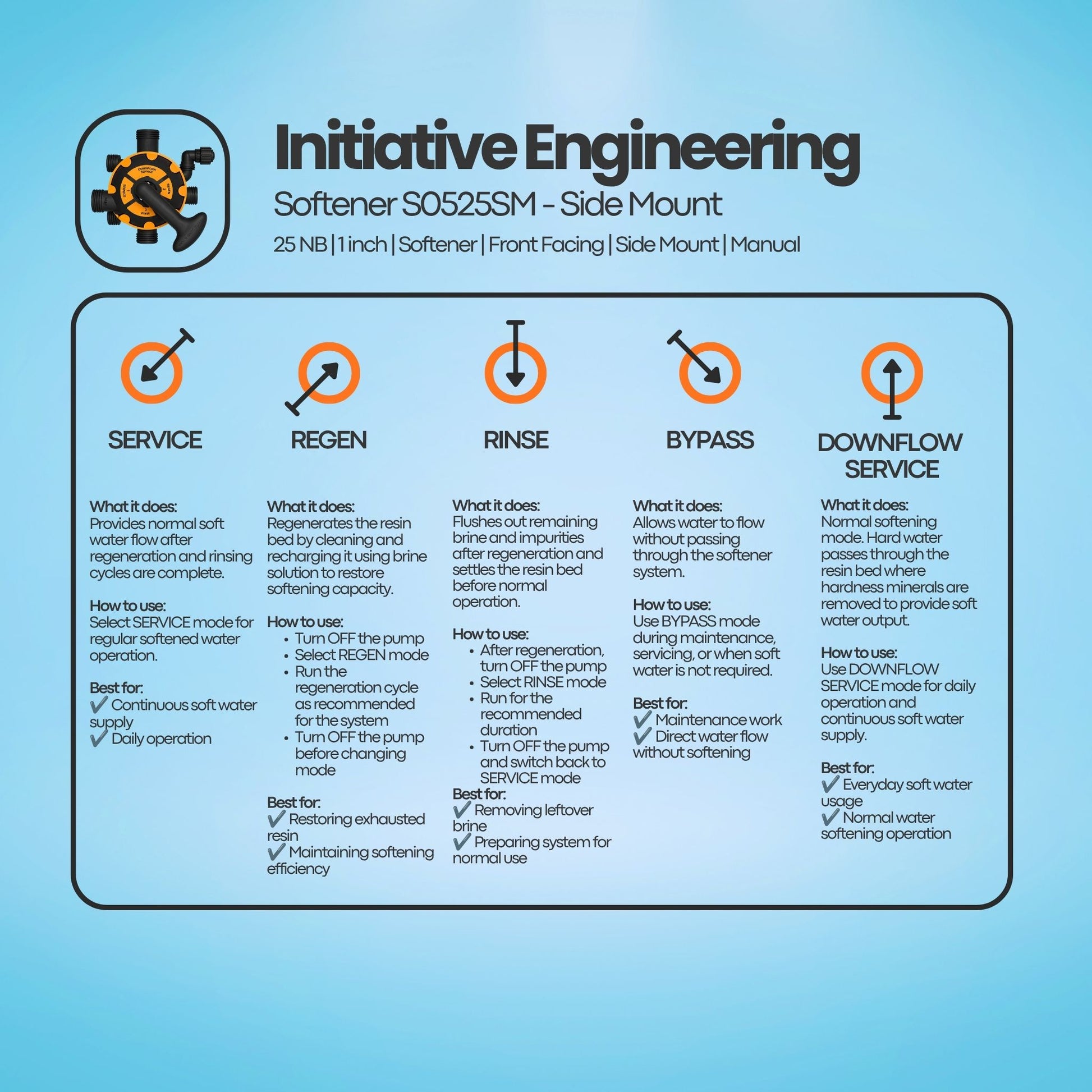

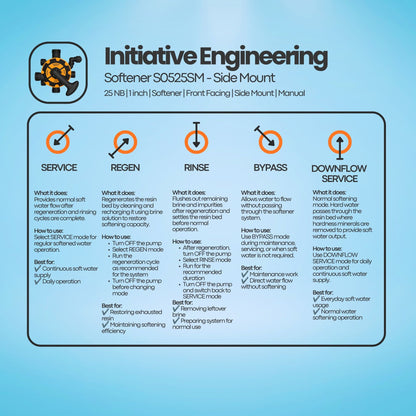

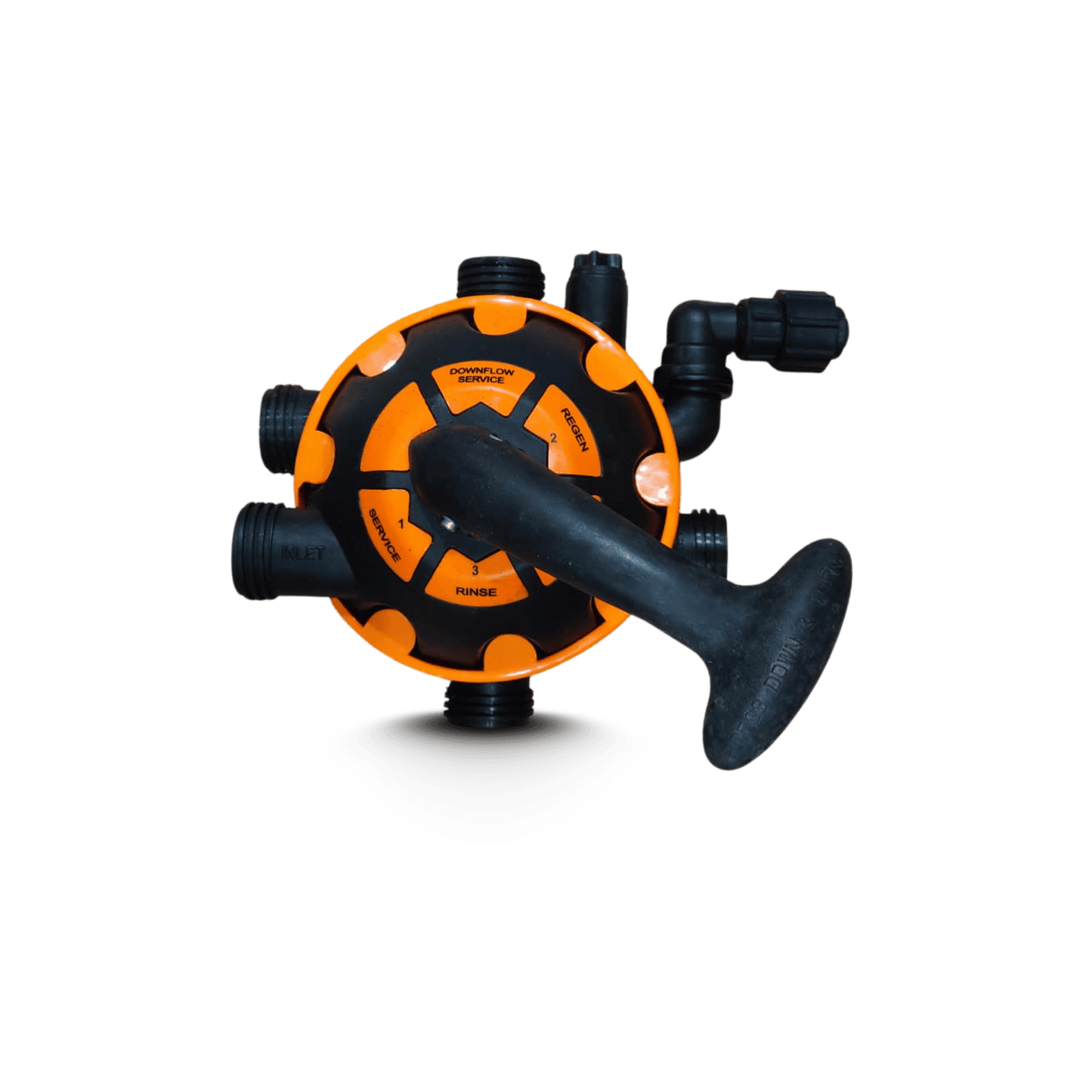

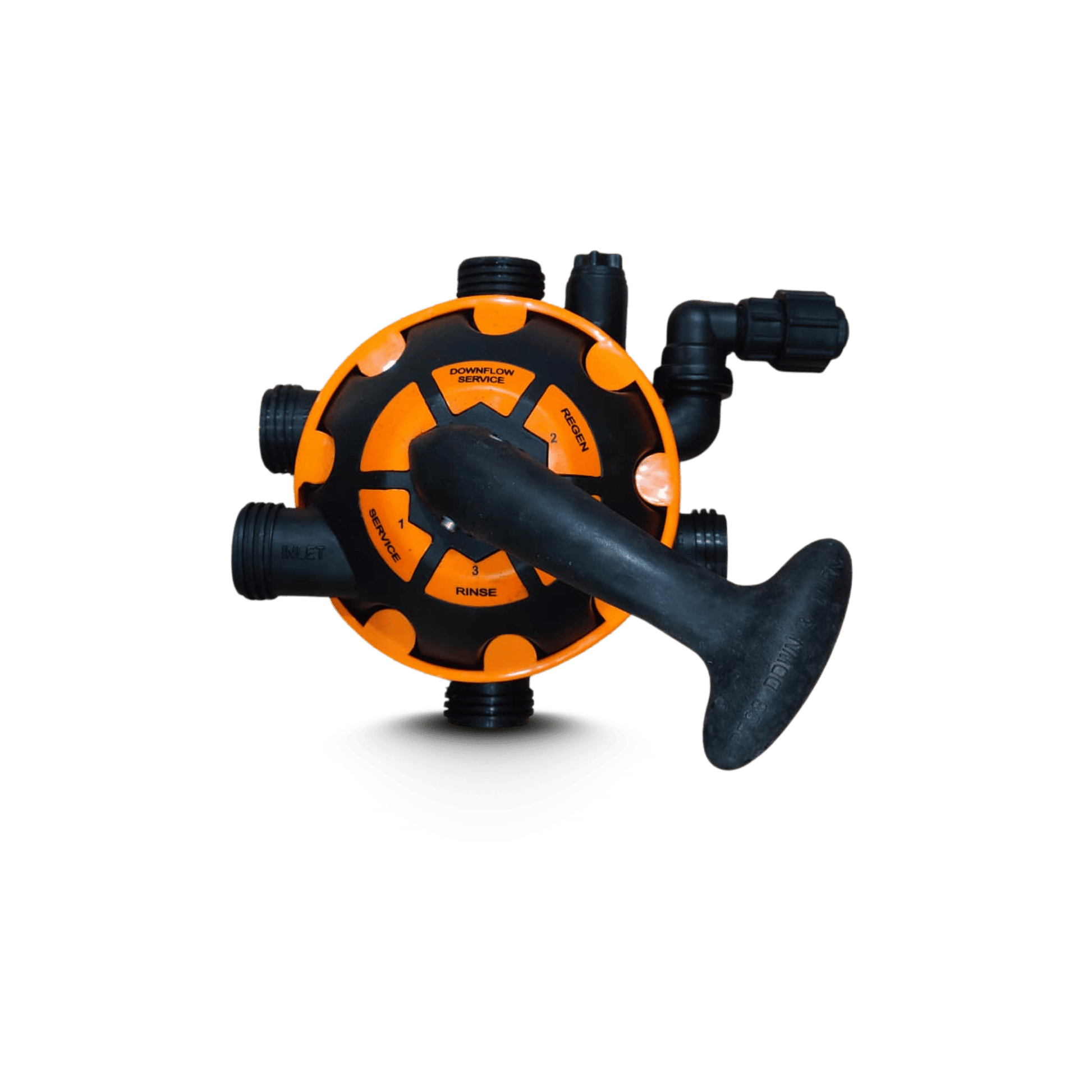

ЁЯОЫя╕П Modes

  • Downflow Service
  • Regeneration (Regen)
  • Bypass
  • Rinse
  • Service

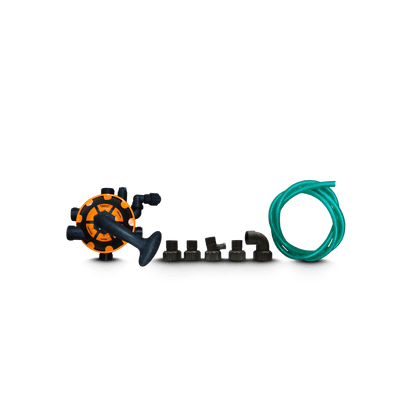

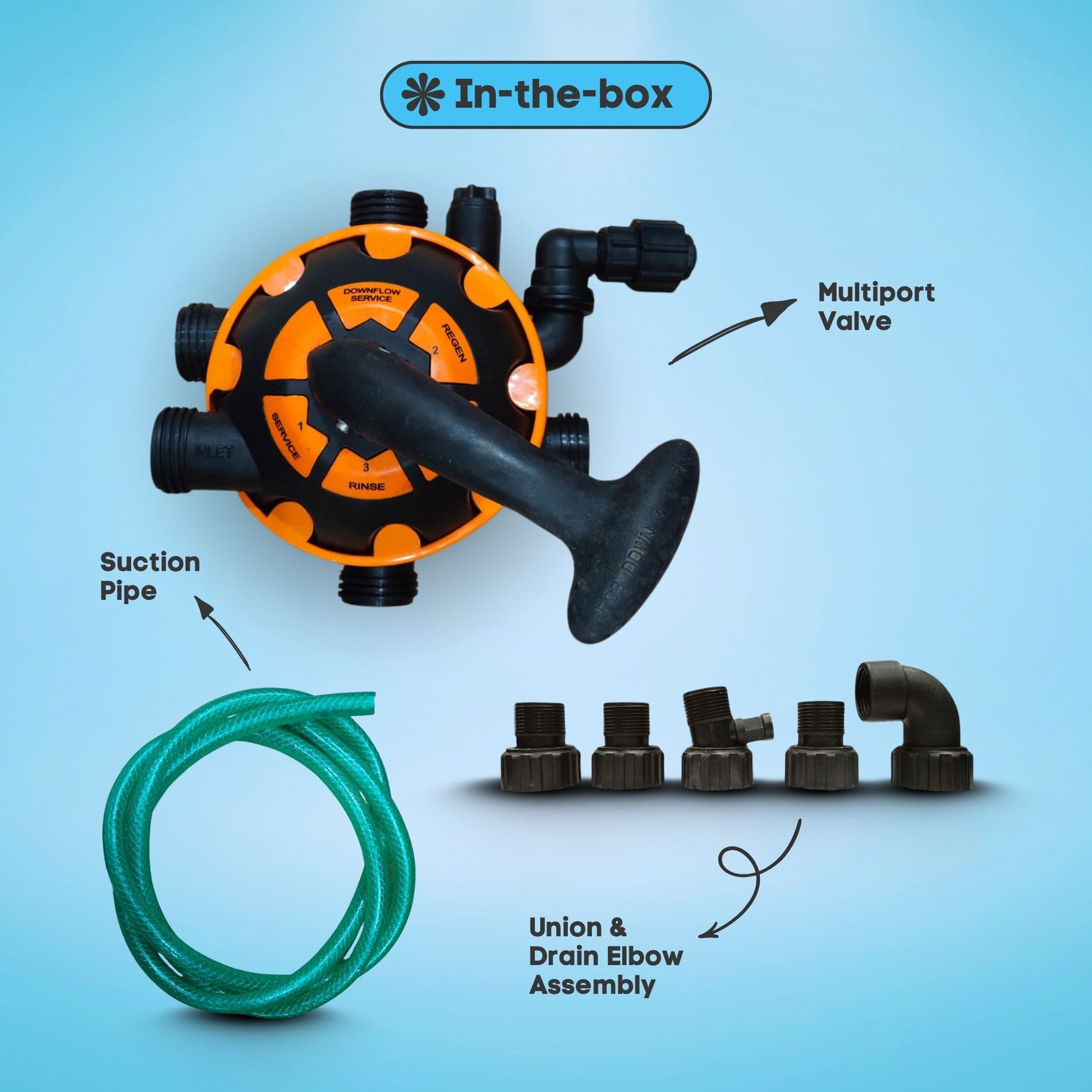

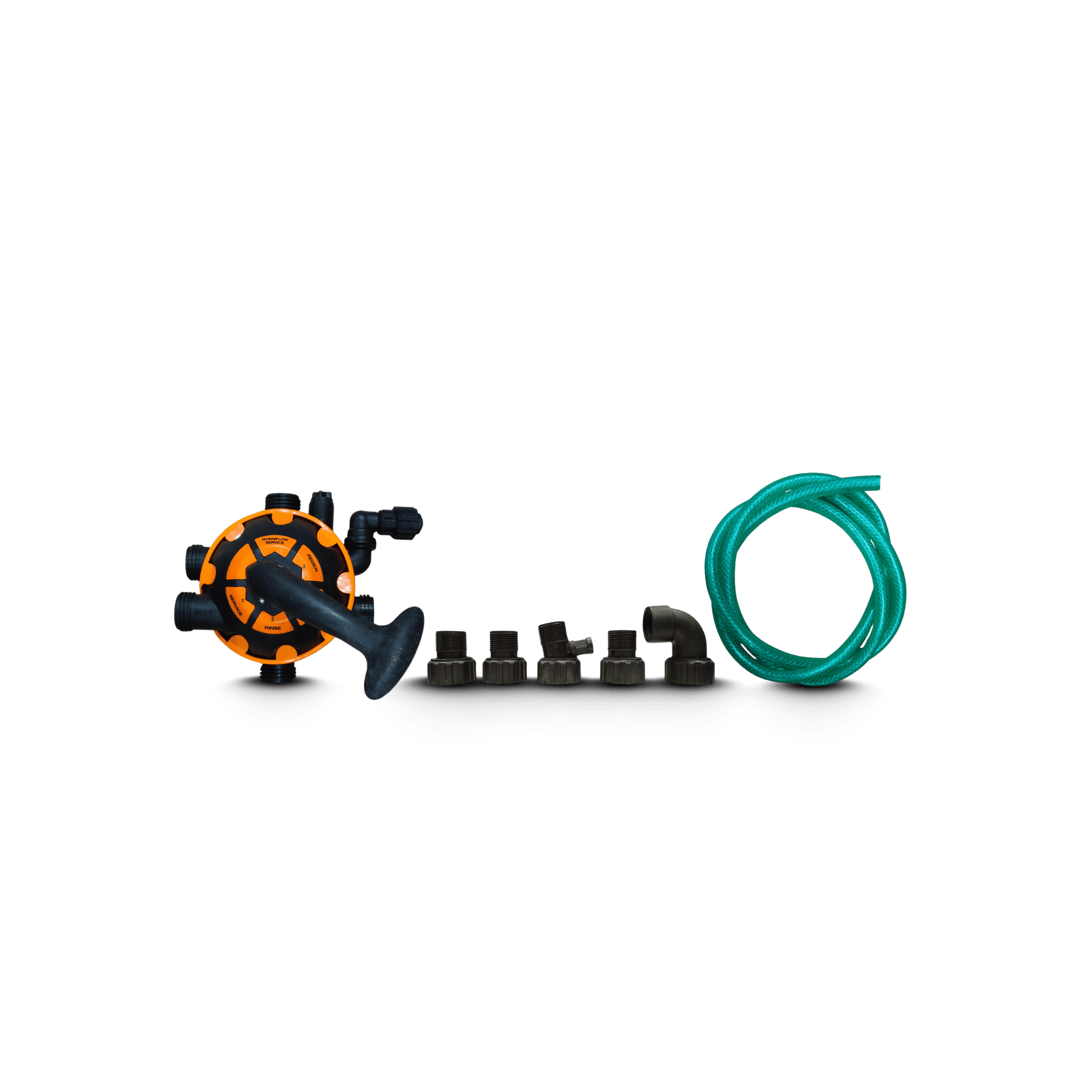

ЁЯУж In-The-Box

  • 25 NB Side Mount Front Facing Filter Multiport Valve
  • Union Assembly
  • Drain Elbow Assembly

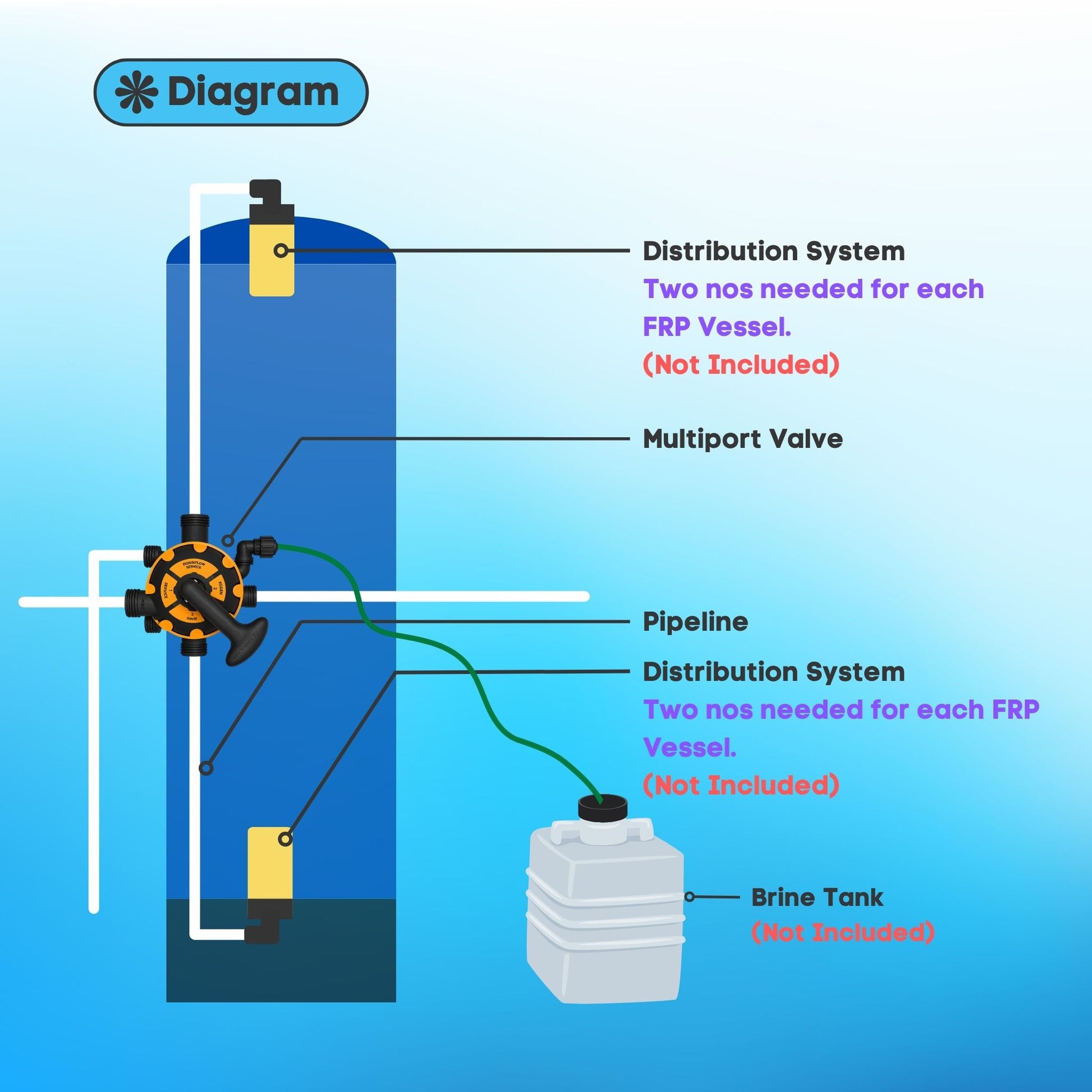

ЁЯФз How To Install

  1. Mount the valve securely on the side opening of the softener vessel.

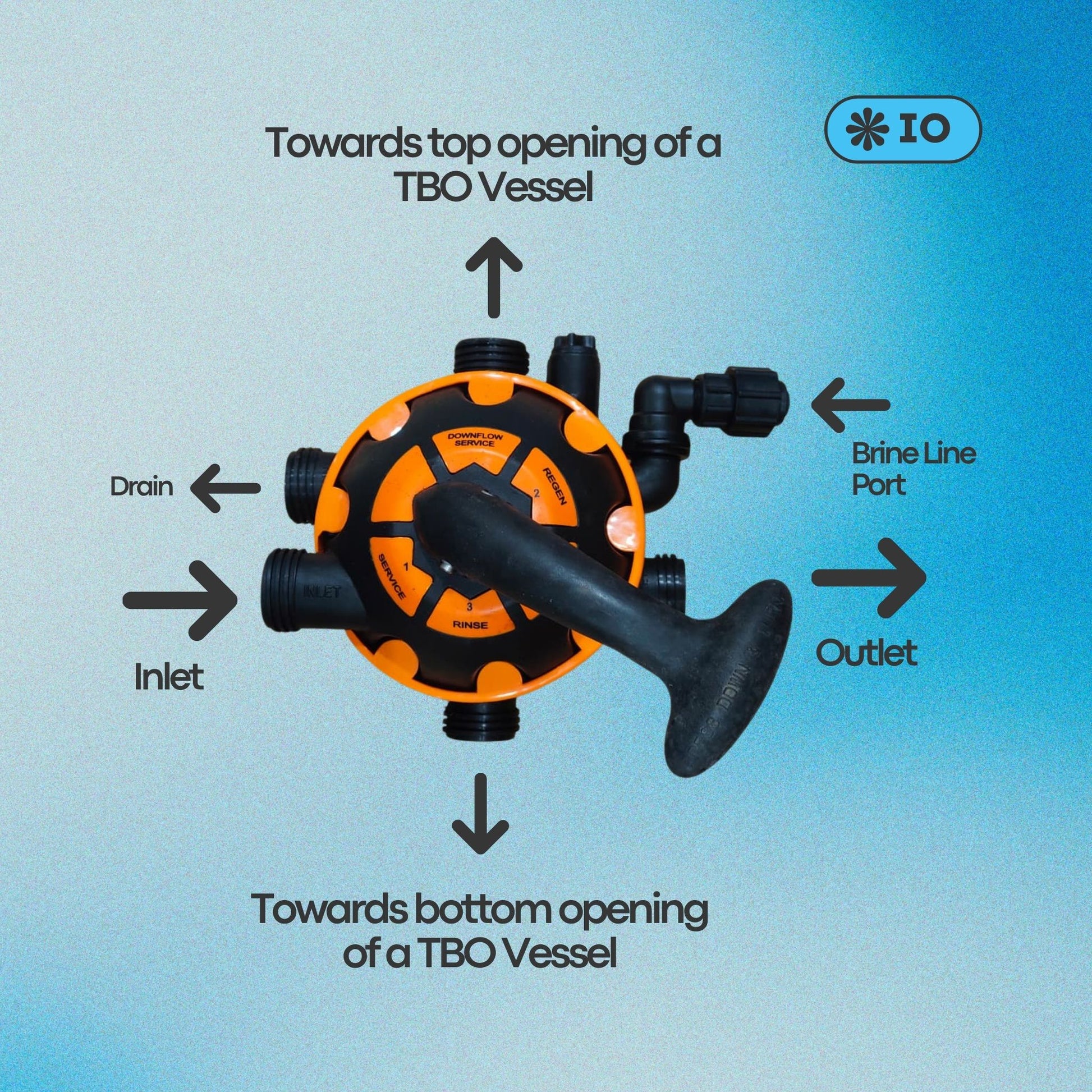

  2. Connect inlet, outlet, and drain pipelines according to valve markings.
  3. Install the riser pipe and bottom distributor assembly correctly.
  4. Tighten all threaded joints using suitable sealing tape.
  5. Connect the brine line required for regeneration operation.
  6. Slowly fill the vessel with water and inspect all connections for leakage.
  7. Perform initial regeneration and rinse cycles before placing the softener into service mode.

тЪЩя╕П How It Works

The 25 NB Side Mount Front Facing Softener Multiport Valve directs water flow through the softener vessel during different stages of operation.

In service mode, hard water passes through the resin bed where hardness-causing minerals such as calcium and magnesium are removed through ion exchange. During regeneration mode, brine solution restores the resin's softening capacity. The rinse mode flushes excess brine and prepares the resin bed for normal operation.

The bypass mode allows water flow while isolating the softener during maintenance or servicing.

тнРя╕П Why Is It Better?

Front-Facing Side-Mount Design

Provides easier access to connections and simplifies installation.

Smooth Regeneration Control

Ensures reliable operation throughout the softening cycle.

Compact Installation Footprint

Ideal for domestic and commercial softener applications.

Easy Maintenance Access

Allows quicker servicing and reduced maintenance downtime.

Durable Construction

Built for long service life in continuous water treatment environments.

Consistent Softening Performance

Maintains reliable water flow and efficient regeneration operation.
