Softener S0225TF Multiport Valve by Initiative Engineering (20 NB, Top Mount, Softener, Sky Facing)

Softener S0225TF Multiport Valve by Initiative Engineering (20 NB, Top Mount, Softener, Sky Facing)

Rs. 999.00 + GST
Rs. 1,178.82 (Incl. GST)
Rs. 1,449.00 Rs. 999.00 + GST
Rs. 1,178.82 (Incl. GST)
рдмрд┐рдХреНрд░реА рдмрд┐рдХ рдЧрдпрд╛
рд╢рд┐рдкрд┐рдВрдЧ рд╢реБрд▓реНрдХ рдХрд╛ рд╣рд┐рд╕рд╛рдм рдЪреЗрдХрдЖрдЙрдЯ рдХреЗ рд╕рдордп рд▓рдЧрд╛рдпрд╛ рдЬрд╛рдПрдЧрд╛ред

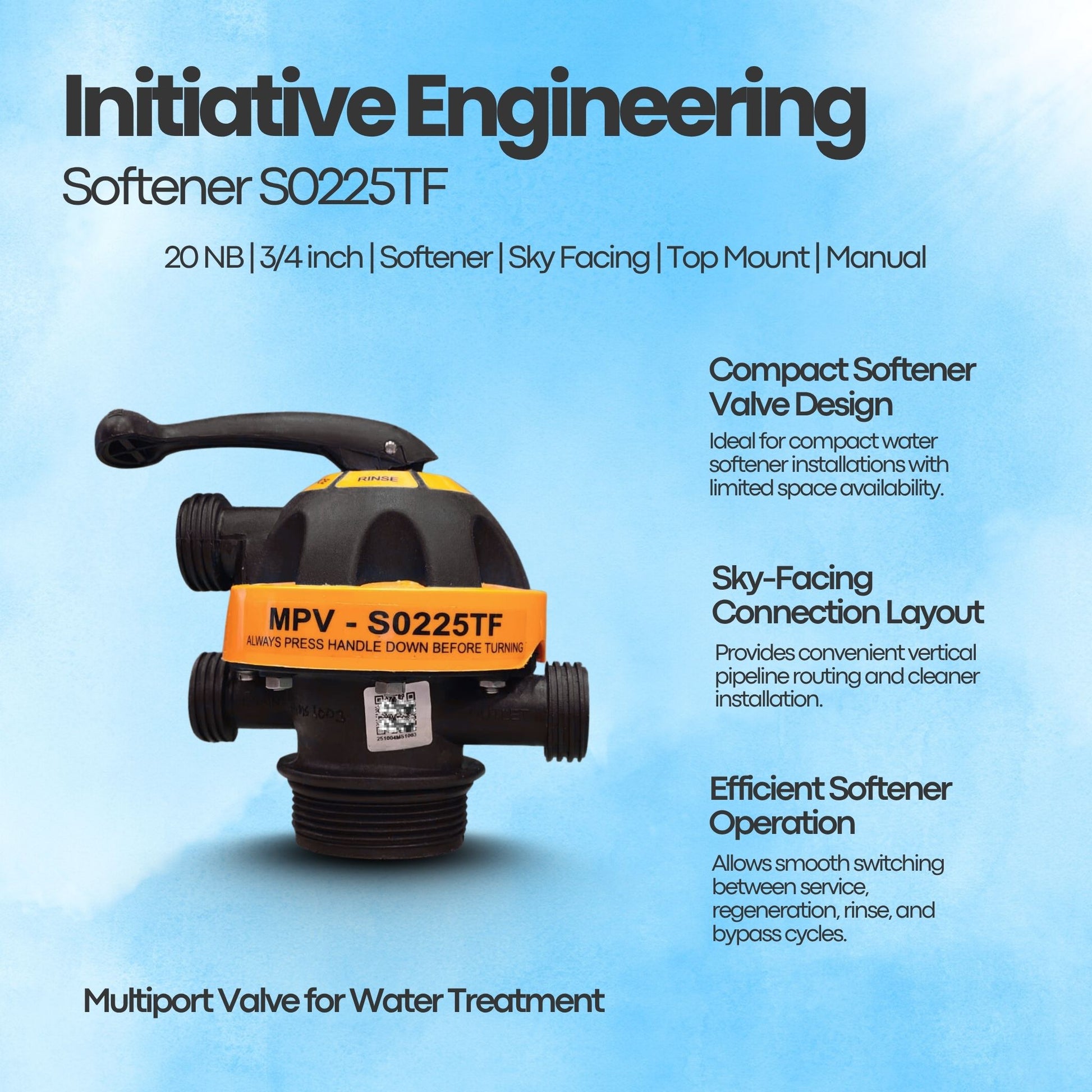

The Initiative Engineering Softener S0225TF┬аis a 20 NB top-mounted sky-facing multiport valve designed specifically for water softener systems. Its compact construction and sky-facing connection layout provide convenient vertical piping and efficient installation for domestic, commercial, and light industrial softening applications.

Built for smooth regeneration cycle control and reliable long-term operation, this valve efficiently manages service, regeneration, rinse, and bypass functions in water softener systems. Its durable body construction and easy-operating handle make it ideal for continuous water treatment use with minimal maintenance requirements.

ЁЯлЧ Quick Highlights

  • 20 NB top mount multiport valve
  • Sky-facing connection design
  • Designed specifically for water softeners
  • Compact and space-saving construction
  • Smooth manual lever operation
  • Easy installation and maintenance
  • Suitable for domestic and commercial softener systems
  • Compatible with FRP softener vessels
  • 20 NB
  • Top Mount
  • Softener Valve
рдкреВрд░реА рдЬрд╛рдирдХрд╛рд░реА рджреЗрдЦреЗрдВ

ЁЯТз Key Benefits

Compact Softener Valve Design

Ideal for compact water softener installations with limited space availability.

Sky-Facing Connection Layout

Provides convenient vertical pipeline routing and cleaner installation.

Efficient Softener Operation

Allows smooth switching between service, regeneration, rinse, and bypass cycles.

Easy Maintenance

Internal components are easily accessible for servicing and cleaning.

Reliable Long-Term Performance

Designed for continuous softener operation with dependable sealing and flow control.

User-Friendly Operation

Smooth lever mechanism enables quick and convenient mode selection.

ЁЯУМ┬аTechnical Properties

  • Brand: Initiative Engineering
  • Model:┬аS0225TF
  • Valve Type:┬аManual Multiport Valve
  • Application:┬аWater Softener System
  • Mounting Type:┬аTop Mount
  • Connection Orientation:┬аSky Facing

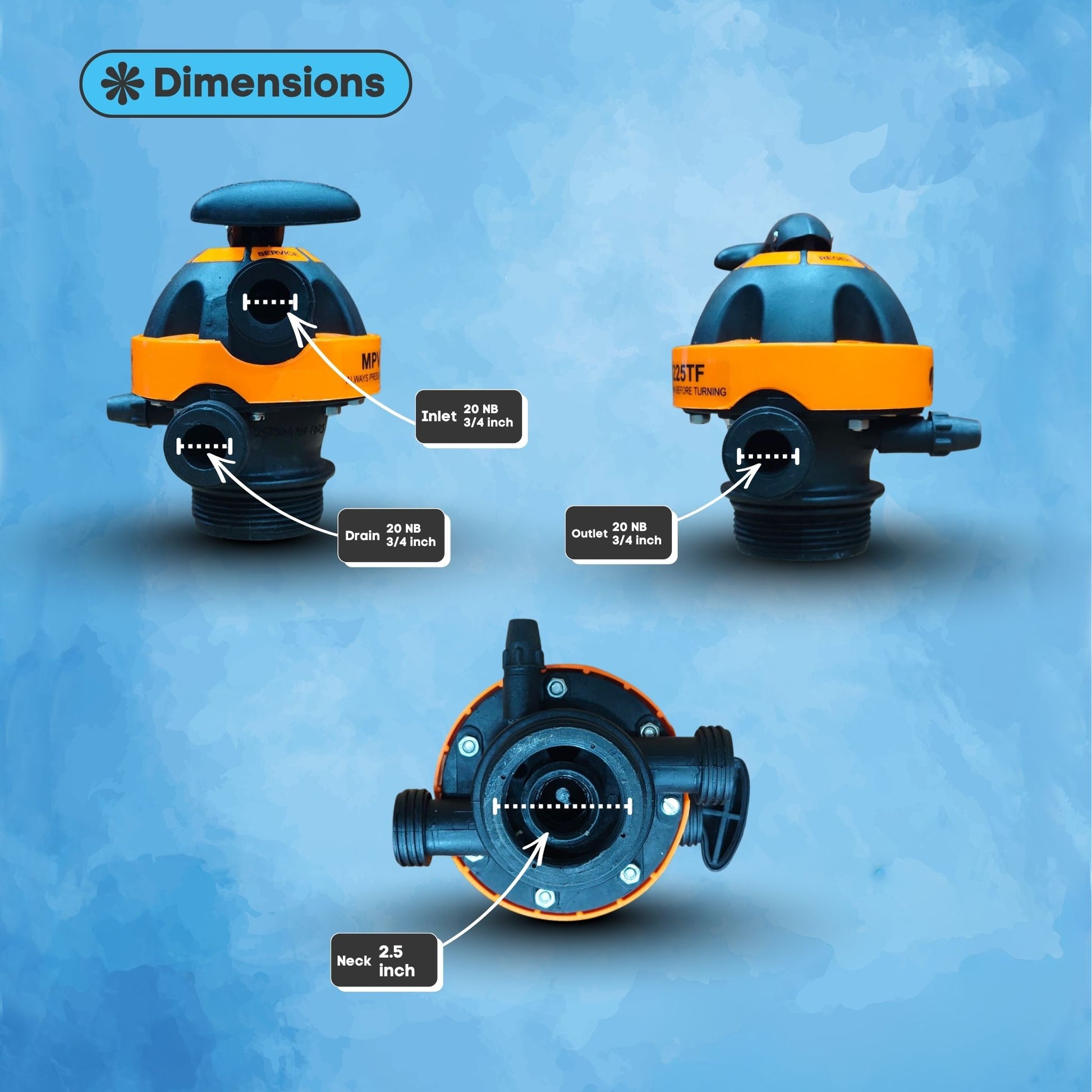

  • Connection Size:┬а20 NB / 3/4 inch
  • Compatible Vessel Type:┬аFRP Softener Vessel
  • Operation Type:┬аManual Lever Operated
  • Application Media:┬аSoftener Resin
  • Installation Orientation:┬аVertical Top Mount
  • Body Construction:┬аHeavy Duty Engineering Plastic
  • Optional Accessories:┬аPressure gauge adaptor, true union joint, drain elbow, S connector

ЁЯМК┬аApplications

  • Domestic Water Softeners
  • Commercial Water Softener Systems
  • Boiler Feed Water Softening
  • Laundry Water Treatment
  • Hard Water Treatment Plants
  • RO Pretreatment Softener Systems
  • Apartment Softener Systems
  • Industrial Water Softening

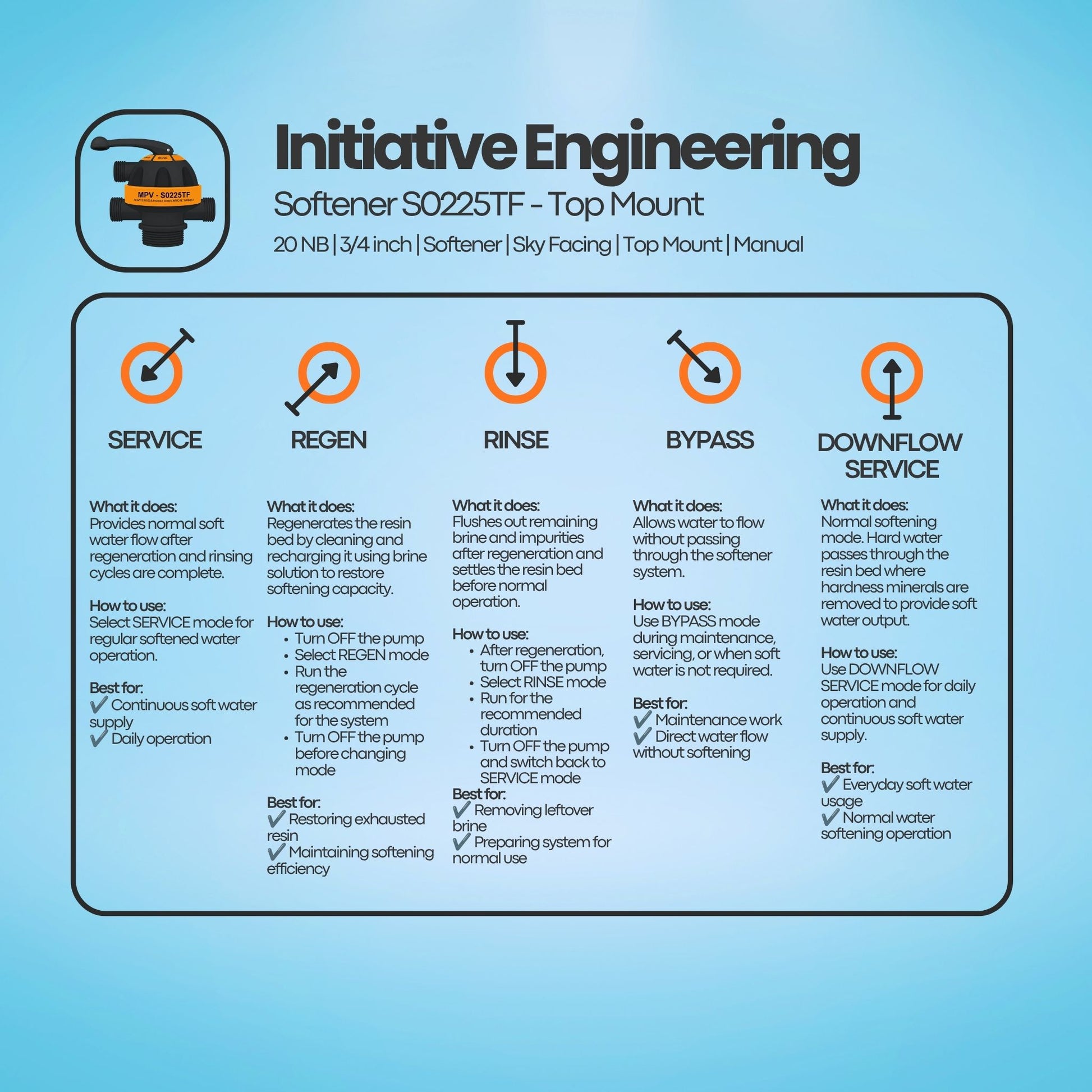

ЁЯОЫя╕П Modes

  • Downflow Service
  • Regeneration (Regen)
  • Bypass
  • Rinse
  • Service

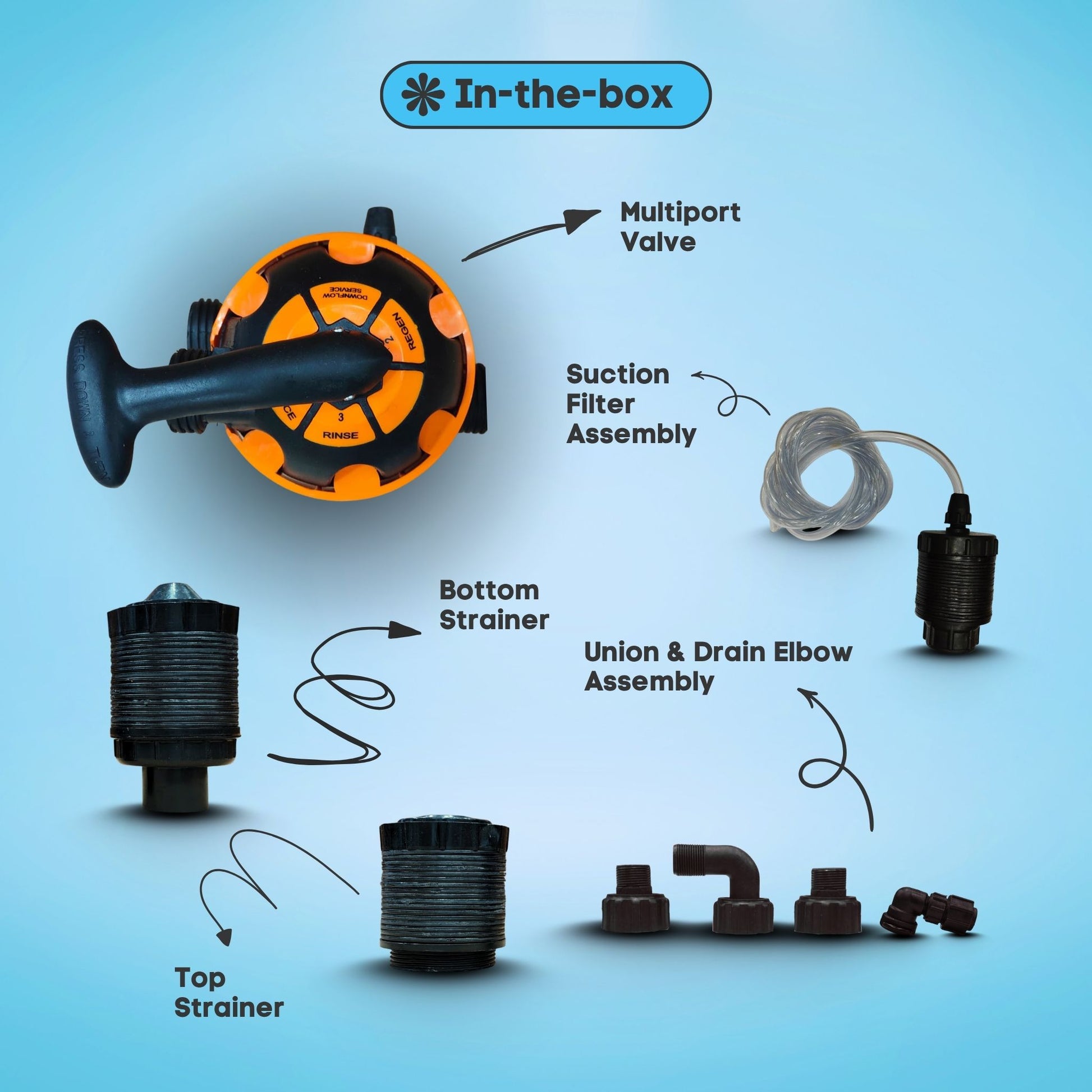

ЁЯУж In-The-Box

  • 20 NB Top Mount Sky Facing Softener Multiport Valve
  • Union Assembly
  • Drain Elbow Assembly
  • Top Strainer (20 NB)
  • Botton Strainer (20 NB)
  • Suction Filter Assembly

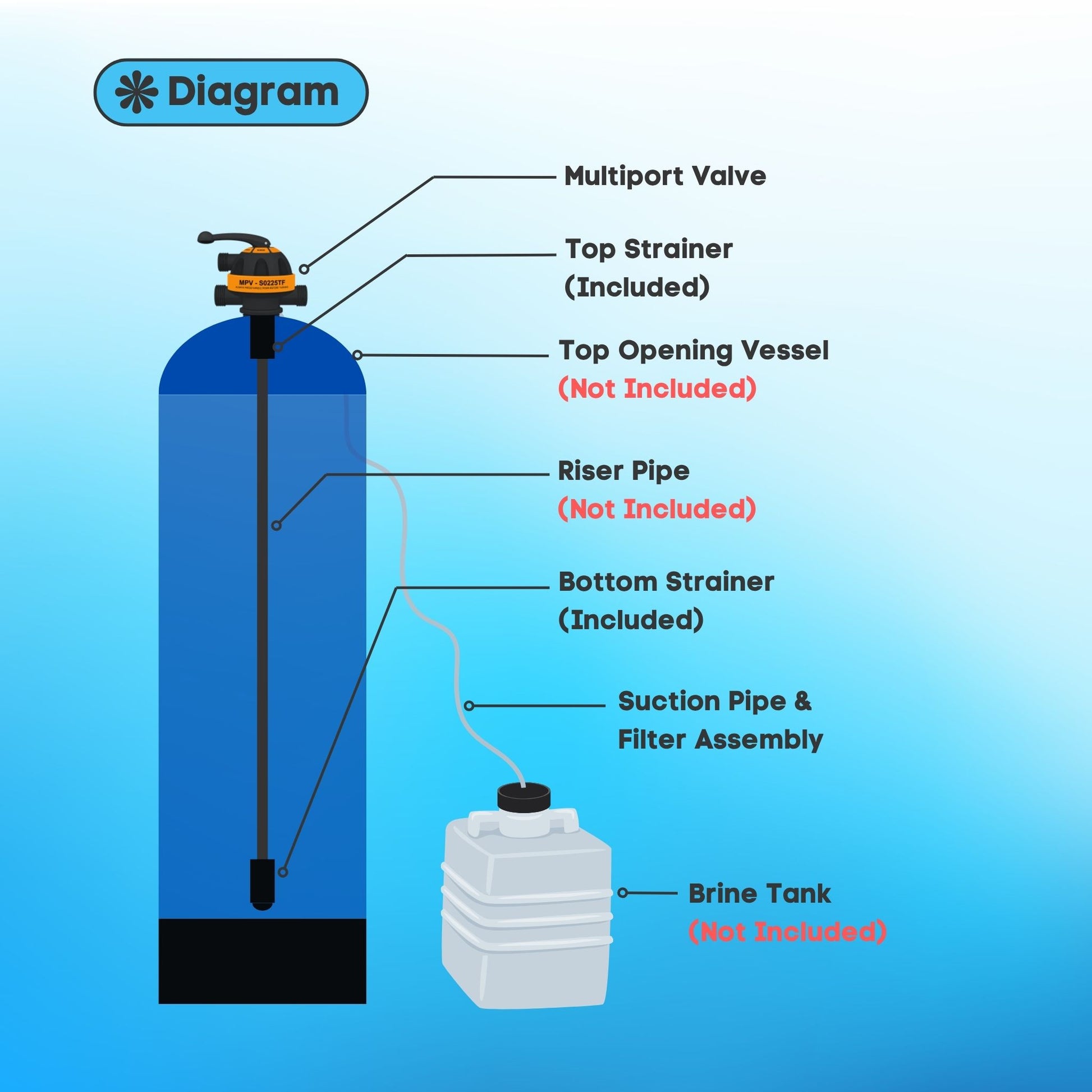

ЁЯФз How To Install

  1. Mount the valve securely on the top opening of the softener vessel.

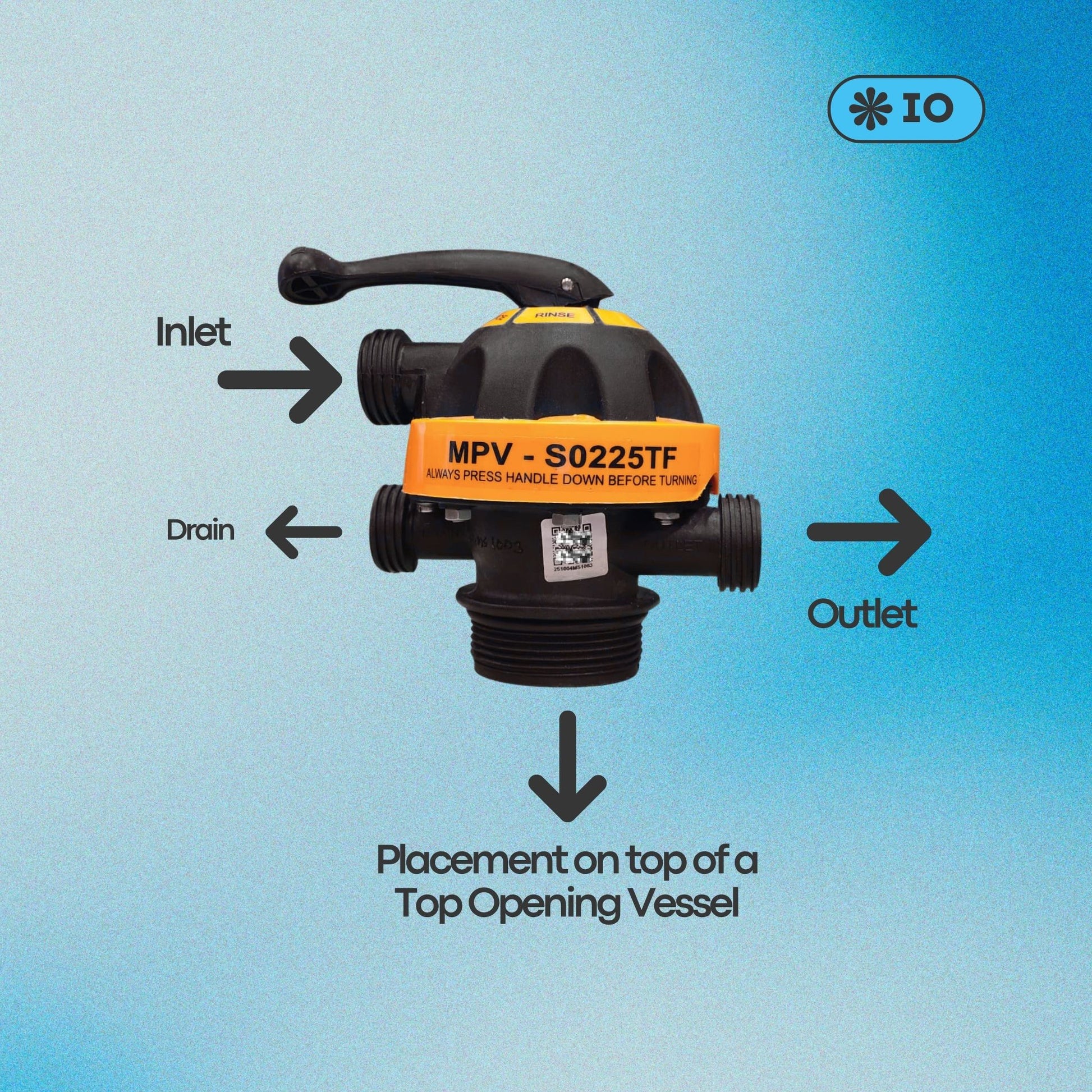

  2. Connect inlet, outlet, and drain pipelines according to valve markings.
  3. Ensure the riser pipe and distributor assembly are properly aligned.
  4. Tighten all threaded joints using suitable sealing tape.
  5. Connect the brine line if required for regeneration operation.
  6. Slowly introduce water into the system and inspect all joints for leakage.
  7. Perform initial regeneration and rinse cycles before placing the softener into service mode.

тЪЩя╕П How It Works

The 20 NB Top Mount Sky Facing Softener Multiport Valve controls water flow through the softener vessel during different operating cycles.

In service mode, hard water passes through the resin bed where hardness-causing minerals such as calcium and magnesium are removed. During regeneration mode, brine solution flows through the resin bed to restore the resinтАЩs ion exchange capacity. Rinse mode flushes remaining brine and settles the resin before returning the system to normal softening operation.

The bypass mode allows water flow while isolating the softener during maintenance or servicing.

тнРя╕П Why Is It Better?

Sky-Facing Connection Design

Provides cleaner vertical piping arrangement and simplified installation.

Compact Space-Saving Construction

Ideal for domestic and compact commercial softener systems.

Smooth Regeneration Control

Ensures reliable switching between softener operating cycles.

Easy Maintenance Access

Designed for convenient servicing and cleaning of internal components.

Durable Long-Life Construction

Built for continuous water softening applications.

Reliable Softener Performance

Maintains efficient water flow and consistent regeneration operation.
