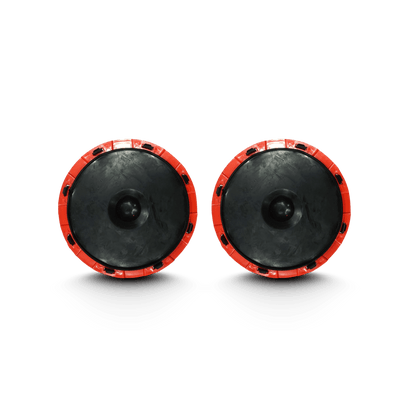

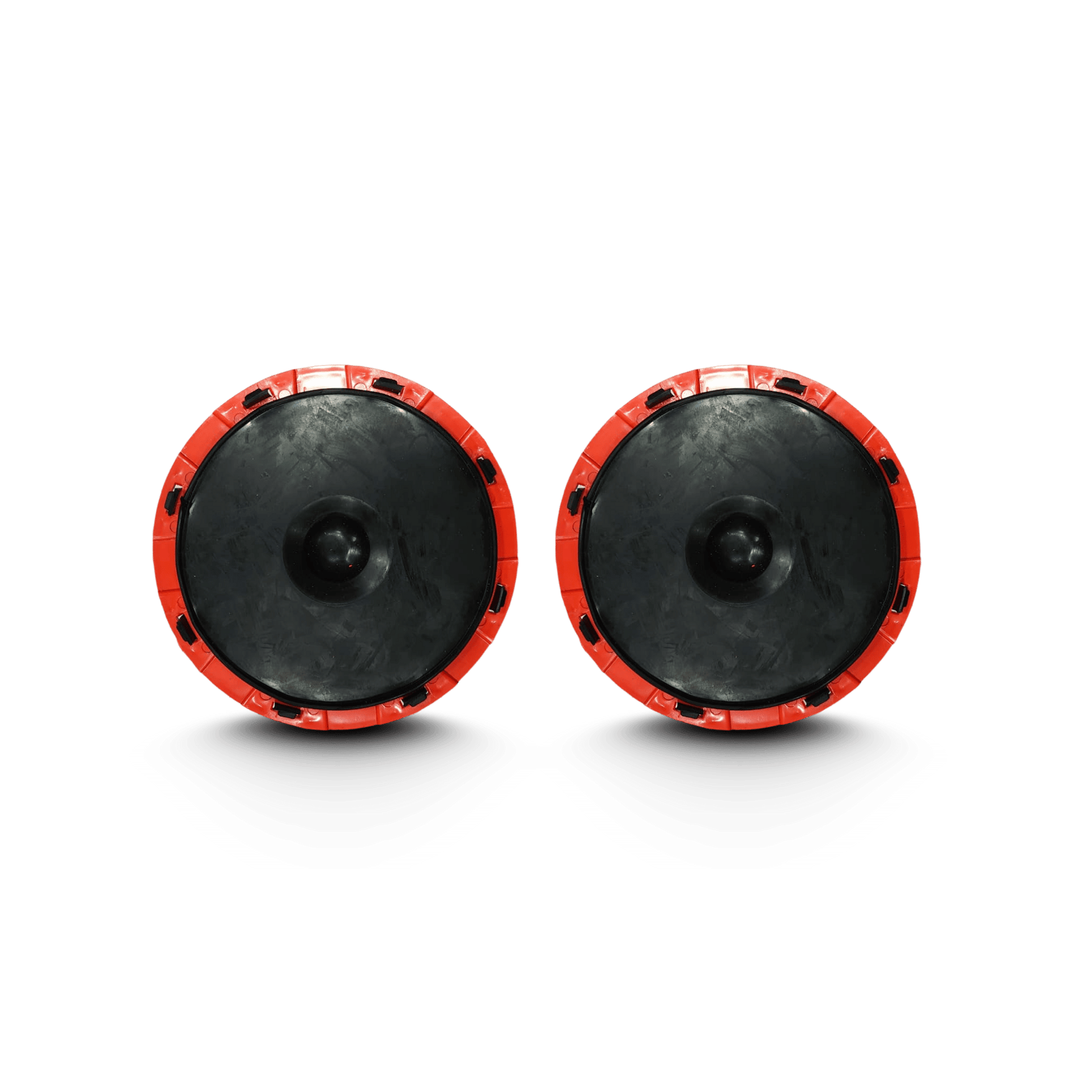

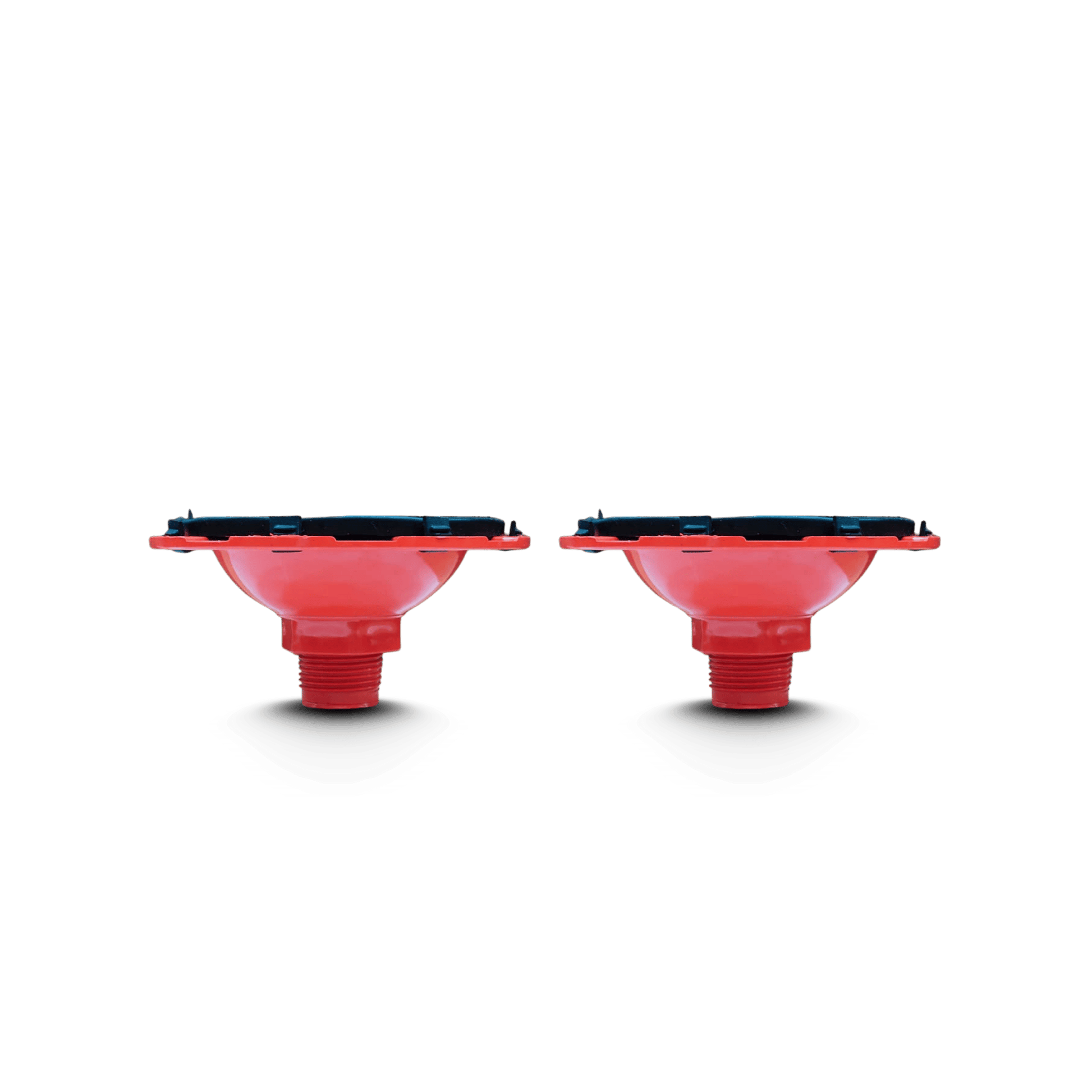

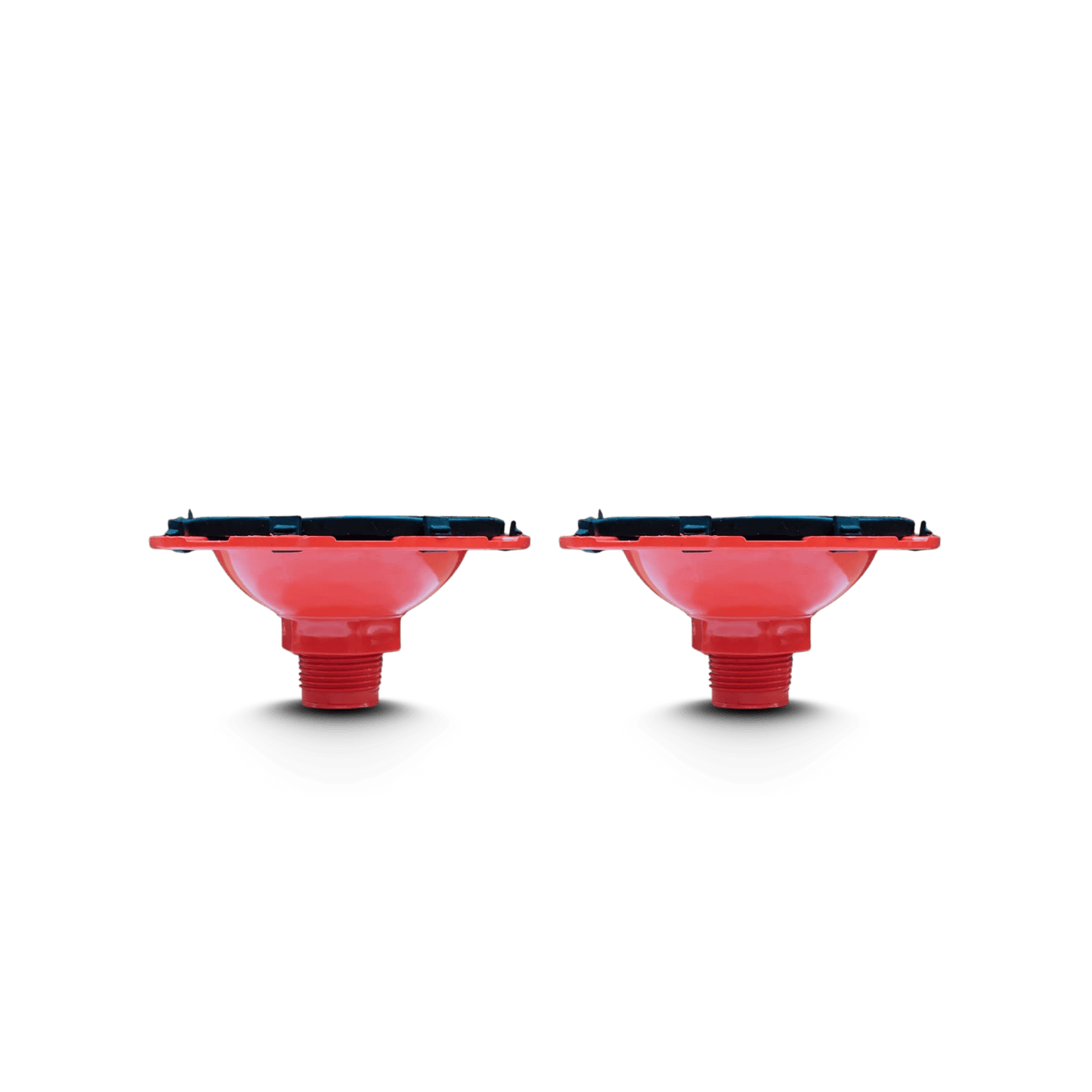

EPDM Fine Bubble Disc Diffuser

EPDM Fine Bubble Disc Diffuser

Rs. 849.00 + GST
Rs. 1,001.82 (Incl. GST)
Rs. 1,239.00 Rs. 849.00 + GST
Rs. 1,001.82 (Incl. GST)
Rs. 424.50 हर एक आइटम
बिक्री बिक गया
शिपिंग शुल्क का हिसाब चेकआउट के समय लगाया जाएगा।
Packaging

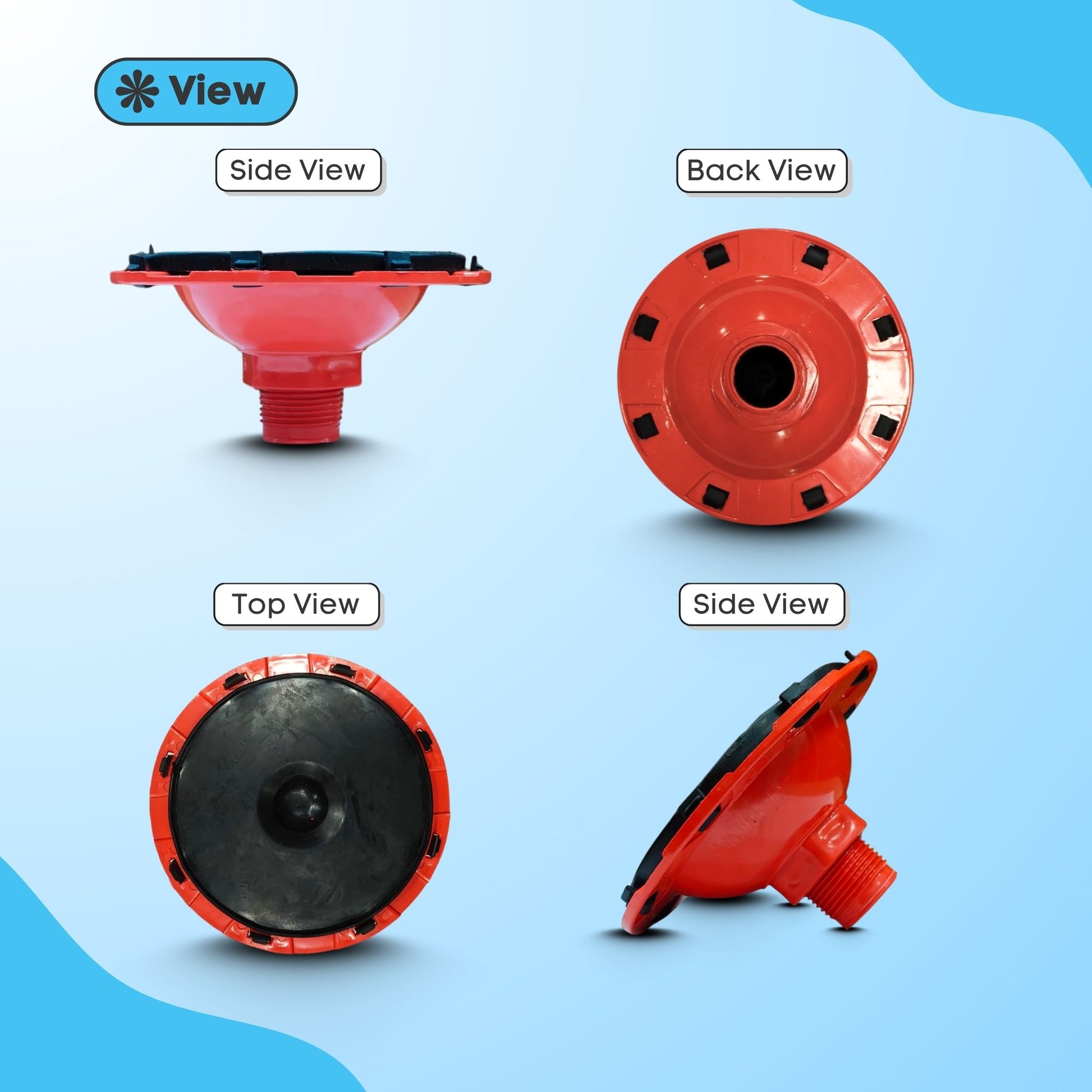

The 6" (150 mm) EPDM Fine Bubble Disc Diffuser is a high-performance aeration device designed to deliver efficient oxygen transfer in biological wastewater treatment systems. It generates thousands of fine air bubbles that maximize oxygen dissolution while minimizing blower energy consumption, making it an ideal choice for Sewage Treatment Plants (STP), Effluent Treatment Plants (ETP), MBBR, SBR, and activated sludge systems.

Manufactured with a durable engineering plastic body and a premium EPDM membrane, the diffuser offers excellent resistance to wear, corrosion, and a wide range of wastewater conditions. The self-sealing membrane prevents sludge backflow when the air supply is stopped, ensuring reliable operation and a longer service life.

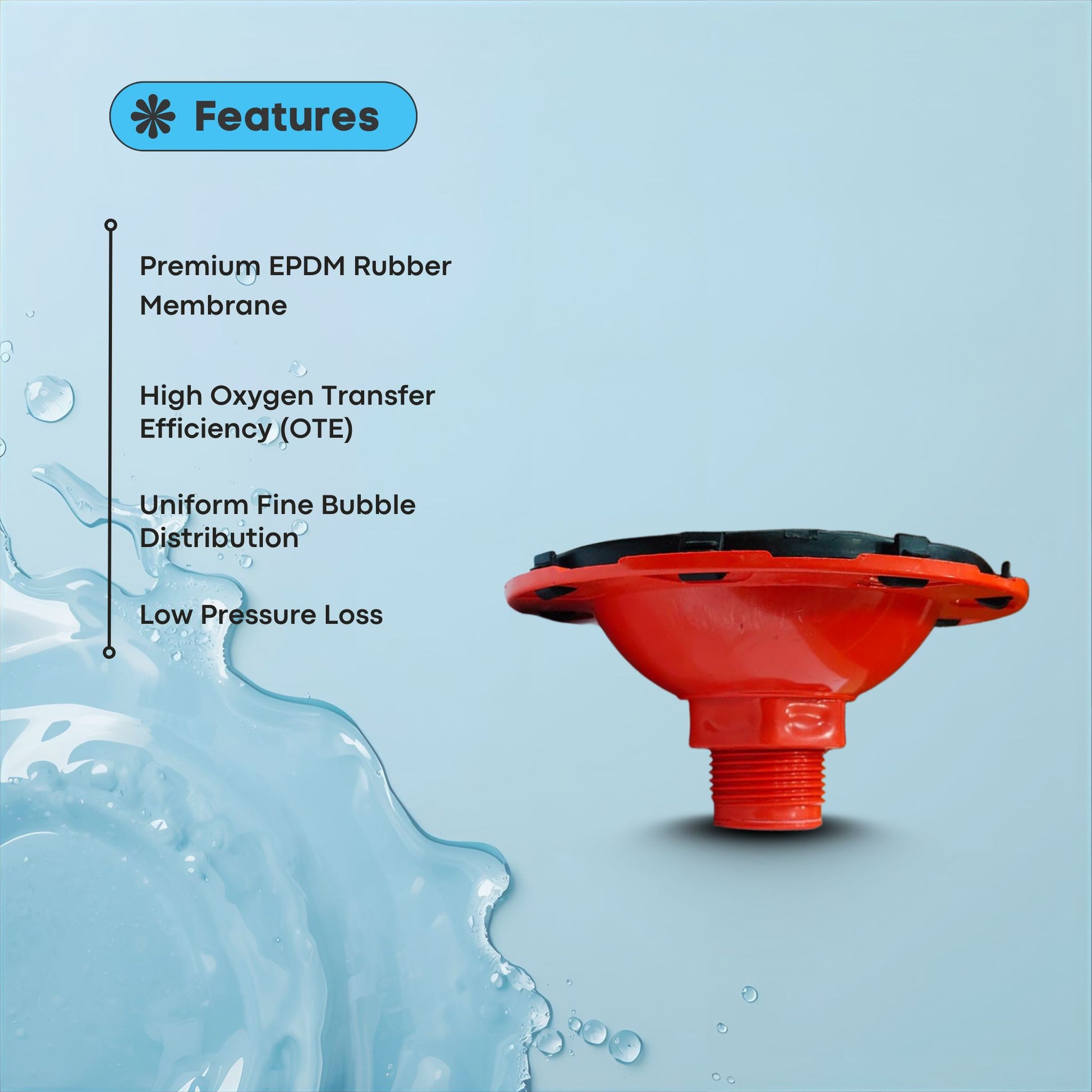

🫗 Quick Highlights

  • 6" (150 mm) Fine Bubble Disc Diffuser
  • Premium EPDM Rubber Membrane
  • High Oxygen Transfer Efficiency (OTE)
  • Uniform Fine Bubble Distribution
  • Low Pressure Loss
  • Energy-Efficient Aeration
  • Self-Sealing Membrane Design
  • Corrosion & Chemical Resistant Construction
  • Easy Installation and Replacement
  • Suitable for Municipal & Industrial Wastewater Treatment
  • Premium EPDM Rubber Membrane
  • High Oxygen Transfer Efficiency (OTE)
  • Uniform Fine Bubble Distribution
पूरी जानकारी देखें

💧 Key Benefits

  • Maximizes oxygen transfer for improved biological treatment.
  • Reduces blower energy consumption through efficient aeration.
  • Produces uniform fine bubbles for better mixing and oxygen distribution.
  • EPDM membrane offers excellent flexibility and long operational life.
  • Self-closing membrane helps prevent sludge backflow and clogging.
  • Durable construction withstands harsh wastewater environments.
  • Low maintenance requirements reduce operating costs.
  • Compatible with most diffuser piping and aeration grid systems.
  • Suitable for continuous-duty operation in STP and ETP applications.

📌 Technical Properties

  • Product Type: Fine Bubble Disc Diffuser

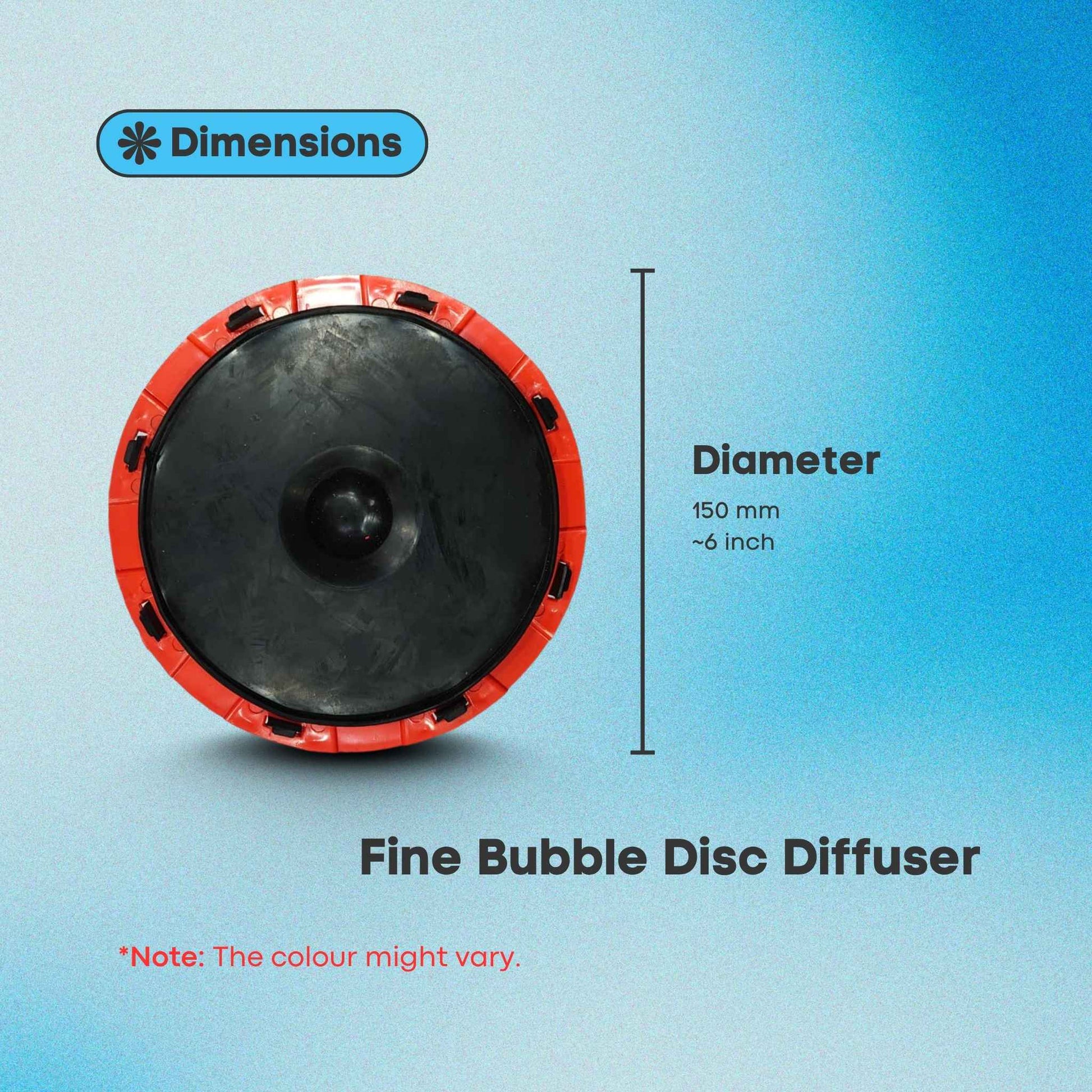

  • Disc Diameter: 6" (150 mm)
  • Membrane Material: EPDM Rubber
  • Body Material: Engineering Plastic (PP/ABS depending on model)
  • Bubble Type: Fine Bubble
  • Connection Type: Male Thread
  • Typical Air Flow Rate: 1–6 Nm³/hr per diffuser
  • Recommended Operating Flow: 2–4 Nm³/hr
  • Operating Temperature: Up to 80°C (depending on application)
  • Application: Biological Aeration Systems
  • Installation: Diffuser Laterals / Aeration Grid System
  • Suitable Media: Municipal & Industrial Wastewater

Specifications may vary slightly depending on the manufacturer and operating conditions.

🌊 Applications

  • Sewage Treatment Plants (STP)
  • Effluent Treatment Plants (ETP)
  • Activated Sludge Process (ASP)
  • Moving Bed Biofilm Reactor (MBBR)
  • Sequencing Batch Reactor (SBR)
  • Equalization Tanks
  • Aeration Basins
  • Industrial Wastewater Treatment Plants
  • Food & Beverage Industries
  • Textile Industries
  • Pharmaceutical Industries
  • Chemical Processing Plants
  • Paper & Pulp Industries
  • Dairy Processing Plants

🔧 Installation & Operating Guidelines

  1. Install the diffuser securely on compatible diffuser pipes or aeration grids.
  2. Ensure the threaded connection is properly tightened to prevent air leakage.
  3. Flush air piping before commissioning to remove debris.
  4. Operate within the recommended airflow range for optimum oxygen transfer.
  5. Maintain adequate blower pressure for uniform bubble distribution.
  6. Periodically inspect the membrane for fouling, scaling, or wear in demanding applications.
  7. Clean or replace the membrane when required to maintain aeration efficiency.

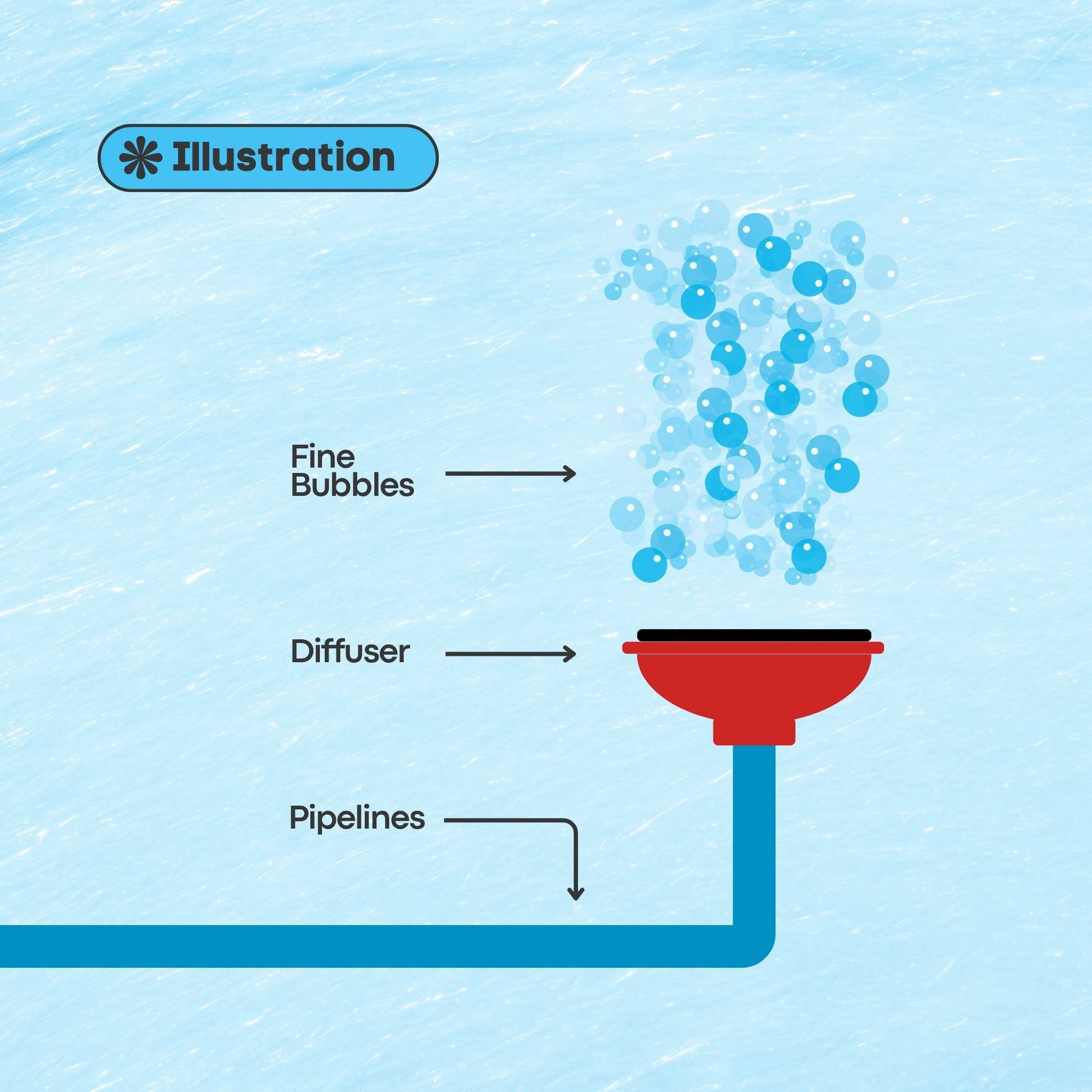

⚙️ How It Works

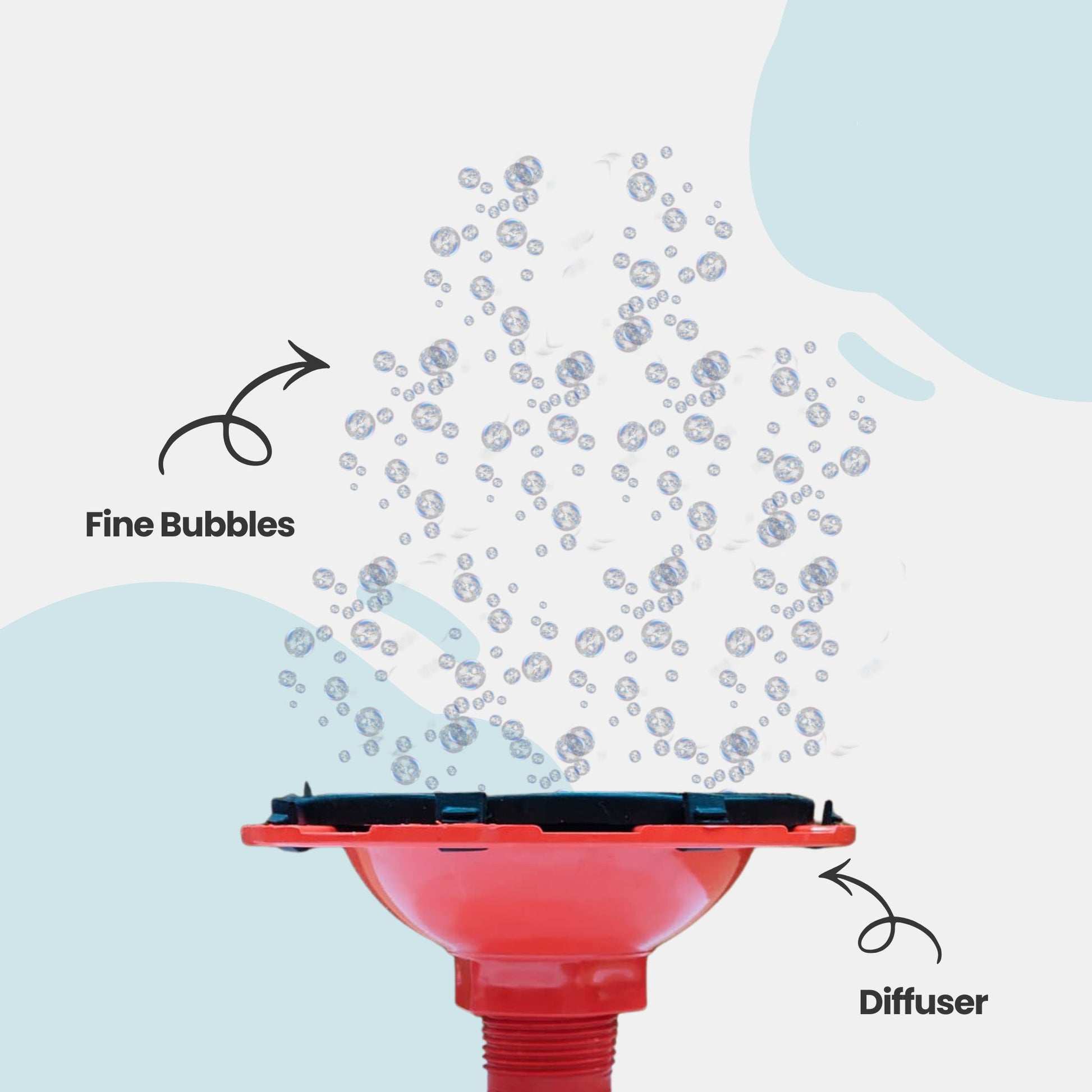

Air supplied by the blower enters the diffuser through the threaded connection and passes beneath the EPDM membrane. As the air pressure increases, precision slits in the membrane open uniformly, releasing thousands of fine air bubbles into the wastewater.

These fine bubbles provide a large surface area for oxygen transfer, allowing aerobic microorganisms to efficiently break down organic contaminants. When the air supply stops, the membrane automatically seals, preventing wastewater and sludge from entering the diffuser.

👍 Advantages

  • High oxygen transfer efficiency
  • Lower operating and energy costs
  • Uniform aeration throughout the tank
  • Improved biological treatment performance
  • Reduced blower power requirement
  • Long-lasting EPDM membrane
  • Self-sealing design minimizes clogging
  • Corrosion-resistant materials for extended service life
  • Easy maintenance and replacement
  • Suitable for new installations and retrofit projects
