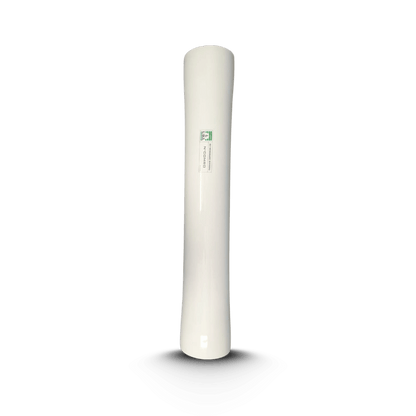

UKL NCOMRO 8040 RO Membrane Housing (End Port, 300 PSI, 1 Element)

UKL NCOMRO 8040 RO Membrane Housing (End Port, 300 PSI, 1 Element)

Rs. 7,899.00 + GST
Rs. 9,320.82 (Incl. GST)
Rs. 13,999.00 Rs. 7,899.00 + GST
Rs. 9,320.82 (Incl. GST)
Sale Sold out
Shipping calculated at checkout.

Engineered for durability and consistent performance, the UKL NCOMRO 8040 FRP Membrane Housing is designed for efficient operation in commercial and industrial RO systems.

Built using advanced filament-wound FRP construction, this housing ensures excellent strength, corrosion resistance, and long service life even under continuous operating pressure.

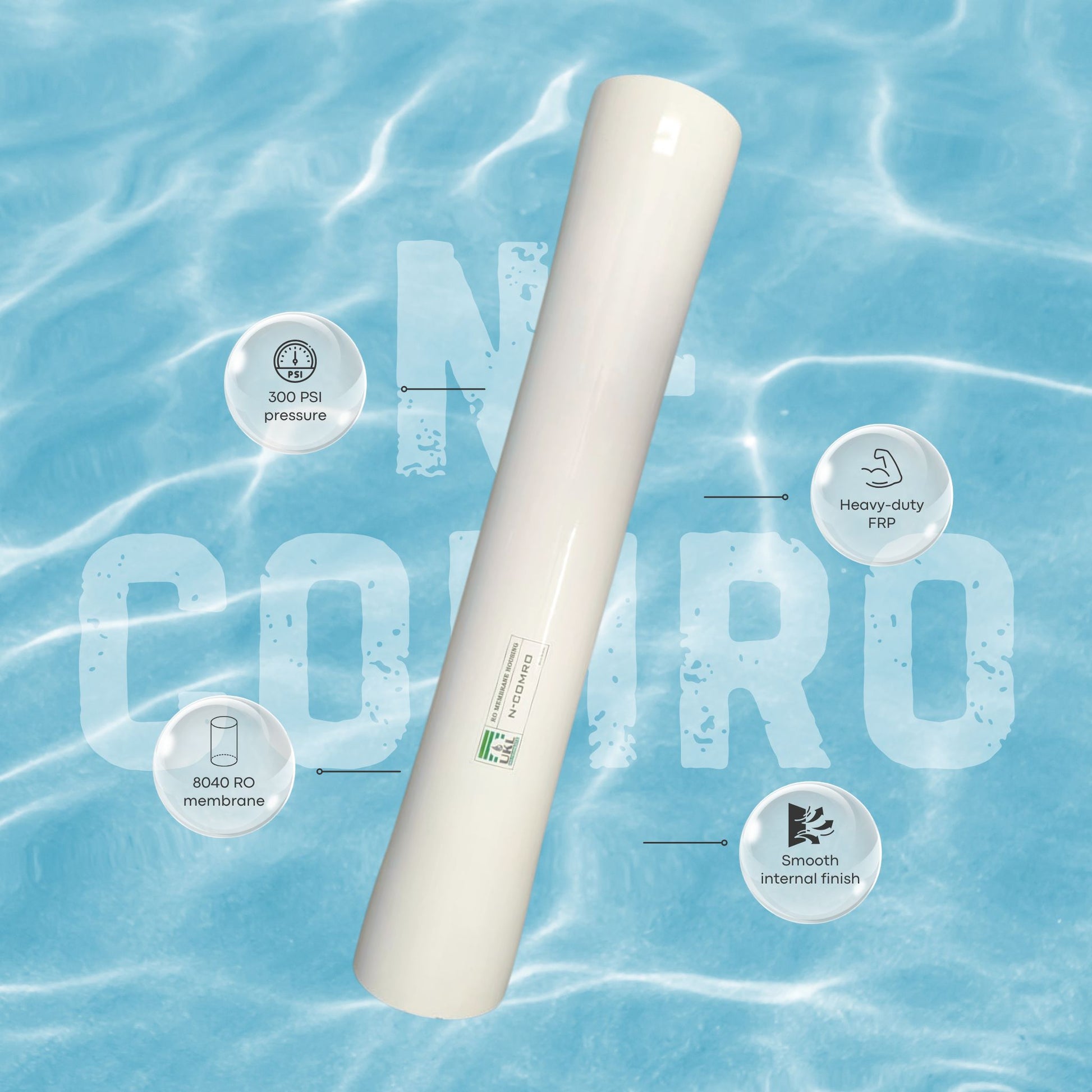

🫗 Quick Highlights

  • Designed for 8040 RO membranes (8” size)
  • End Port configuration for simple and reliable flow
  • 300 PSI pressure rating – ideal for brackish water systems
  • Heavy-duty FRP construction for long life
  • Smooth internal finish for easy membrane handling
  • Suitable for industrial & commercial RO plants
  • Heavy-duty FRP Construction

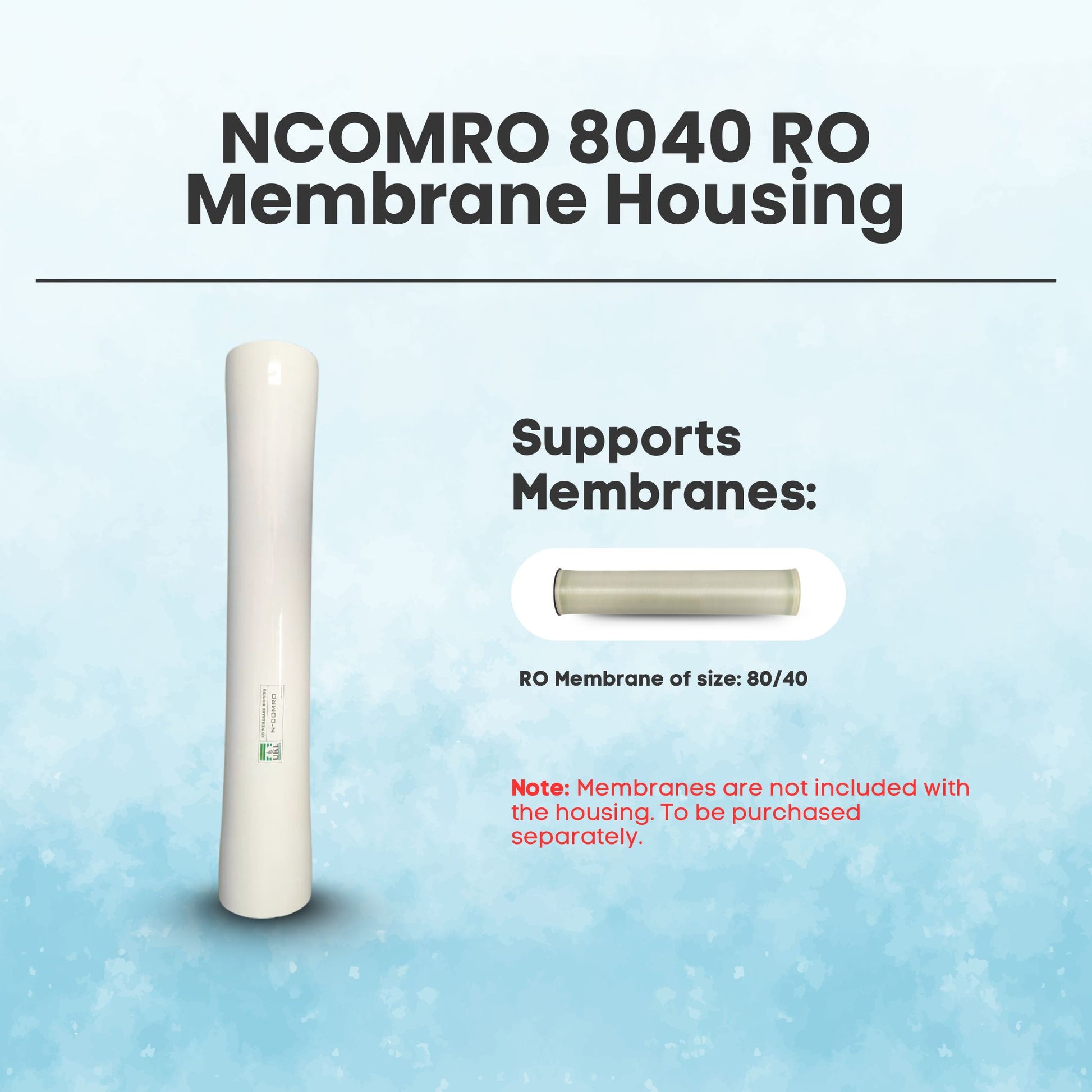

  • Supports 8040 Membranes
  • Upto 300 psi
View full details

💧 Key Benefits

  • High-Strength FRP Body
    Manufactured using precision filament winding for superior durability
  • Mirror-Finish Internal Surface
    Enables quick and damage-free membrane insertion and removal
  • Quick Lock Head Mechanism
    User-friendly design allows easy opening without special tools
  • Advanced Head Seal Design
    Prevents seal rolling and ensures leak-proof performance
  • UV-Resistant Coating
    External polyurethane coating protects against sunlight and environmental damage
  • Robust Head Assembly
    Includes moulded seal plate and aluminium alloy support for stability

📌 Technical Properties

  • Model: UKL NCOMRO 8040
  • Type: End port membrane housing
  • Material: FRP (fibre reinforced polymer) construction

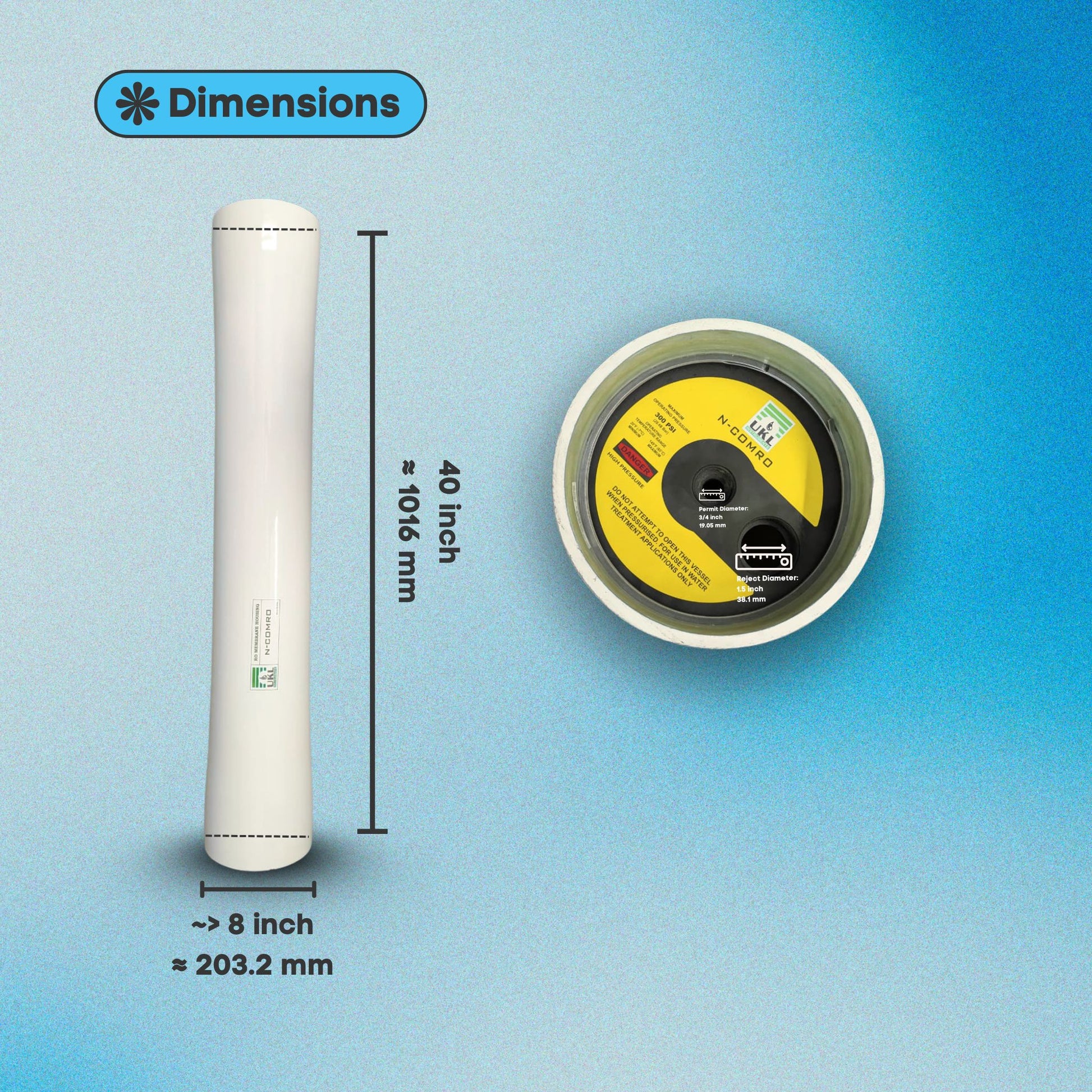

  • Membrane Size: 8040 (8 inch)
  • Element Capacity: Single element housing
  • Operating Pressure: 300 PSI
  • Maximum Temperature: Up to 65°C
  • Minimum Temperature: -7°C
  • Finish: UV-coated exterior for enhanced durability

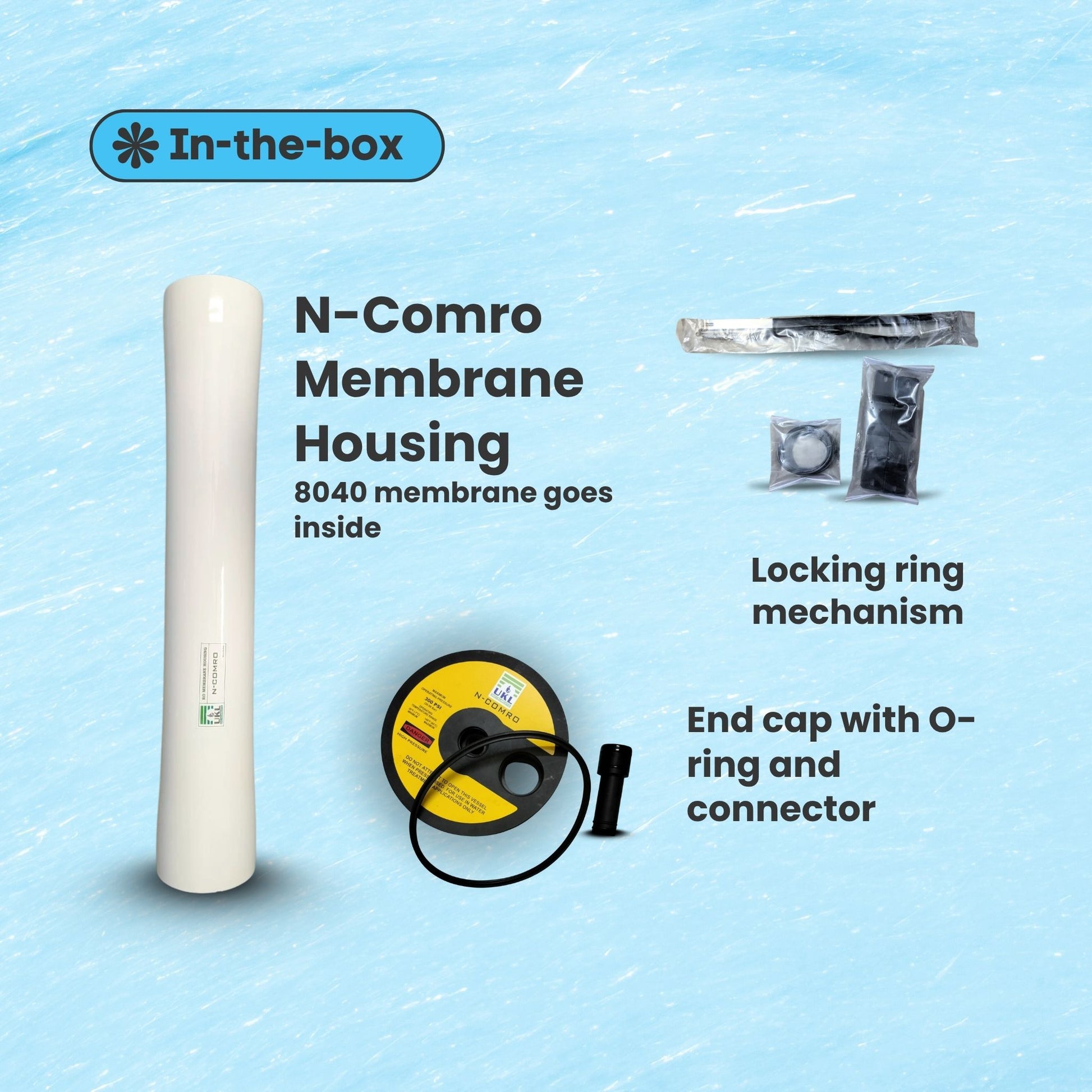

📦 In-the-box

  • FRP Membrane Housing (8040, End Port)
  • Head assembly with sealing system
  • Locking ring mechanism

🌊 Applications

  • Industrial RO plants
  • Commercial water purification systems
  • Drinking water treatment
  • OEM RO skids and packaged plants
  • Process water treatment systems

🔧 How to install

  1. Mount the membrane housing securely on the RO skid using proper clamps/supports
  2. Insert the RO membrane element carefully into the housing
  3. Fit the head assembly with seal properly in position
  4. Tighten the locking ring to secure the head
  5. Connect feed, permeate, and reject piping as per system design
  6. Check all connections and start system at low pressure for testing

❓ How it works

The membrane housing acts as a pressure vessel that holds the RO membrane element.

  • Feed water enters the housing under pressure
  • The RO membrane separates purified water (permeate) from dissolved salts and impurities
  • Clean water exits through the permeate port
  • Rejected impurities are flushed out through the reject line

The strong FRP body ensures safe containment of high-pressure flow while maintaining system efficiency.
