Ion Exchange INDION® 225 H | Strong Acid Cation Exchange Resin

Rs. 8,939.00 + GST

Rs. 10,548.02 (Incl. GST)

~~Rs. 12,969.00~~ Rs. 8,939.00 + GST

Rs. 10,548.02 (Incl. GST)

Rs. 178.78/L

Sale Sold out

Shipping calculated at checkout.

Packaging Weight 50 ltr

Doubts? Call or WhatsApp us at +91 74394 37289

INDION® 225 H is a premium-grade strong acid cation exchange resin supplied in the hydrogen (H⁺) form. Manufactured from a cross-linked styrene divinylbenzene copolymer with sulphonic acid functional groups, it features a gel-type structure that provides high exchange capacity, excellent ion exchange kinetics, and reliable long-term performance.

Designed primarily as the first-stage cation exchanger in demineralization (DM) plants, INDION® 225 H efficiently removes dissolved cations such as calcium, magnesium, sodium, potassium, and iron from water. It is suitable for both co-flow and counter-flow regeneration systems, while special grades are also available for mixed bed and condensate polishing applications.

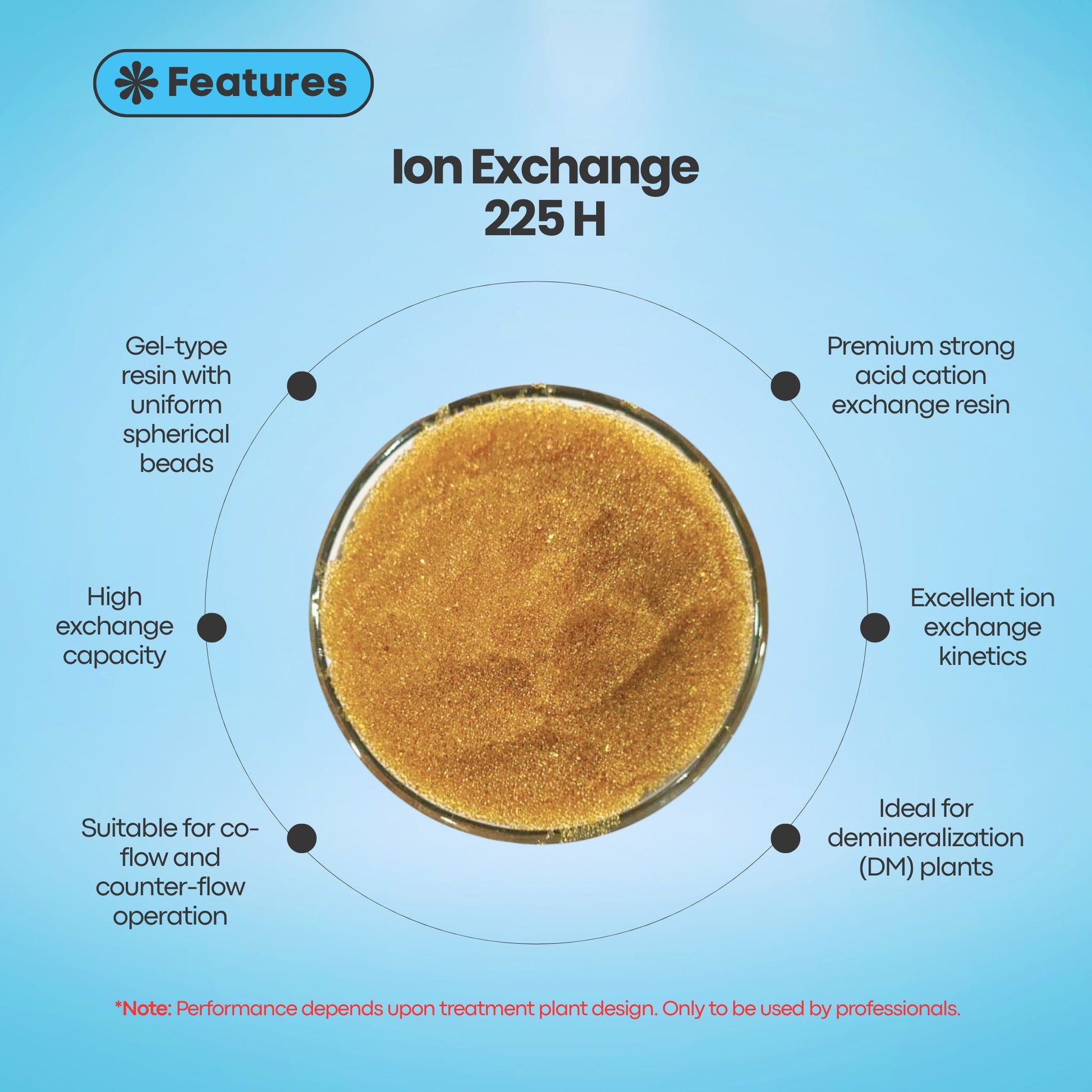

🫗 Quick Highlights

Premium strong acid cation exchange resin
Supplied in hydrogen (H⁺) form
High exchange capacity
Excellent ion exchange kinetics
Ideal for demineralization (DM) plants
Suitable for co-flow and counter-flow operation
Gel-type resin with uniform spherical beads
Wide operating pH range (0–14)
High mechanical and chemical stability
Manufactured by Ion Exchange (India) Ltd.

Hydrogen (H⁺) Form
Cation Exchange
Sulphonic Acid Group

View full details

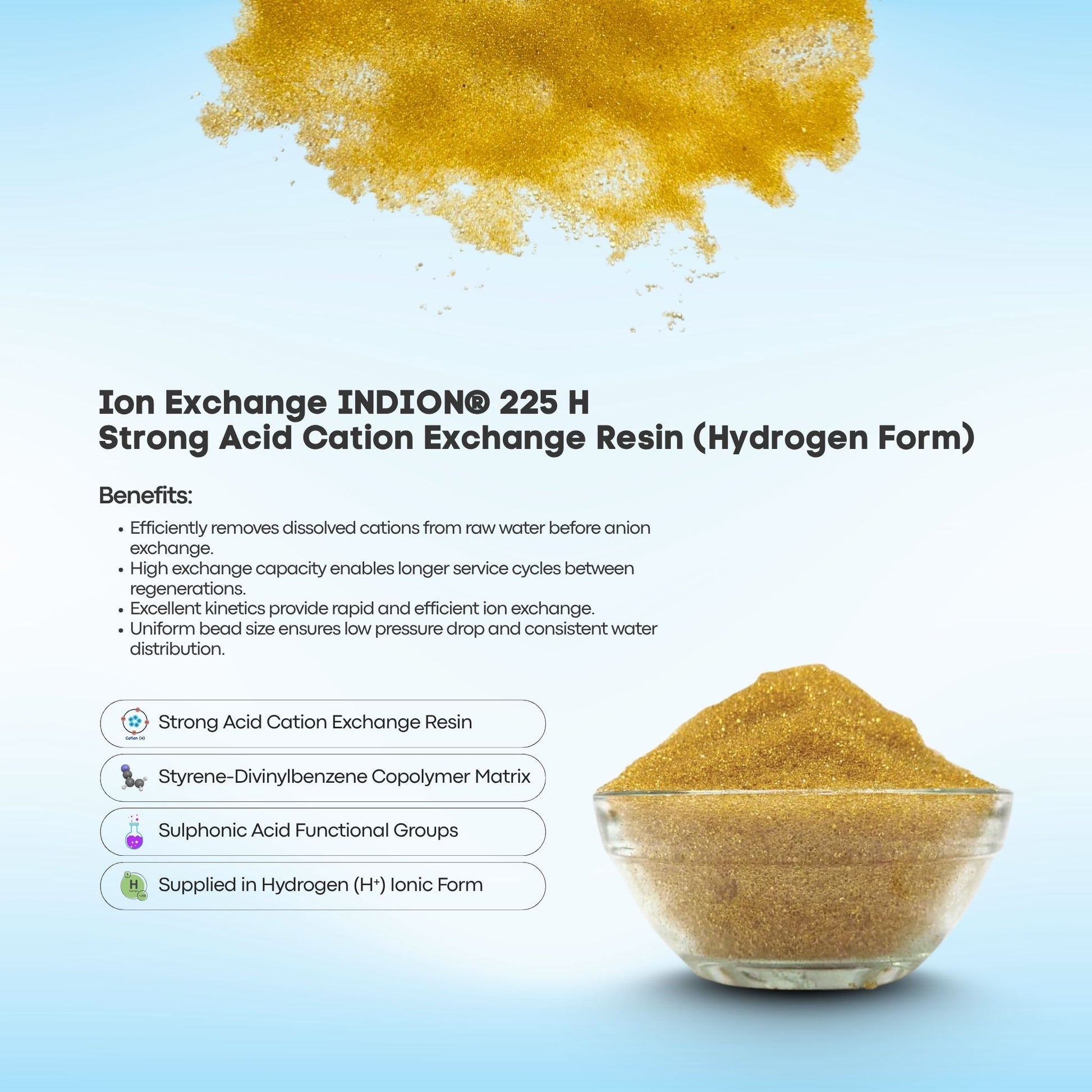

💧 Key Benefits

Efficiently removes dissolved cations from raw water before anion exchange.
High exchange capacity enables longer service cycles between regenerations.
Excellent kinetics provide rapid and efficient ion exchange.
Uniform bead size ensures low pressure drop and consistent water distribution.
Suitable for industrial demineralization and high-purity water production.
Performs reliably under a wide range of operating conditions.
Excellent physical durability minimizes resin attrition during repeated regeneration cycles.
Compatible with both co-flow and counter-flow regeneration systems.

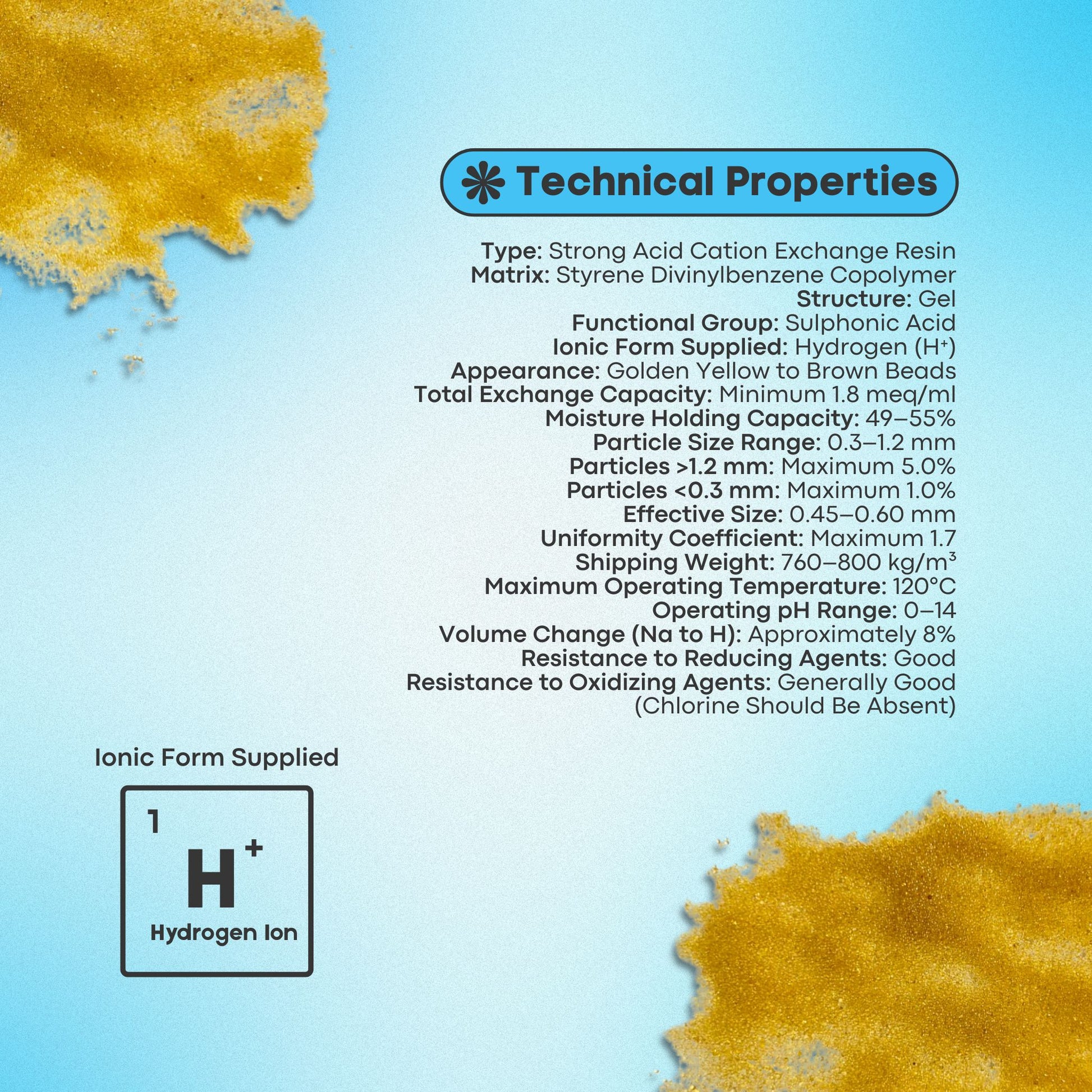

📌 Technical Properties

Type: Strong Acid Cation Exchange Resin
Matrix: Styrene Divinylbenzene Copolymer
Structure: Gel
Functional Group: Sulphonic Acid
Ionic Form Supplied: Hydrogen (H⁺)
Appearance: Golden Yellow to Brown Beads
Total Exchange Capacity: Minimum 1.8 meq/ml
Moisture Holding Capacity: 49–55%
Particle Size Range: 0.3–1.2 mm
Particles >1.2 mm: Maximum 5.0%
Particles <0.3 mm: Maximum 1.0%
Effective Size: 0.45–0.60 mm
Uniformity Coefficient: Maximum 1.7
Shipping Weight: 760–800 kg/m³
Maximum Operating Temperature: 120°C
Operating pH Range: 0–14
Volume Change (Na to H): Approximately 8%
Resistance to Reducing Agents: Good
Resistance to Oxidizing Agents: Generally Good (Chlorine Should Be Absent)

🌊 Applications

Demineralization (DM) Plants
First Stage Cation Exchange Units
Industrial Water Treatment Plants
Boiler Feed Water Preparation
Power Plant Water Treatment
Pharmaceutical Water Systems
Chemical Processing Industries
Electronics Manufacturing
Process Water Purification
Co-flow and Counter-flow Ion Exchange Systems
High Purity Water Production

🔧 Installation & Operating Guidelines

Install the resin in a clean cation exchange vessel with an appropriate underdrain system.
Backwash the resin before initial operation to classify the resin bed and remove fine particles.
Operate within the recommended temperature and pH limits.
Regenerate the exhausted resin using a suitable acid solution as specified by the plant design.
Ensure feed water is free from free chlorine to prevent resin degradation.
Follow the recommended service and regeneration flow rates provided by the equipment manufacturer.
Monitor treated water quality regularly to determine regeneration frequency.
Maintain proper pretreatment to minimize resin fouling and extend service life.

⚙️ How It Works

INDION® 225 H functions through the ion exchange process. As untreated water passes through the resin bed, positively charged ions (cations) such as calcium, magnesium, sodium, potassium, and iron are exchanged with hydrogen (H⁺) ions attached to the resin. The released hydrogen ions combine with anions in the subsequent anion exchange stage to produce highly purified demineralized water.

Once the resin reaches exhaustion, it is regenerated using an acid solution, restoring the hydrogen ions and preparing the resin for the next service cycle.

🥽 Safety & Handling

Store the resin in its original sealed packaging.
Never allow the resin to dry out during storage.
Keep the resin moist using clean demineralized water if required.
Store in a shaded area between 20°C and 40°C.
Handle regeneration acids with appropriate personal protective equipment (PPE).
Prevent contact of acids with skin and eyes.
Follow all standard industrial safety procedures during regeneration and handling.

⚙️ How It Works

INDION® 225 H functions through the ion exchange process. As untreated water passes through the resin bed, positively charged ions (cations) such as calcium, magnesium, sodium, potassium, and iron are exchanged with hydrogen (H⁺) ions attached to the resin. The released hydrogen ions combine with anions in the subsequent anion exchange stage to produce highly purified demineralized water.

Once the resin reaches exhaustion, it is regenerated using an acid solution, restoring the hydrogen ions and preparing the resin for the next service cycle.

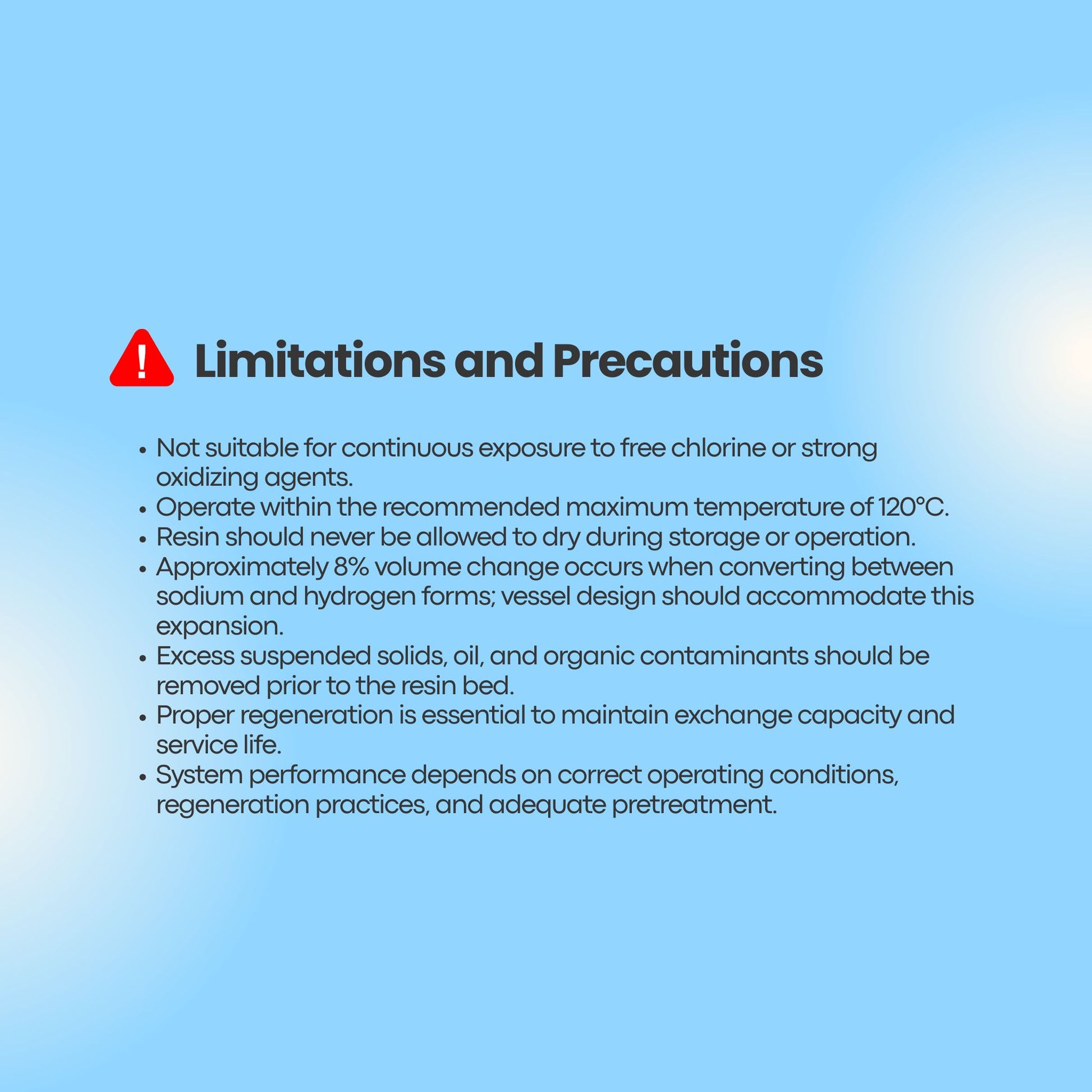

⚠️ Limitations and Precautions

Not suitable for continuous exposure to free chlorine or strong oxidizing agents.
Operate within the recommended maximum temperature of 120°C.
Resin should never be allowed to dry during storage or operation.
Approximately 8% volume change occurs when converting between sodium and hydrogen forms; vessel design should accommodate this expansion.
Excess suspended solids, oil, and organic contaminants should be removed prior to the resin bed.
Proper regeneration is essential to maintain exchange capacity and service life.
System performance depends on correct operating conditions, regeneration practices, and adequate pretreatment.
