Gopani Clarywound Ultra String Wound Filter Cartridge – Jumbo, 5 Micron

Rs. 1,229.00 + GST

Rs. 1,450.22 (Incl. GST)

~~Rs. 1,999.00~~ Rs. 1,229.00 + GST

Rs. 1,450.22 (Incl. GST)

Rs. 614.50 each

Sale Sold out

Shipping calculated at checkout.

Packaging Size 2 pcs 15 pcs

Doubts? Call or WhatsApp us at +91 74394 37289

The Gopani Clarywound Ultra 4.33 x 20" Jumbo String Wound Cartridge is a high-capacity, value-for-money sediment filter designed for high flow and heavy turbidity applications. Manufactured using premium polypropylene yarn and core, this cartridge offers true gradient density, high dirt-holding capacity, and reliable protection for downstream equipment in commercial and industrial filtration systems.

🫗 Product Highlights

Jumbo size (4.33 x 20") for higher flow rate and larger filtration surface
5 Micron retention rating for effective removal of sand, silt, rust & suspended solids
Manufactured using high-quality polypropylene yarn and PP core
True gradient density structure achieved through modern manufacturing processes
High dirt-holding capacity for extended service life
Strong mechanical stability for consistent performance
DOE (Double Open End) configuration – fits standard jumbo housings
Optimized production ensures accurate and consistent micron ratings

💧 High-Capacity Filtration You Can Trust

Choose the Gopani Clarywound Ultra 5 Micron Jumbo Cartridge for powerful sediment removal, longer service life, and dependable protection of your filtration system.

String Wound
4-4.5 inch Jumbo
5 micron

View full details

💧 Key Benefits

Excellent dirt-holding capacity for longer replacement cycles
Protects RO membranes, pumps, valves & process equipment
Suitable for raw water and wastewater filtration
Cost-effective solution for commercial and industrial use
Performs reliably under continuous operation
Broad chemical compatibility for multiple applications

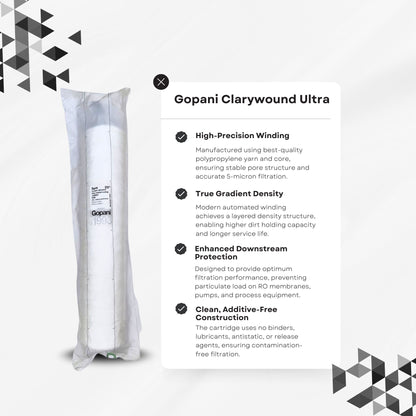

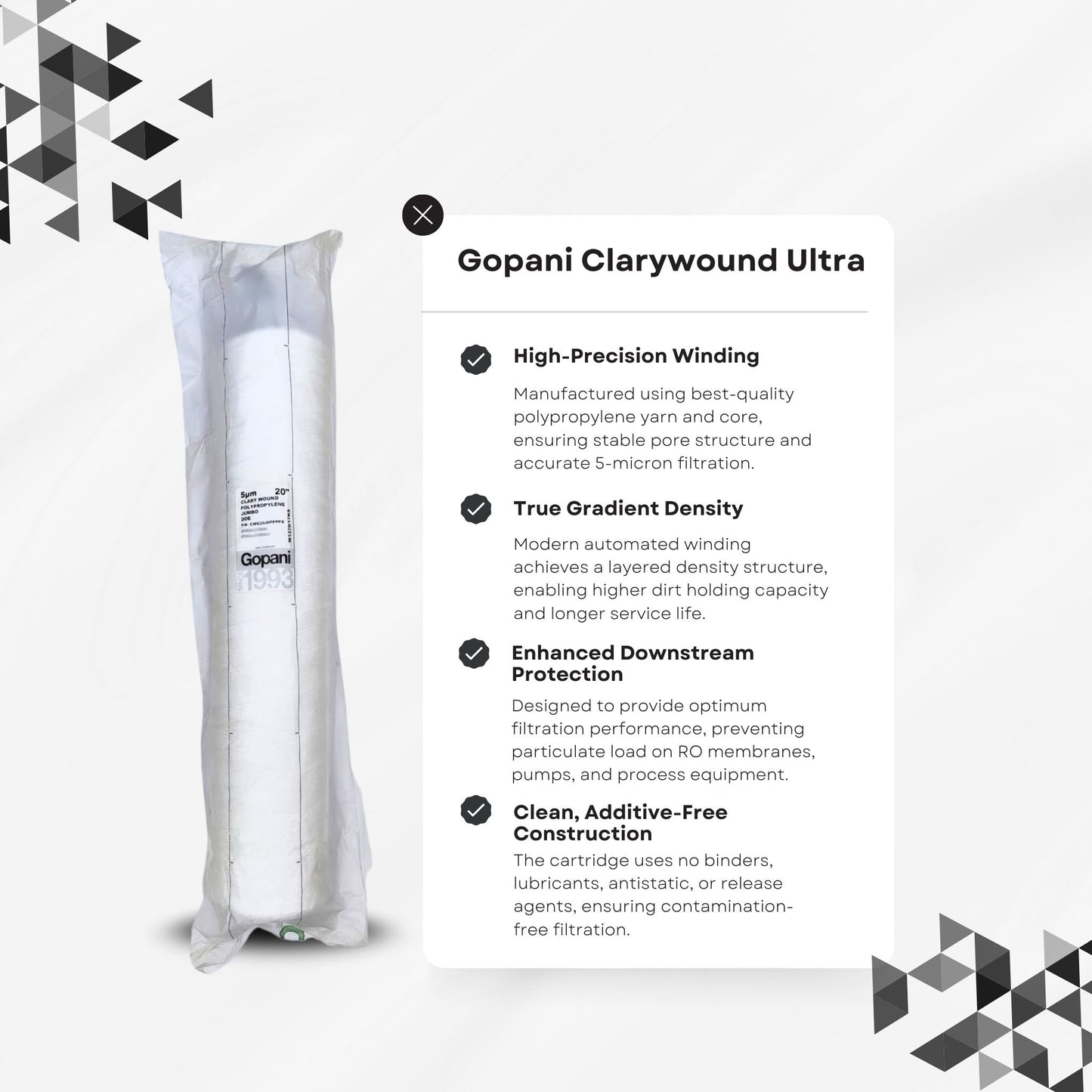

💧 Clarywound Ultra String Wound Technology

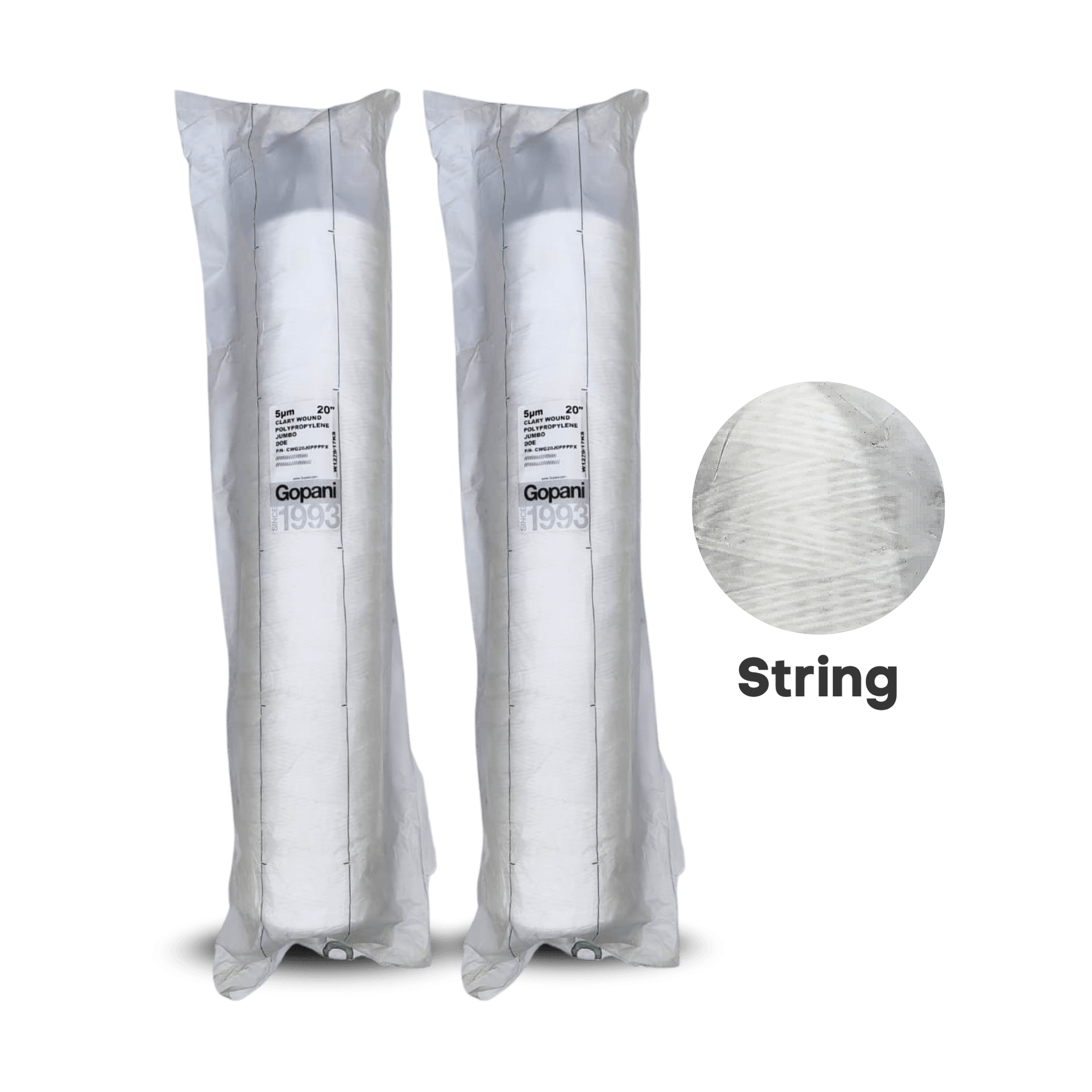

Clarywound Ultra cartridges are engineered with precision string winding, creating a true gradient density structure—coarser filtration on the outer layers and tighter filtration toward the core.

This design:

Improves sediment capture efficiency
Delays clogging
Maintains stable flow over time
Ensures optimum protection of downstream equipment

The jumbo outer diameter significantly increases filtration area, making it ideal for high-volume and high-sediment water sources.

📌 Technical Properties

Series: Gopani Clarywound Ultra
Type: String Wound Sediment Filter

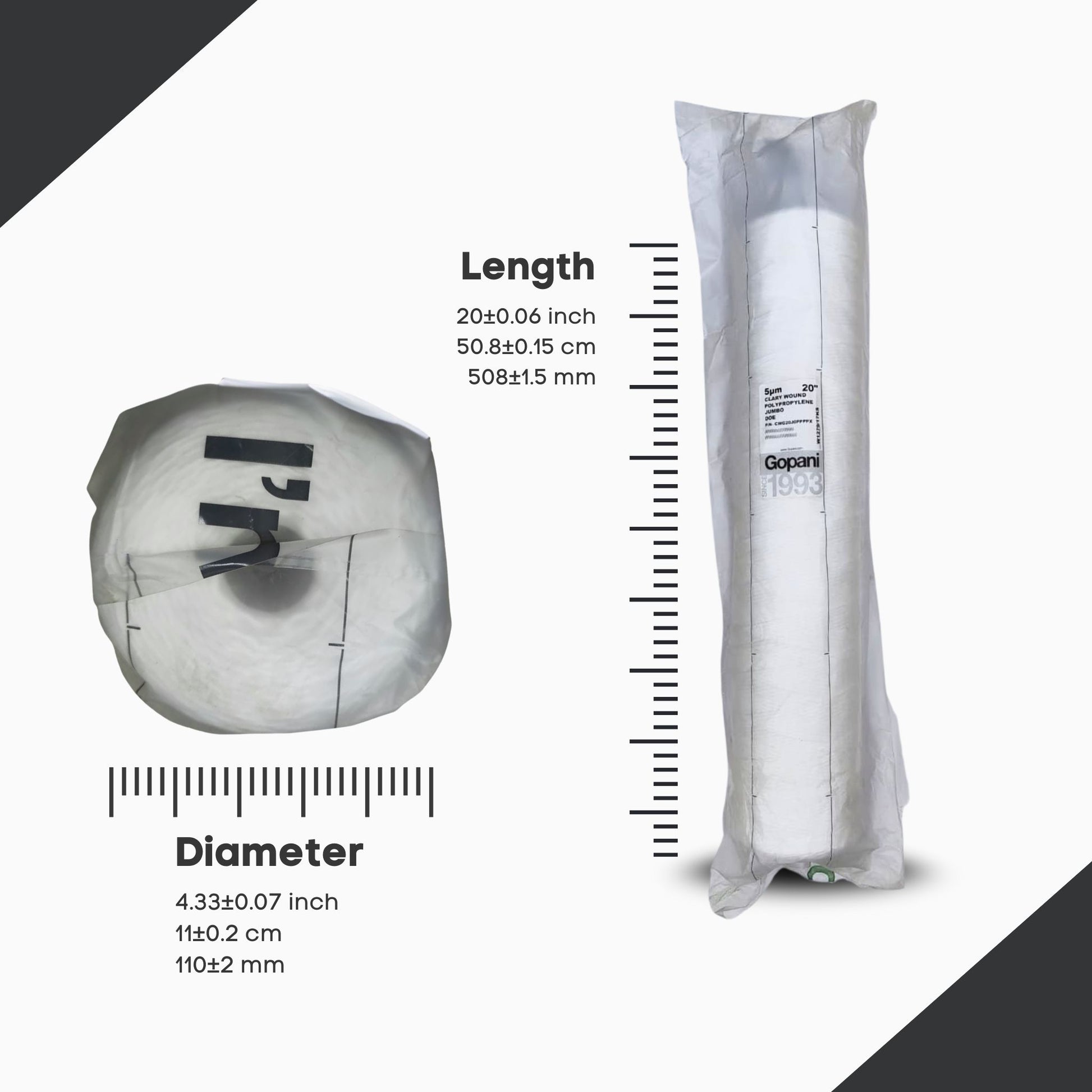

Size: 4.5 × 20 inch (Jumbo)
Micron Rating: 5 micron filtration
Filter Media: Polypropylene yarn
Core Material: Polypropylene
Outer Diameter (OD): 110 mm (jumbo)
Inner Diameter (ID): 27.5 ± 0.5 mm
Surface Area: ≥ 0.94 ft² per 10-inch length (jumbo)
Recommended Change-out Pressure Drop: 0.12 MPa (1.2 bar)
Maximum Operating Temperature: 70°C (158°F)
End Fitting: DOE (no end cap)
Additives / Binders: None

🌊 Applications

Water treatment
Wastewater treatment
Electroplating
Power generation
Chemical processing
Pharmaceutical water systems
RO and industrial pre-filtration

🕒 Replacement Frequency

Every 1–3 months depending on water quality and usage.

🔧 How To Install

Select the Right Cartridge: Choose the correct micron rating (e.g., 1, 5, 10 micron) and size (10”, 20”, etc.) based on your filtration requirement.
Insert into Filter Housing: Open the filter housing and place the cartridge properly inside. Ensure the O-ring and sealing are correctly aligned to avoid leakage.
Tighten the Housing: Close and tighten the housing firmly using a housing wrench if required.
Flush Before Use: Run water for 5–10 minutes to flush out any loose particles or carbon fines (especially for carbon cartridges).
Regular Replacement: Replace the cartridge after pressure drop increases or after its recommended life (typically 1–3 months depending on water quality).

⚙️ How It Works

Filter cartridges remove impurities from water through physical and/or chemical filtration processes.

Sediment Filtration (Physical Removal): PP spun and pleated cartridges trap sand, dirt, rust, and suspended particles based on micron size.
Depth Filtration: In depth filters (like spun cartridges), water passes through multiple layers, capturing particles throughout the thickness of the filter.
Surface Filtration: Pleated or string-wound cartridges capture particles mainly on the outer surface, allowing easy cleaning and higher flow.
Activated Carbon Action (Chemical Filtration): Carbon cartridges adsorb chlorine, odor, color, and organic impurities, improving taste and smell.
Multi-Stage Protection: Cartridges act as a pre-filtration stage, protecting RO membranes and other equipment from clogging and damage.

FREQUENTLY ASKED QUESTIONS

Do you provide installation services?

Yes. We install RO plants, softeners, iron removal filters, ETP/STP systems, and all types of domestic & industrial water treatment plants across India.

Do you offer GST invoices?

Yes. Every order comes with a100% GST-compliant invoice, suitable for dealers, resellers, and industrial use.

How do I know which chemical or filter is suitable for my water?

You can share your raw water report, TDS, or problem description. Our technical team will recommend the correct chemical, membrane, filter media, or system.

Please connect with us from Contact Us.

Can I speak to someone before placing an order?

Yes, you can contact us directly via phone, email, or WhatsApp for product guidance or bulk pricing.
