Gopani Clarywound Ultra String Wound Cartridge – 2.5 x 20" Slim, 5 Micron

Rs. 339.00 + GST

Rs. 400.02 (Incl. GST)

~~Rs. 999.00~~ Rs. 339.00 + GST

Rs. 400.02 (Incl. GST)

Rs. 169.50 each

Sale Sold out

Shipping calculated at checkout.

Packaging Size 2 pcs 25 pcs

Doubts? Call or WhatsApp us at +91 74394 37289

The Gopani Clarywound Ultra 2.5 x 20" String Wound Cartridge is a high-precision, value-for-money sediment filter engineered to deliver strong dirt-holding capacity and reliable filtration. Manufactured using premium polypropylene yarn and core, it provides true gradient density, ensuring efficient removal of sand, silt, rust, and suspended impurities.

🫗 Product Highlights

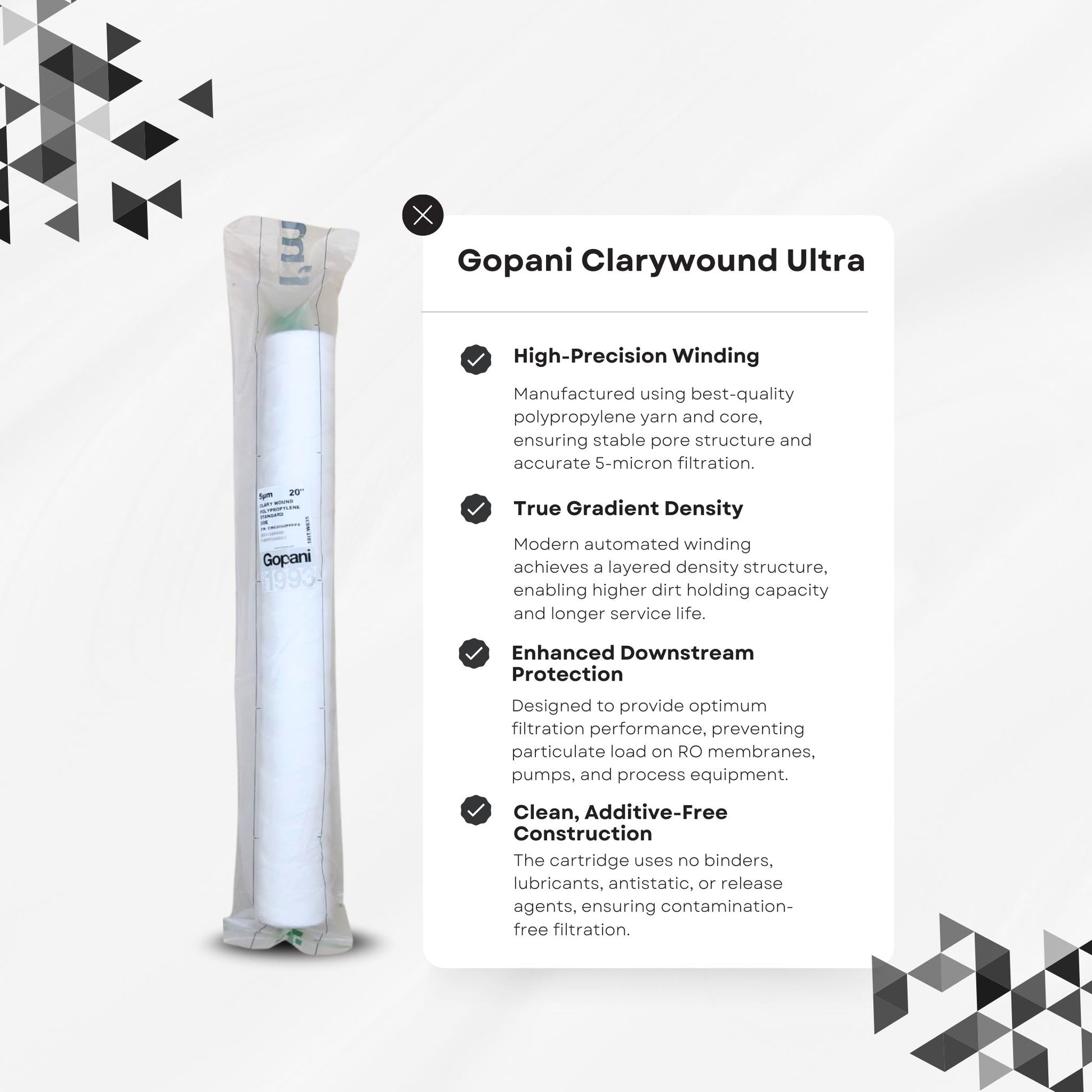

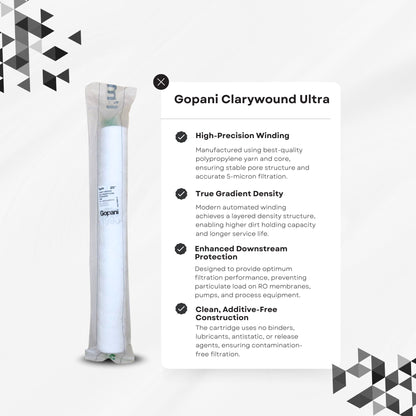

High-precision string wound construction using high-quality polypropylene yarn
True gradient density design for efficient filtration and long service life
5 Micron rating—ideal for sediment, silt, rust flakes & coarse impurities
Manufactured using modern automated processes for consistent quality & accurate micron rating
Strong mechanical stability and suitable for high-flow systems
Designed to offer optimum protection for downstream RO membranes & equipment
DOE (Double Open End) fitting – universal compatibility
Slim 20" size suitable for RO plants & commercial filtration

💧 Choose a Cartridge Built for Strength & Reliability

The Gopani Clarywound Ultra 2.5 x 20" String Wound Cartridge ensures powerful sediment control and long-term protection for your water filtration system.

String Wound
2.5 x 20 inch String
5 micron

View full details

💧 Key Benefits

Captures a wide range of suspended solids with high dirt-holding capacity
Protects RO membranes, pumps, valves, and equipment from clogging
Reduces turbidity and improves water clarity
True gradient winding ensures longer life and delayed clogging
Cost-effective
Chemical compatibility across water, wastewater, plating solutions & process liquids

💧 Clarywound Ultra String Wound Technology

Clarywound Ultra cartridges are engineered with precision string winding, creating a true gradient density structure—coarser filtration on the outer layers and tighter filtration toward the core.

This design:

Improves sediment capture efficiency
Delays clogging
Maintains stable flow over time
Ensures optimum protection of downstream equipment

The jumbo outer diameter significantly increases filtration area, making it ideal for high-volume and high-sediment water sources.

📌 Technical Properties

Series: Gopani Clarywound Ultra
Type: String Wound Sediment Filter

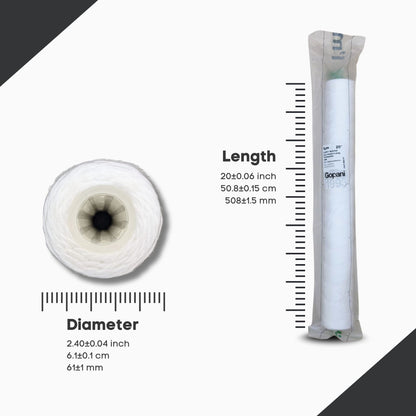

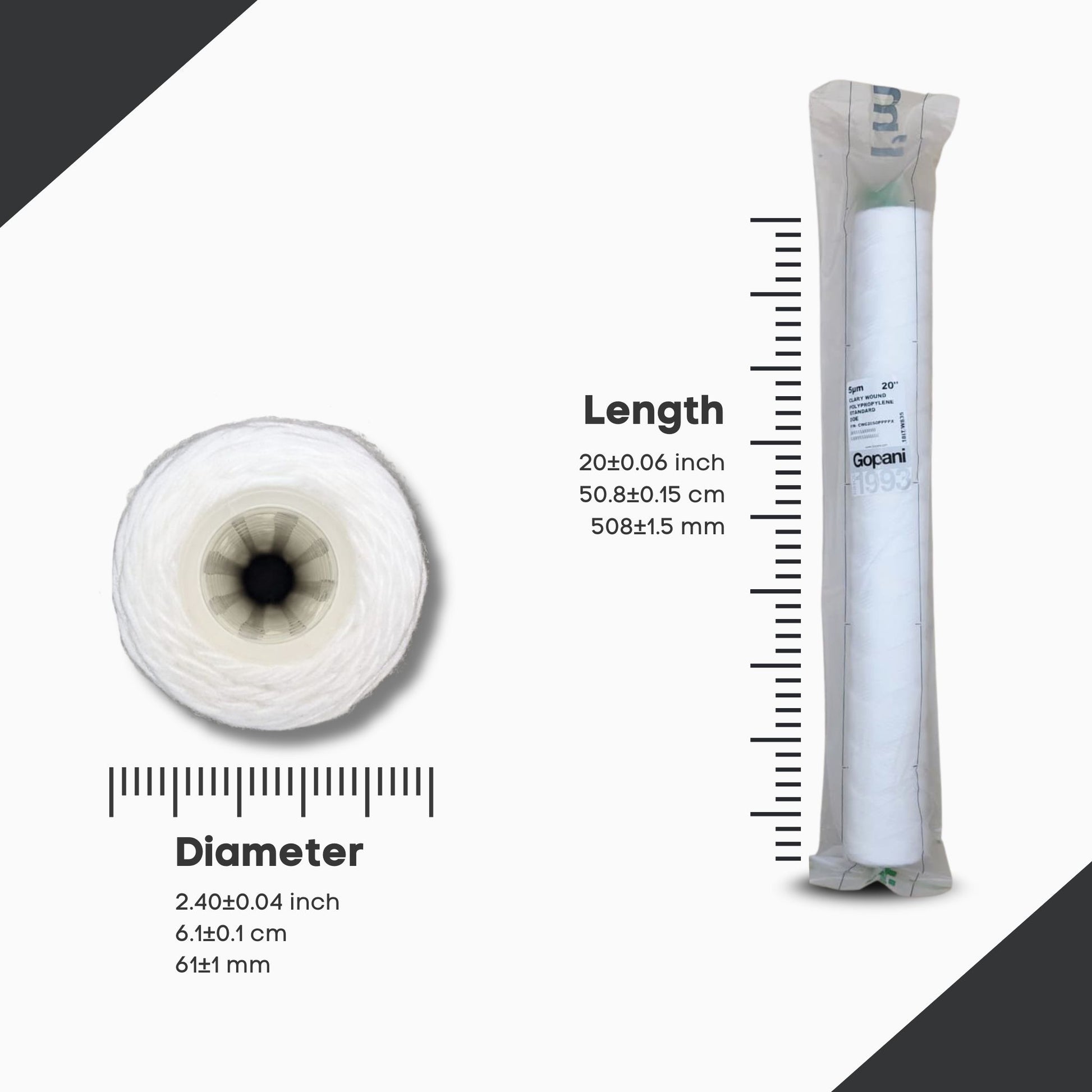

Size: 2.5 × 20 inch (Slim)
Micron Rating: 5 micron filtration
Outer Diameter: 61 ± 0.5 mm
Inner Diameter: 27.5 ± 0.5 mm
Filter Media: Polypropylene yarn
Core Material: Polypropylene
End Fitting: DOE (no end cap)
Maximum Operating Temperature: 70°C (158°F)
Recommended Change-Out Pressure Drop: 0.12 MPa (1.2 bar)
Surface Area: ≥ 0.52 ft² per 10-inch length

🌊 Applications

Water treatment
Wastewater treatment
Electroplating
Power generation
Chemical & pharmaceutical water systems
RO pre-filtration (domestic & industrial)

🕒 Replacement Frequency

Every 1–3 months depending on water quality and usage.

🔧 How To Install

Select the Right Cartridge: Choose the correct micron rating (e.g., 1, 5, 10 micron) and size (10”, 20”, etc.) based on your filtration requirement.
Insert into Filter Housing: Open the filter housing and place the cartridge properly inside. Ensure the O-ring and sealing are correctly aligned to avoid leakage.
Tighten the Housing: Close and tighten the housing firmly using a housing wrench if required.
Flush Before Use: Run water for 5–10 minutes to flush out any loose particles or carbon fines (especially for carbon cartridges).
Regular Replacement: Replace the cartridge after pressure drop increases or after its recommended life (typically 1–3 months depending on water quality).

⚙️ How It Works

Filter cartridges remove impurities from water through physical and/or chemical filtration processes.

Sediment Filtration (Physical Removal): PP spun and pleated cartridges trap sand, dirt, rust, and suspended particles based on micron size.
Depth Filtration: In depth filters (like spun cartridges), water passes through multiple layers, capturing particles throughout the thickness of the filter.
Surface Filtration: Pleated or string-wound cartridges capture particles mainly on the outer surface, allowing easy cleaning and higher flow.
Activated Carbon Action (Chemical Filtration): Carbon cartridges adsorb chlorine, odor, color, and organic impurities, improving taste and smell.
Multi-Stage Protection: Cartridges act as a pre-filtration stage, protecting RO membranes and other equipment from clogging and damage.

FREQUENTLY ASKED QUESTIONS

Do you provide installation services?

Yes. We install RO plants, softeners, iron removal filters, ETP/STP systems, and all types of domestic & industrial water treatment plants across India.

Do you offer GST invoices?

Yes. Every order comes with a100% GST-compliant invoice, suitable for dealers, resellers, and industrial use.

How do I know which chemical or filter is suitable for my water?

You can share your raw water report, TDS, or problem description. Our technical team will recommend the correct chemical, membrane, filter media, or system.

Please connect with us from Contact Us.

Can I speak to someone before placing an order?

Yes, you can contact us directly via phone, email, or WhatsApp for product guidance or bulk pricing.
