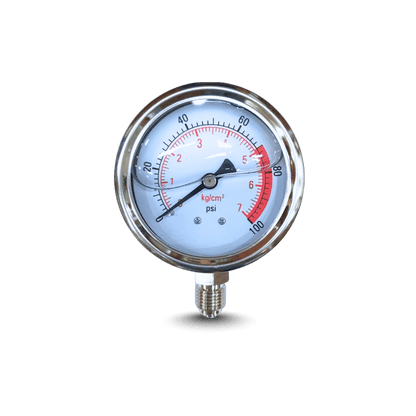

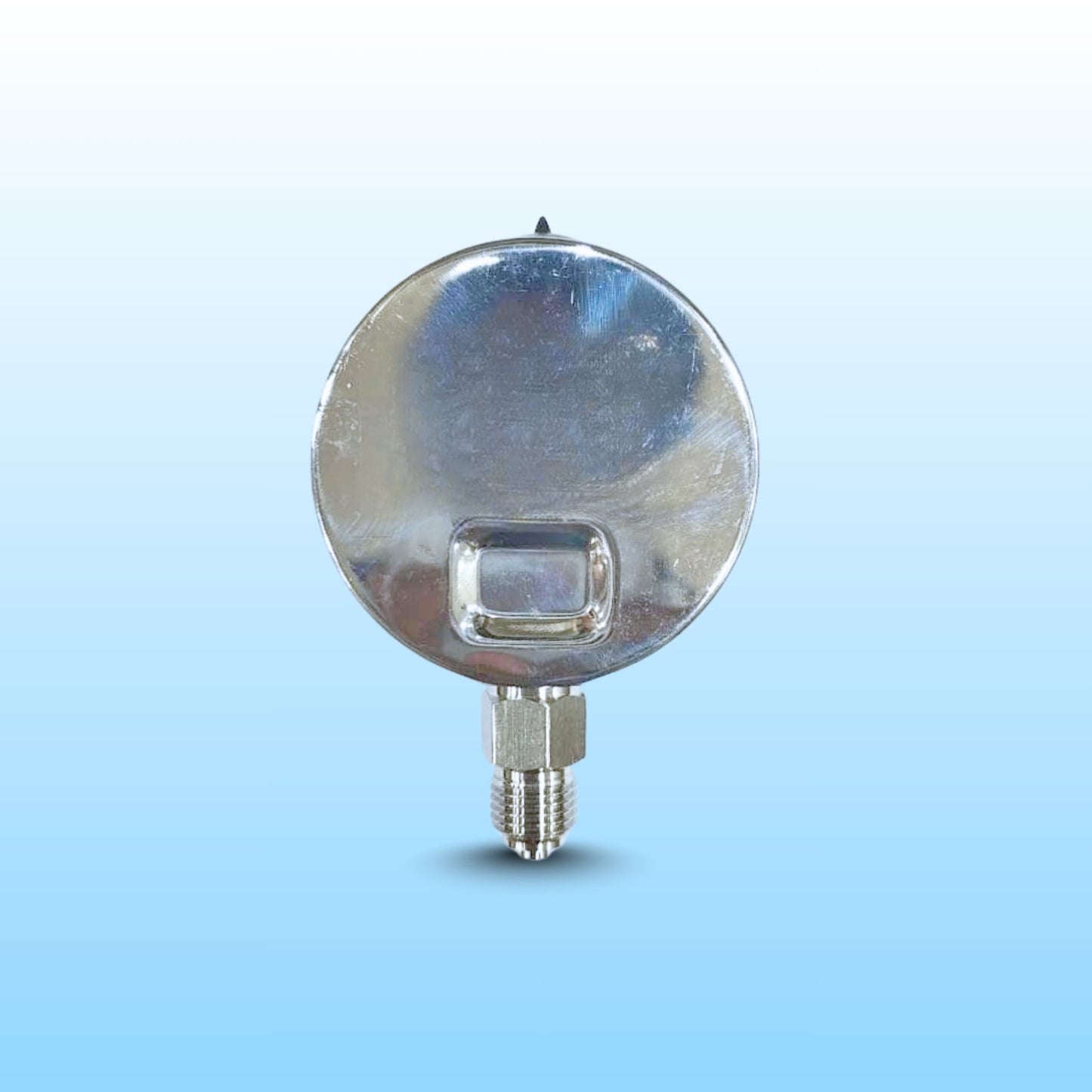

Glycerin Filled Bottom Connection Pressure Gauge 0–100 PSI (0–7 kg/cm²)

Glycerin Filled Bottom Connection Pressure Gauge 0–100 PSI (0–7 kg/cm²)

Rs. 479.00
Rs. 1,299.00 Rs. 479.00
Sale Sold out
Shipping calculated at checkout.

+₹ for doorstep delivery.

Accurate pressure monitoring made reliable — even under vibration and pressure fluctuations.



This Glycerin Filled Bottom Connection Pressure Gauge is designed for accurate and steady pressure measurement in demanding industrial and water treatment applications. The glycerin filling dampens needle vibration, ensuring clear visibility and longer service life, even in pulsating pressure conditions.

Ideal for RO plants, water treatment systems, pumps, compressors, and industrial pipelines.



🫗 Quick Highlights

  • Reliable readings in harsh conditions
  • Dual unit scale for operator convenience
  • Strong SS 304 construction
  • Proven accuracy for industrial use
  • Glycerine Filled
  • Top Mount Bottom Connection
  • Stainless Steel Construction
View full details

💧 Key Benefits

  • Dual Scale Display: Reads pressure in PSI and kg/cm² for easy interpretation
  • Glycerin Filled Mechanism: Reduces vibration, pulsation, and wear on internal parts
  • Bottom Connection Design: Suitable for panel mounting and pipeline installation
  • Rugged Stainless Steel Body: Corrosion-resistant and durable for long-term use
  • Clear Acrylic / Polycarbonate Window: High visibility with impact resistance
  • Industrial Accuracy: ±2% accuracy across full scale
  • Low Maintenance: Designed for consistent performance with minimal upkeep

📌 Technical Properties

  • Pressure Range: 0–100 PSI / 0–7 kg/cm²

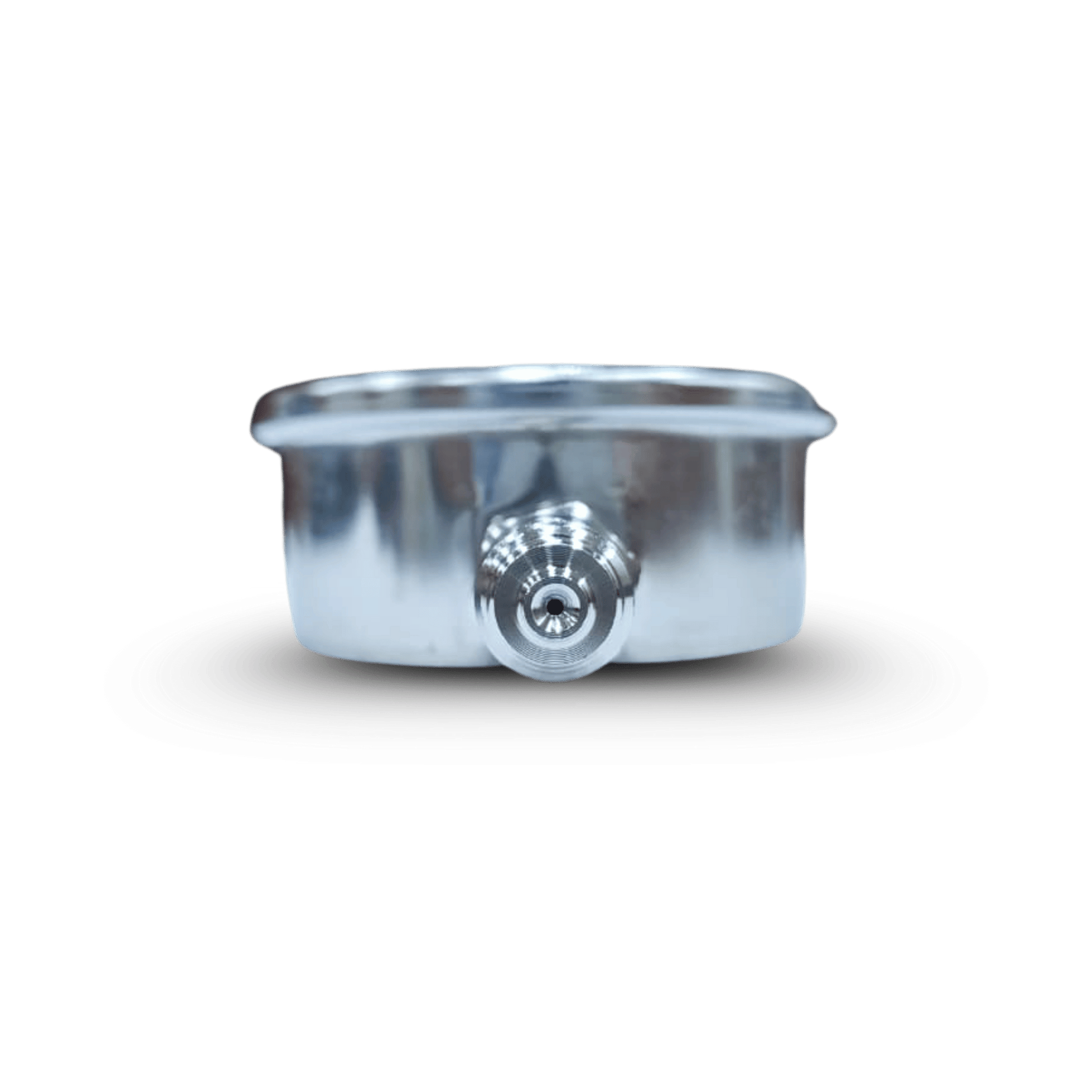

  • Connection Type: Bottom Connection
  • Thread Size: 1/4” BSP
  • Dial Size: 63 mm (2.5 Inch)
  • Cover Material: Stainless Steel
  • Window: Acrylic / Polycarbonate (PC)
  • Wetted Parts Material: SS 304
  • Accuracy: ±2% of Full Scale
  • Filling: Glycerin Filled

🌊 Applications

When pressure is applied through the 1/4” BSP bottom connection, it acts on an internal Bourdon tube inside the gauge.
As the pressure increases, the tube flexes and moves the needle across the calibrated dial.

The glycerin filling absorbs shocks and vibrations, preventing needle flutter and ensuring:
Smooth needle movement
Stable readings
Longer internal component life

This makes the gauge ideal for systems with pressure surges or pulsating flow.

⚙️ How it works

When pressure is applied through the 1/4” BSP bottom connection, it acts on an internal Bourdon tube inside the gauge.
As the pressure increases, the tube flexes and moves the needle across the calibrated dial.

The glycerin filling absorbs shocks and vibrations, preventing needle flutter and ensuring:
Smooth needle movement
Stable readings
Longer internal component life

This makes the gauge ideal for systems with pressure surges or pulsating flow.

🔧 How to install

Installing a Bottom Connection Pressure Gauge

  1. Turn off the system pressure and ensure the pipeline or equipment is fully depressurized before installation.
  2. Check the thread size of the gauge (commonly 1/4″ BSP or 3/8″ BSP) and ensure it matches the pipeline fitting.
  3. Apply PTFE tape (Teflon tape) or suitable thread sealant to the male threads of the gauge to prevent leakage.
  4. Carefully screw the gauge into the bottom threaded port of the pipeline, valve, or manifold.
  5. Tighten using a spanner on the hex fitting provided near the thread. Avoid applying force on the gauge body.
  6. Ensure the dial faces outward and is clearly visible for easy monitoring.
  7. Slowly open the system pressure and check for leaks. Tighten slightly if necessary.
