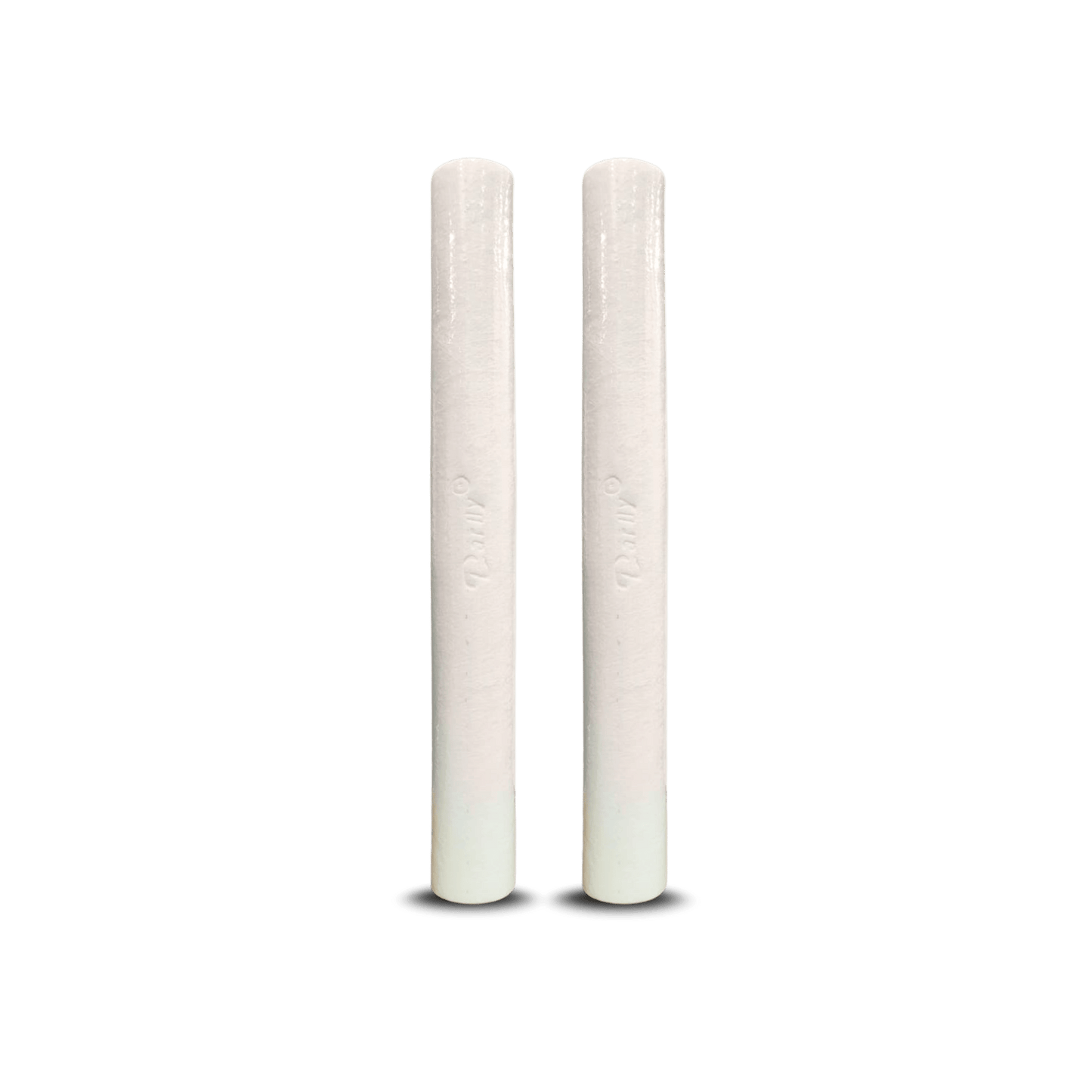

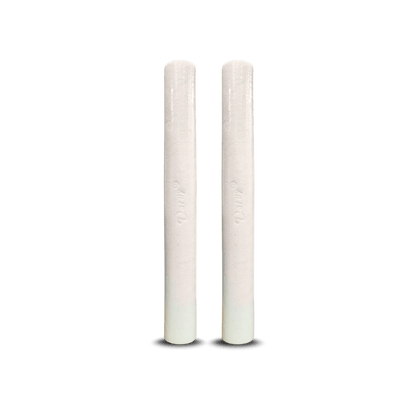

Darlly DLPP Series Melt Blown Spun Filter Cartridge – 2.5 x 20" (5 Micron)

Darlly DLPP Series Melt Blown Spun Filter Cartridge – 2.5 x 20" (5 Micron)

Rs. 279.00 + GST
Rs. 329.22 (Incl. GST)
Rs. 409.00 Rs. 279.00 + GST
Rs. 329.22 (Incl. GST)
Rs. 139.50 each
Sale Sold out
Shipping calculated at checkout.
Packaging Size

The Darlly DLPP Series 2.5 x 20" Melt Blown Cartridge is a premium-grade sediment filter engineered using advanced polypropylene melt-blown technology. Built with a smooth Blank Series surface, it offers high filtration efficiency, no fiber shedding, and a graded-density structure for superior dirt-holding capacity. Ideal for residential RO plants, commercial filtration, and industrial applications requiring consistent and high-quality pre-filtration.

🫗 Product Highlights

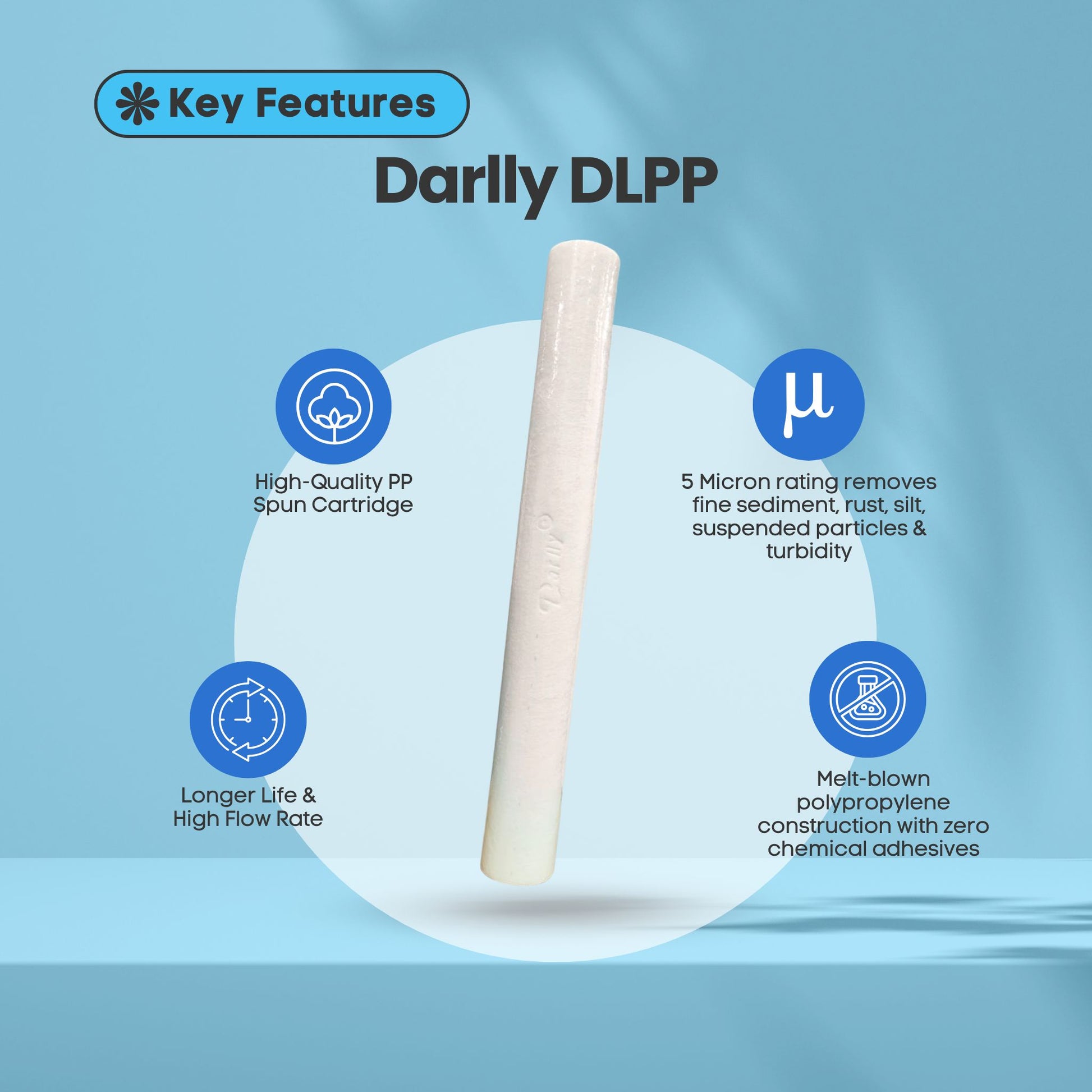

  • Blank Series – Smooth Surface for clean filtration with no fiber shedding

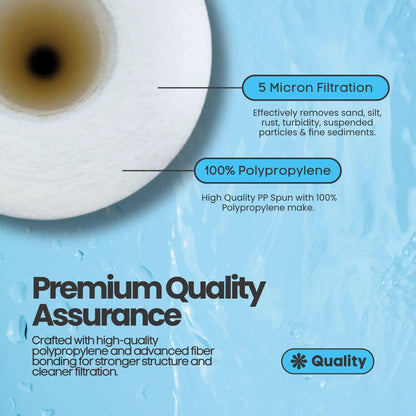

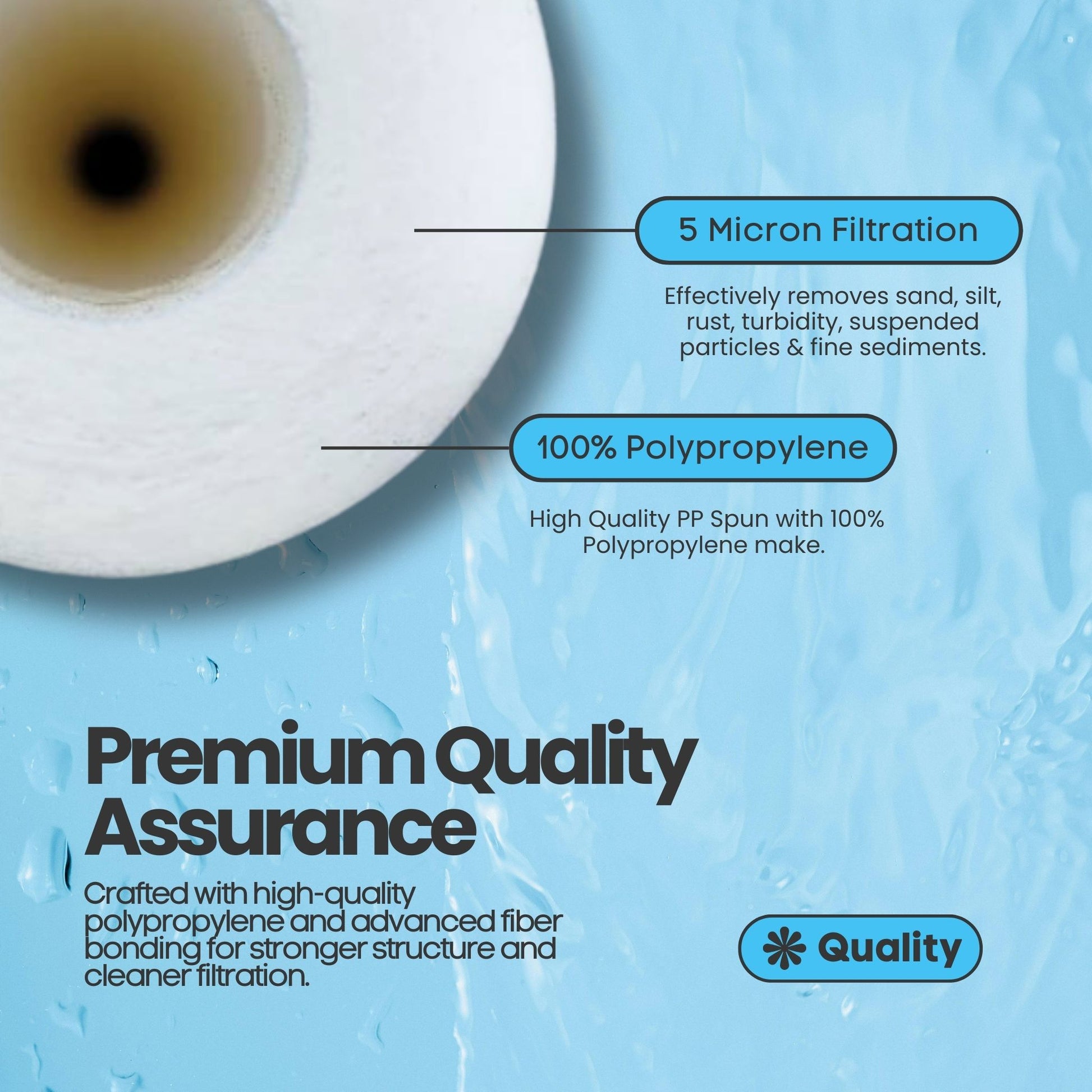

  • 5 Micron rating removes fine sediment, rust, silt, suspended particles & turbidity
  • Weight: 245g ±5% ensuring proper density and stable filtration performance
  • Melt-blown polypropylene construction with zero chemical adhesives
  • 3-layer structure: loose outer layer + dense inner layer for high efficiency
  • High dirt-holding capacity with low pressure drop
  • Suitable for RO pre-filtration and industrial fluid filtration
  • Trusted globally in food, beverage, microelectronics & pharma applications

💧 Choose a Cartridge Built for Strength & Reliability

The Darlly DLPP Series 2.5 x 20" Melt Blown Cartridge ensures powerful sediment control and long-term protection for your water filtration system.

  • PP Spun
  • 2.5 x 20 inch Slim
  • 5 micron
View full details

💧 Key Benefits

  • Smooth surface prevents fiber shedding—ideal for sensitive applications
  • High mechanical strength and pressure resistance
  • Long service life due to deep-layer dirt capture
  • Low pressure drop with stable flow rate
  • Suitable for both water and certain chemical solutions
  • High filtration accuracy for critical applications

💧 How DLPP Melt Blown Technology Works

The cartridge is produced by fusing polypropylene fibers without chemical binders. The process creates:

  • 3D microporous layers
  • Graded density structure (loose outside → tight inside)
  • Improved dirt retention without clogging early
  • Consistent filtration and longer lifespan

This design ensures efficient removal of contaminants such as suspended solids, rust, scale particles, and particulate matter.

📌 Technical Properties

  • Series: DLPP – Melt Blown, Blank (Smooth) Series

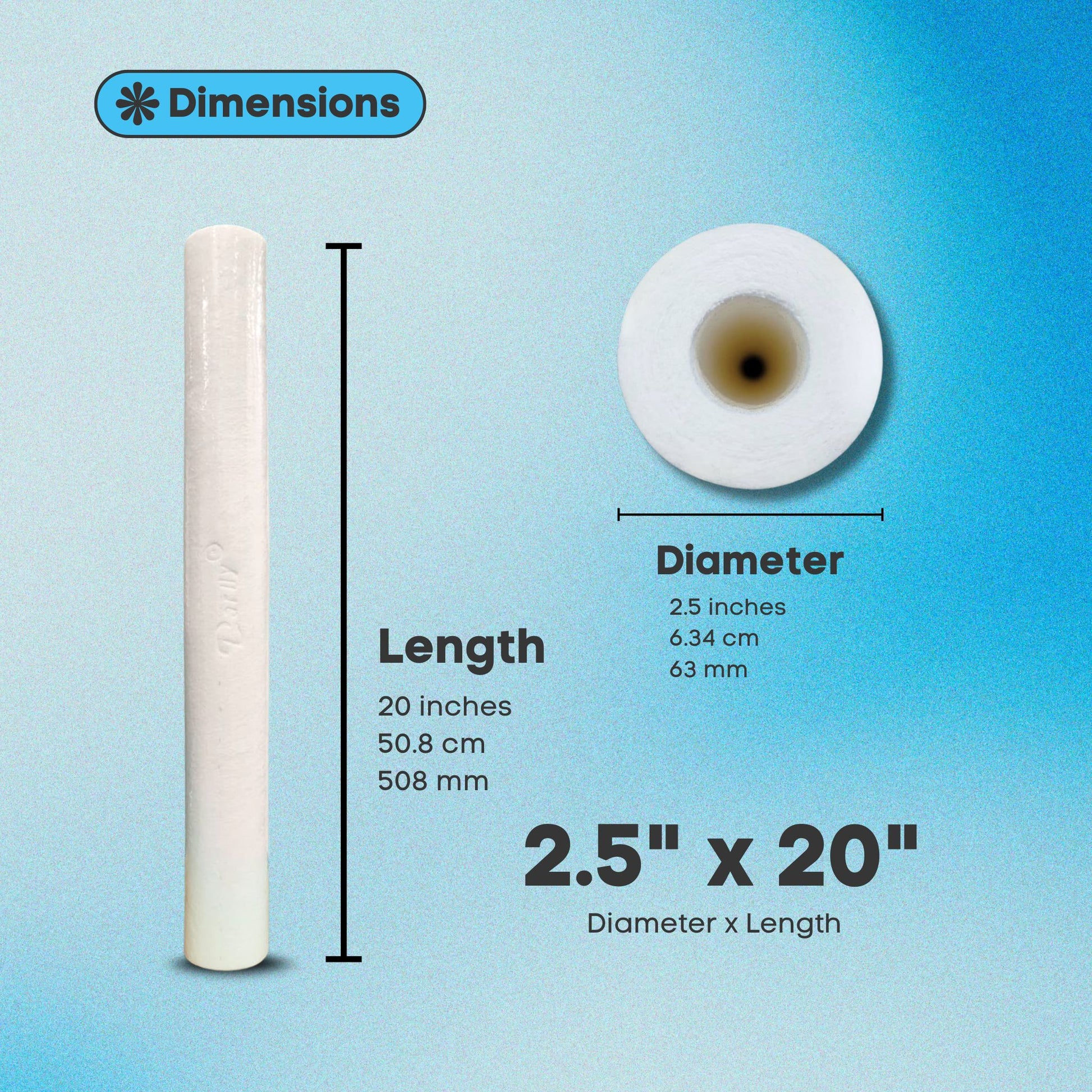

  • Size: 2.5 × 20 inch
  • Micron Rating: 5 micron filtration
  • Weight: 245 g ±5%

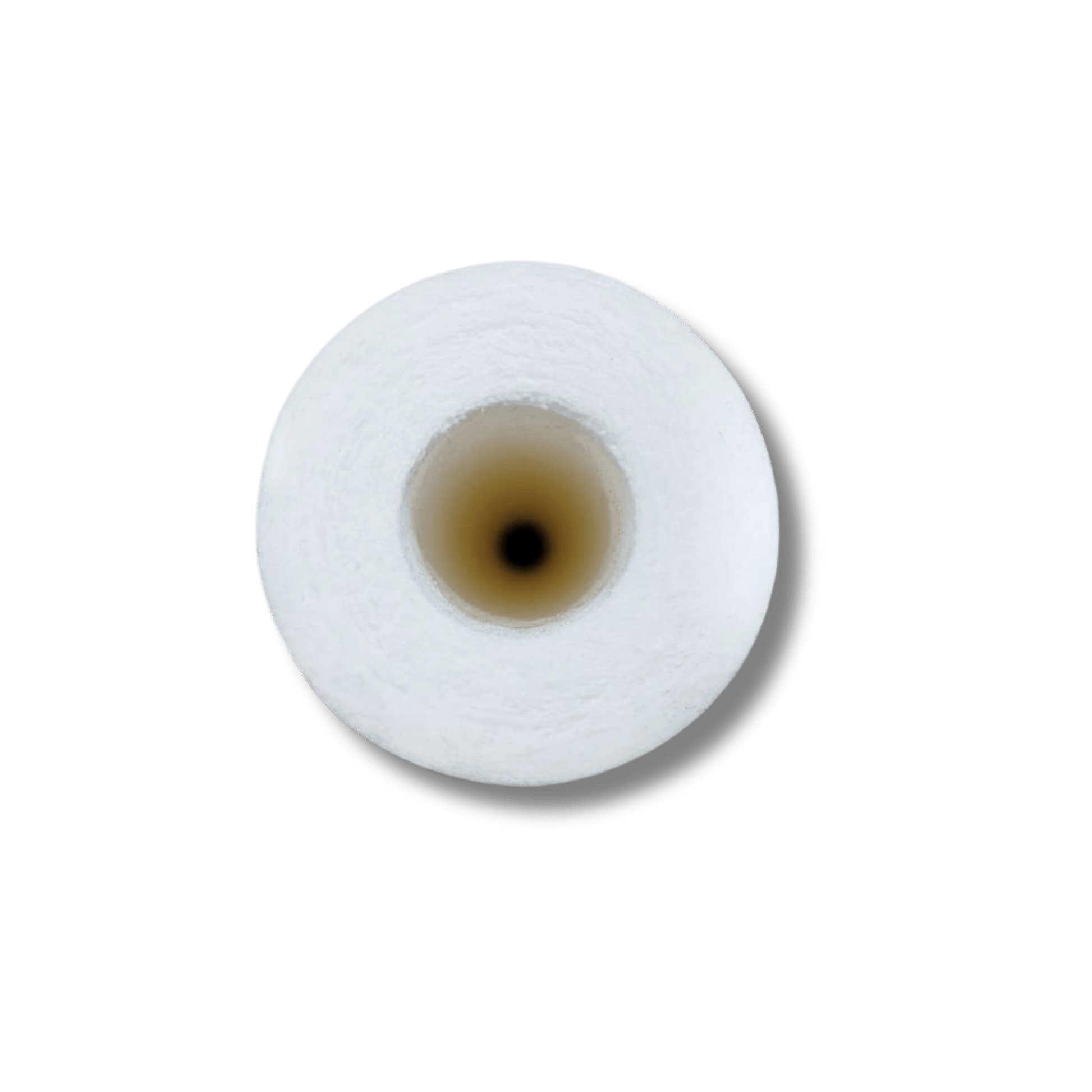

  • Outer Diameter: 63 mm
  • Inner Diameter: 28 mm
  • Filter Media Material: Polypropylene (PP)
  • Core Material: Polypropylene
  • End Cap Material: Polypropylene (PP)
  • Seal Options: Silicone, EPDM, NBR, FKM
  • Maximum Operating Temperature: 65°C (149°F)
  • Maximum Operating Pressure Drop: 2 bar (29 psi) at 20°C

🌊 Applications

  • Domestic & commercial RO pre-filtration
  • Food & beverage processing
  • Industrial process water
  • Plating solutions
  • Chemicals & organic solvent filtration
  • Microelectronics and semiconductor washing
  • Pharmaceutical water systems

🕒 Replacement Frequency

Every 1–3 months depending on water quality and usage.

🔧 How To Install

  1. Select the Right Cartridge: Choose the correct micron rating (e.g., 1, 5, 10 micron) and size (10”, 20”, etc.) based on your filtration requirement.

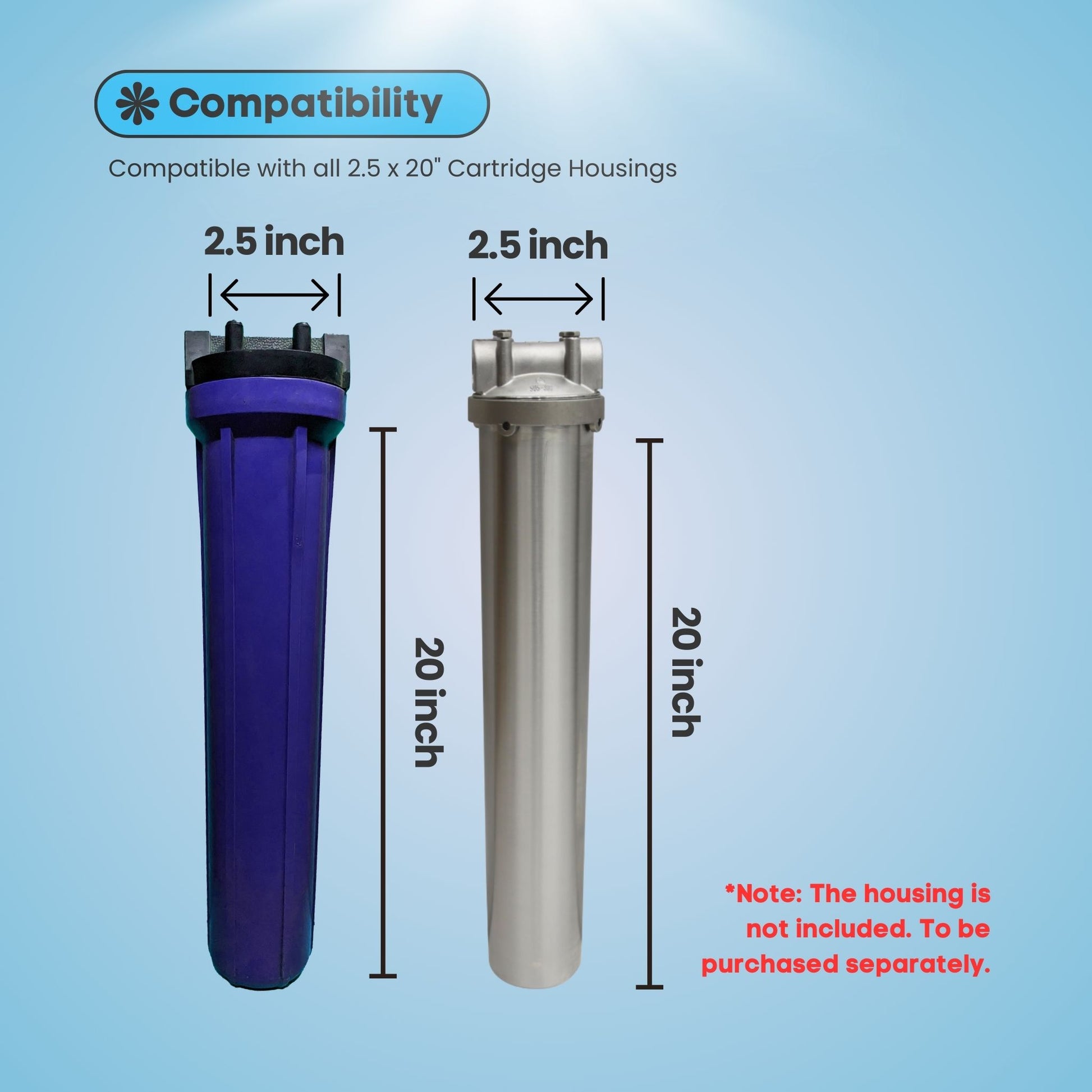

  2. Insert into Filter Housing: Open the filter housing and place the cartridge properly inside. Ensure the O-ring and sealing are correctly aligned to avoid leakage.
  3. Tighten the Housing: Close and tighten the housing firmly using a housing wrench if required.
  4. Flush Before Use: Run water for 5–10 minutes to flush out any loose particles or carbon fines (especially for carbon cartridges).
  5. Regular Replacement: Replace the cartridge after pressure drop increases or after its recommended life (typically 1–3 months depending on water quality).

⚙️ How It Works

Filter cartridges remove impurities from water through physical and/or chemical filtration processes.

  1. Sediment Filtration (Physical Removal): PP spun and pleated cartridges trap sand, dirt, rust, and suspended particles based on micron size.
  2. Depth Filtration: In depth filters (like spun cartridges), water passes through multiple layers, capturing particles throughout the thickness of the filter.
  3. Surface Filtration: Pleated or string-wound cartridges capture particles mainly on the outer surface, allowing easy cleaning and higher flow.
  4. Activated Carbon Action (Chemical Filtration): Carbon cartridges adsorb chlorine, odor, color, and organic impurities, improving taste and smell.
  5. Multi-Stage Protection: Cartridges act as a pre-filtration stage, protecting RO membranes and other equipment from clogging and damage.
