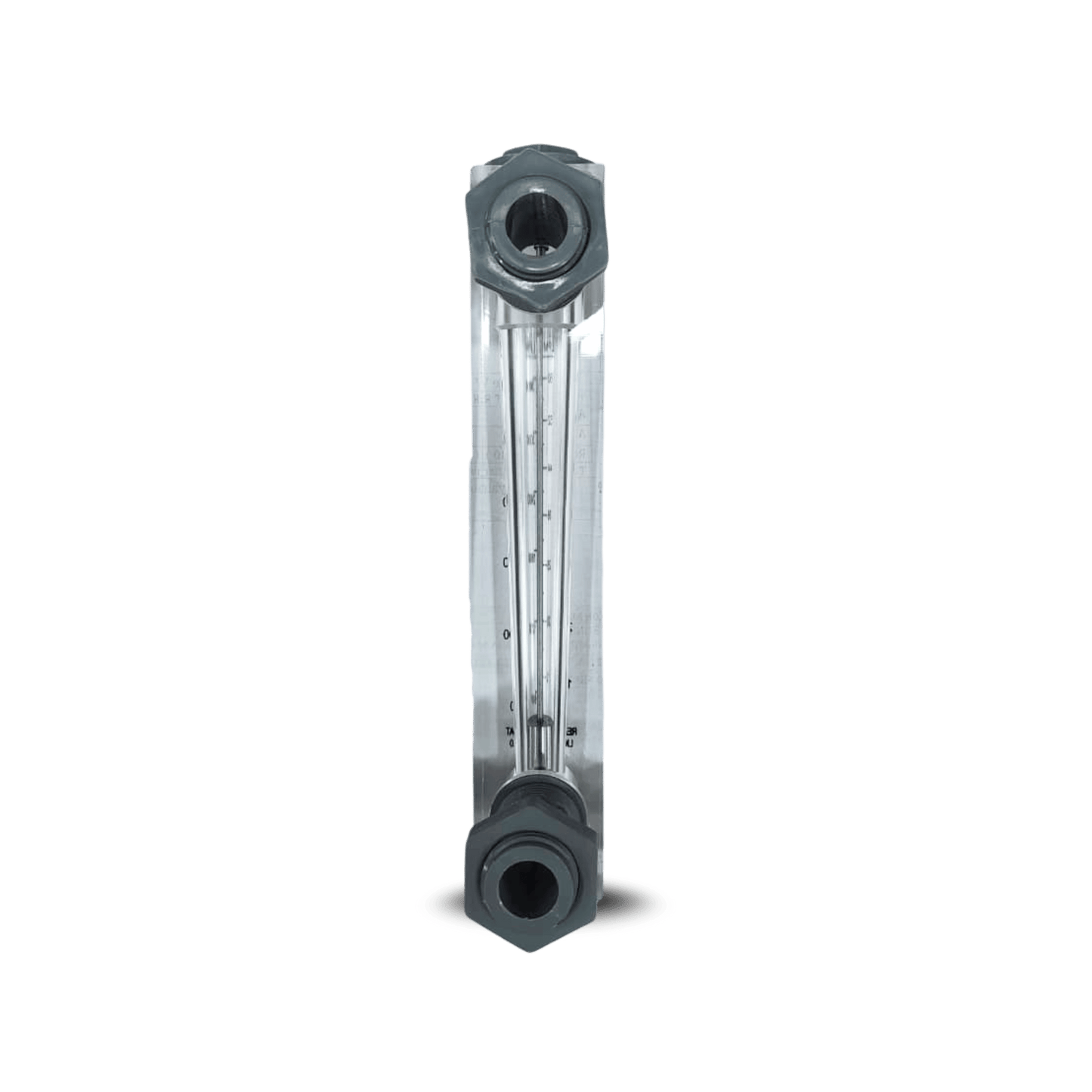

Acrylic Rotameter / Flowmeter – F3600

Rs. 829.00 + GST

Rs. 978.22 (Incl. GST)

~~Rs. 1,399.00~~ Rs. 829.00 + GST

Rs. 978.22 (Incl. GST)

Sale Sold out

Shipping calculated at checkout.

Connection Size 3/4" 1"

Doubts? Call or WhatsApp us at +91 74394 37289

(Reliable Flow Indication for RO & Water Treatment Applications)

Overview

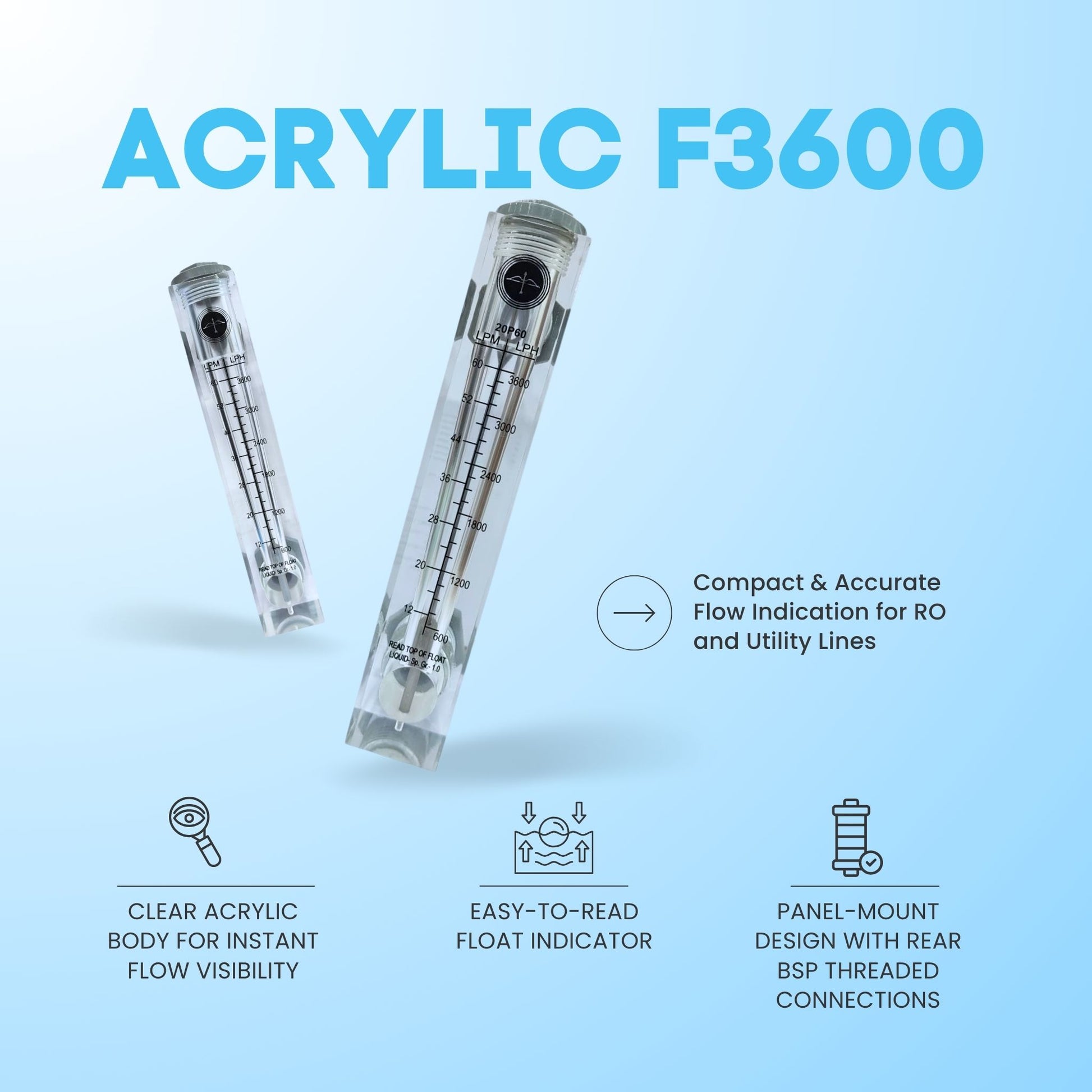

The Model F3600 Acrylic Rotameter / Flowmeter is a durable and easy-to-read flow measuring instrument designed for accurate visual monitoring of liquid flow in RO plants and water treatment systems. Manufactured with a clear acrylic body and a stable float mechanism, it provides consistent and reliable flow indication without the need for power.

The F3600 is available in 3/4" and 1" BSP sizes and features rear (back-side) threaded connections, making it ideal for panel-mounted installations with a clean and professional front appearance.

🫗 Quick Highlights

Available in two connection sizes
Panel-mount acrylic rotameter
Clear and reliable flow indication
Suitable for RO and industrial water systems

Maintain accurate flow control across different line sizes.
Choose the F3600 acrylic rotameter in the right BSP size for your system.

Made of durable Acrylic
Panel Mount

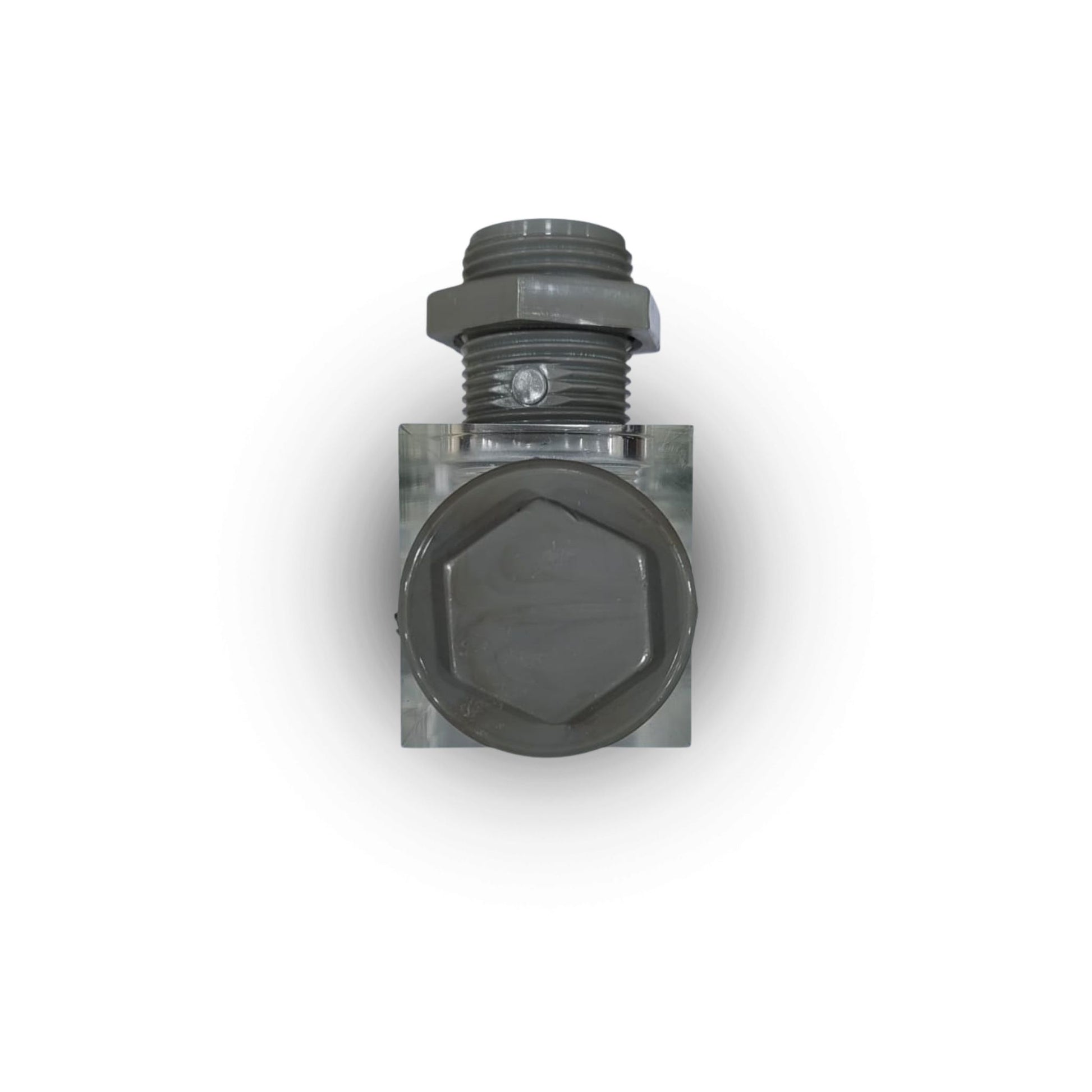

Rear BSP threaded connections

View full details

💧 Key Benefits

Clear acrylic body for instant flow visibility
Stable float movement for accurate readings

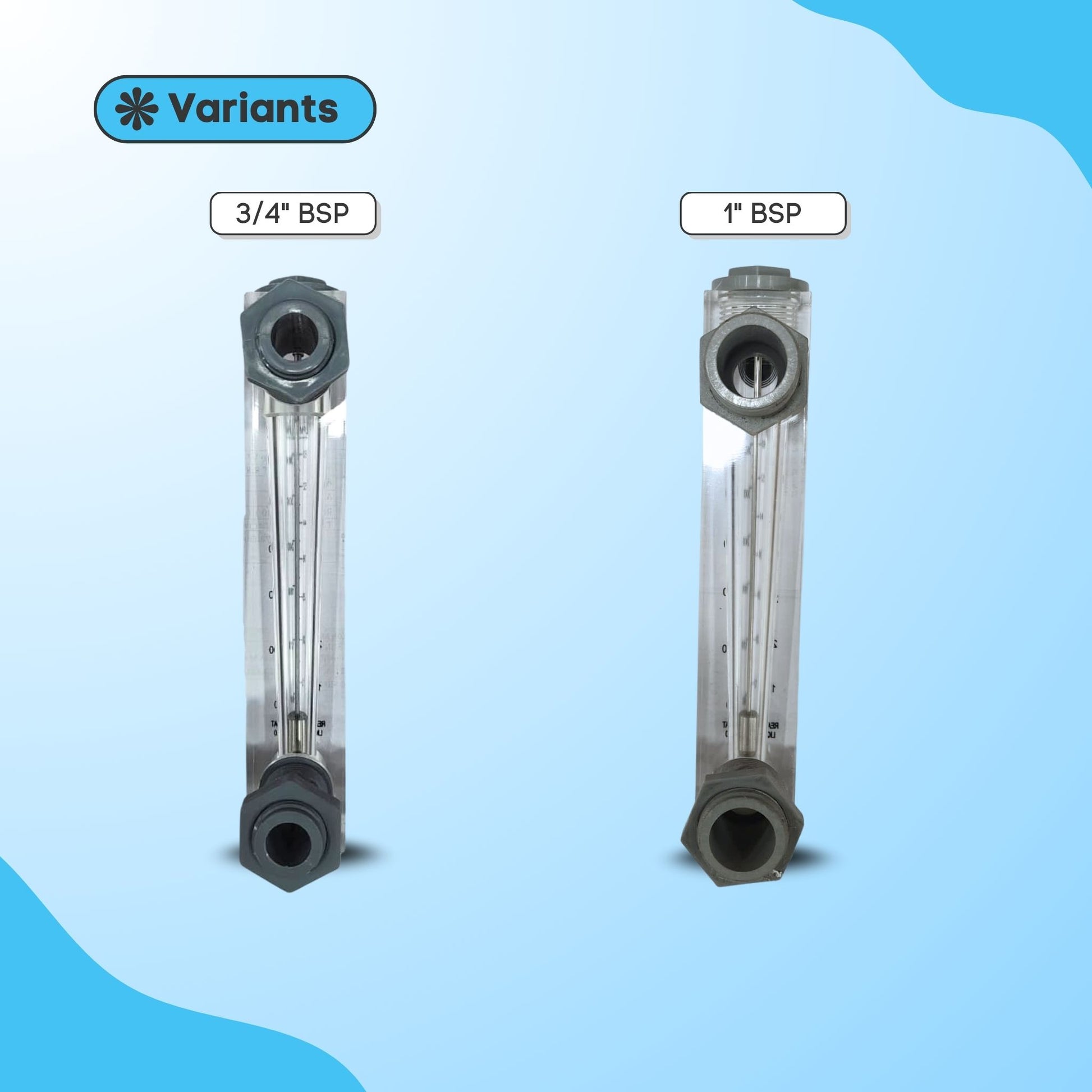

Available in 3/4" and 1" BSP connection sizes
Rear threaded (panel-mount) design for neat installation
Low pressure drop across the meter
Suitable for continuous operation in water systems

📌 Technical Properties

Model: F3600
Type: Acrylic Rotameter / Flowmeter

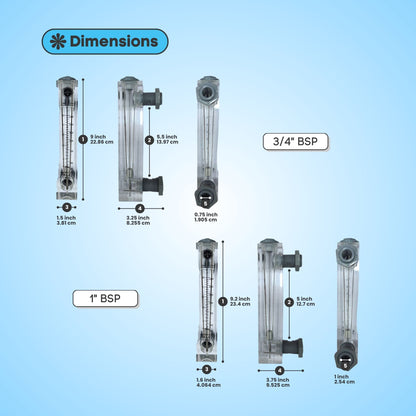

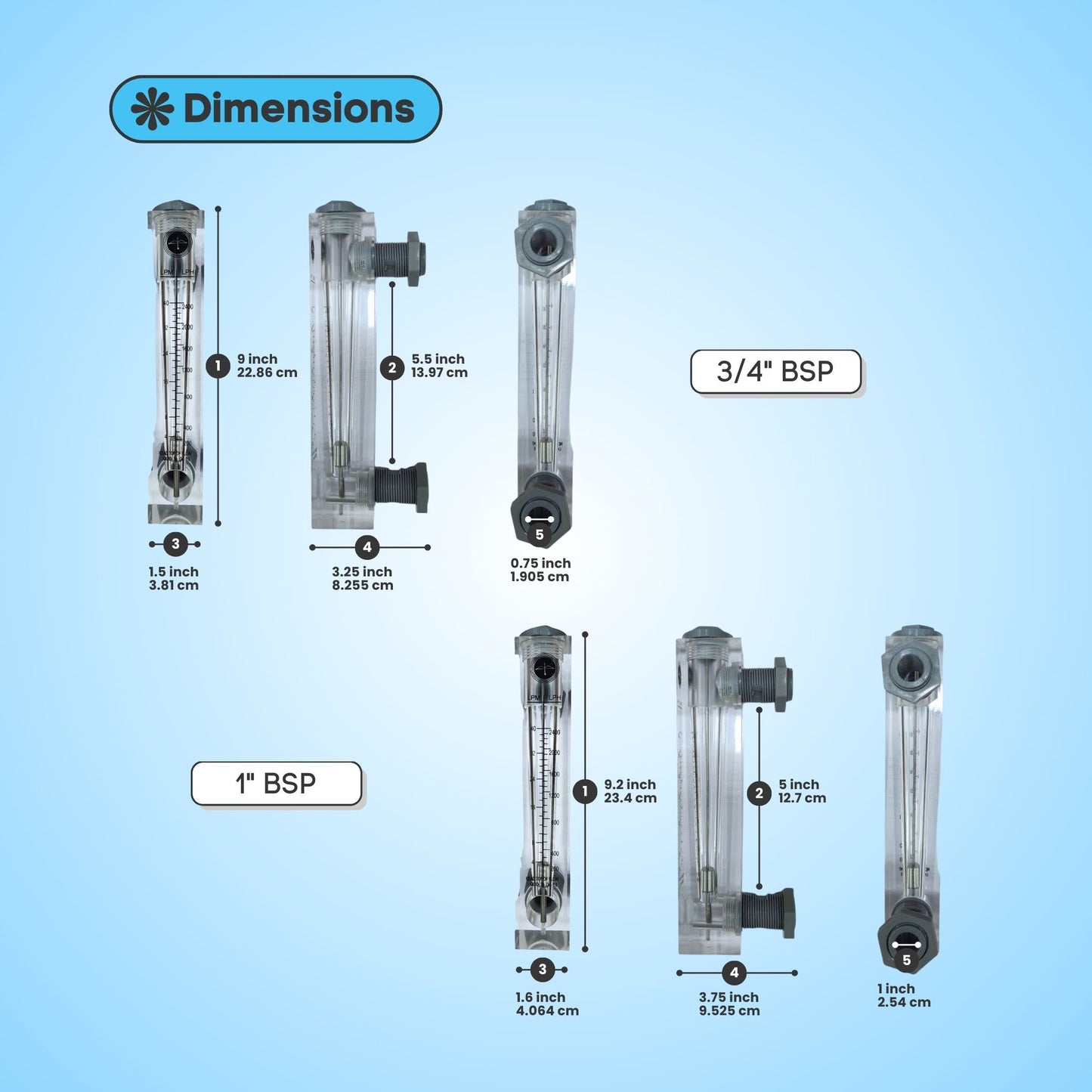

Connection Sizes: 3/4" BSP & 1" BSP
Connection Style: Rear threaded (back-side / panel mount)
Body Material: Acrylic
Mounting: Vertical, panel mounted
Scale Type: LPM / LPH

⚙️ Features

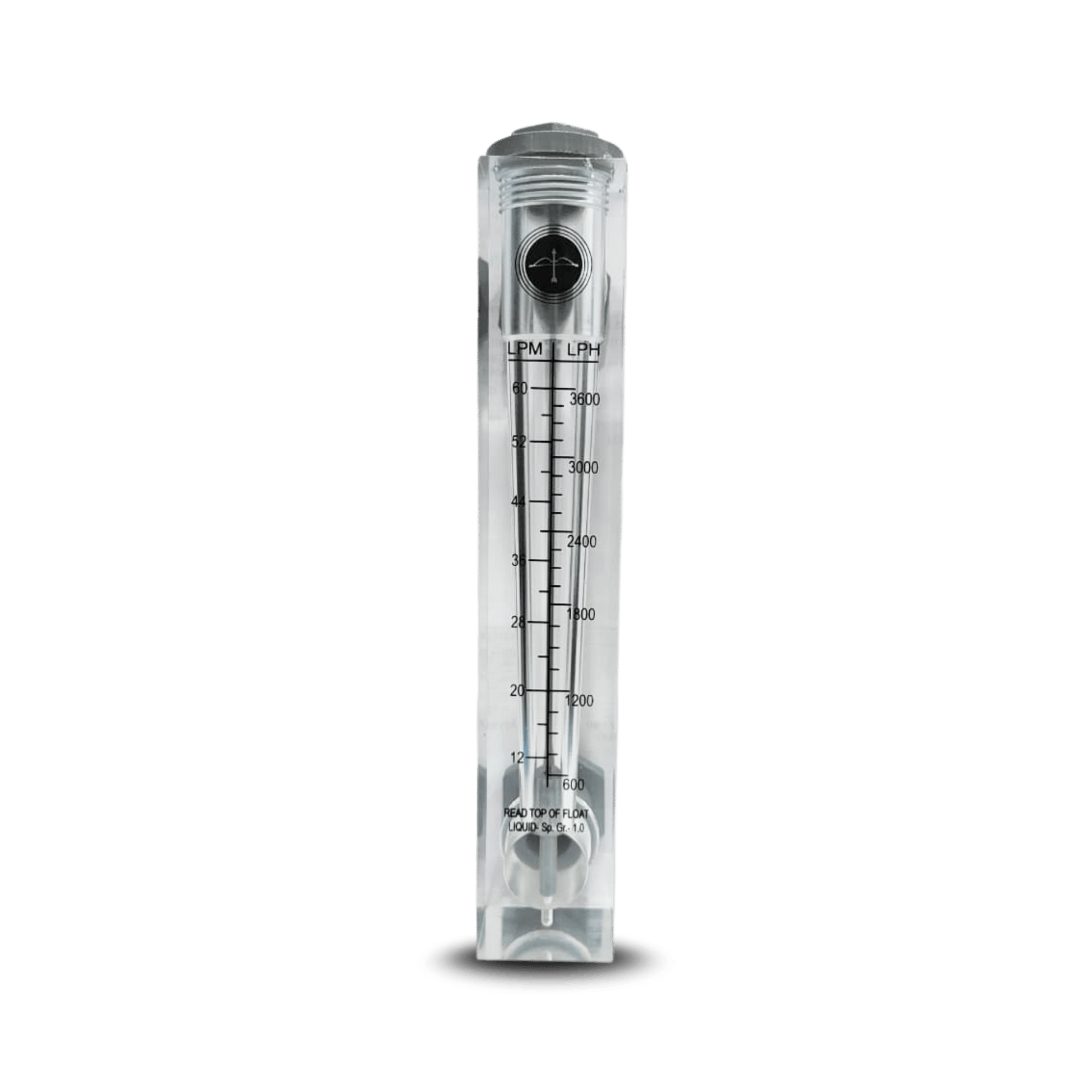

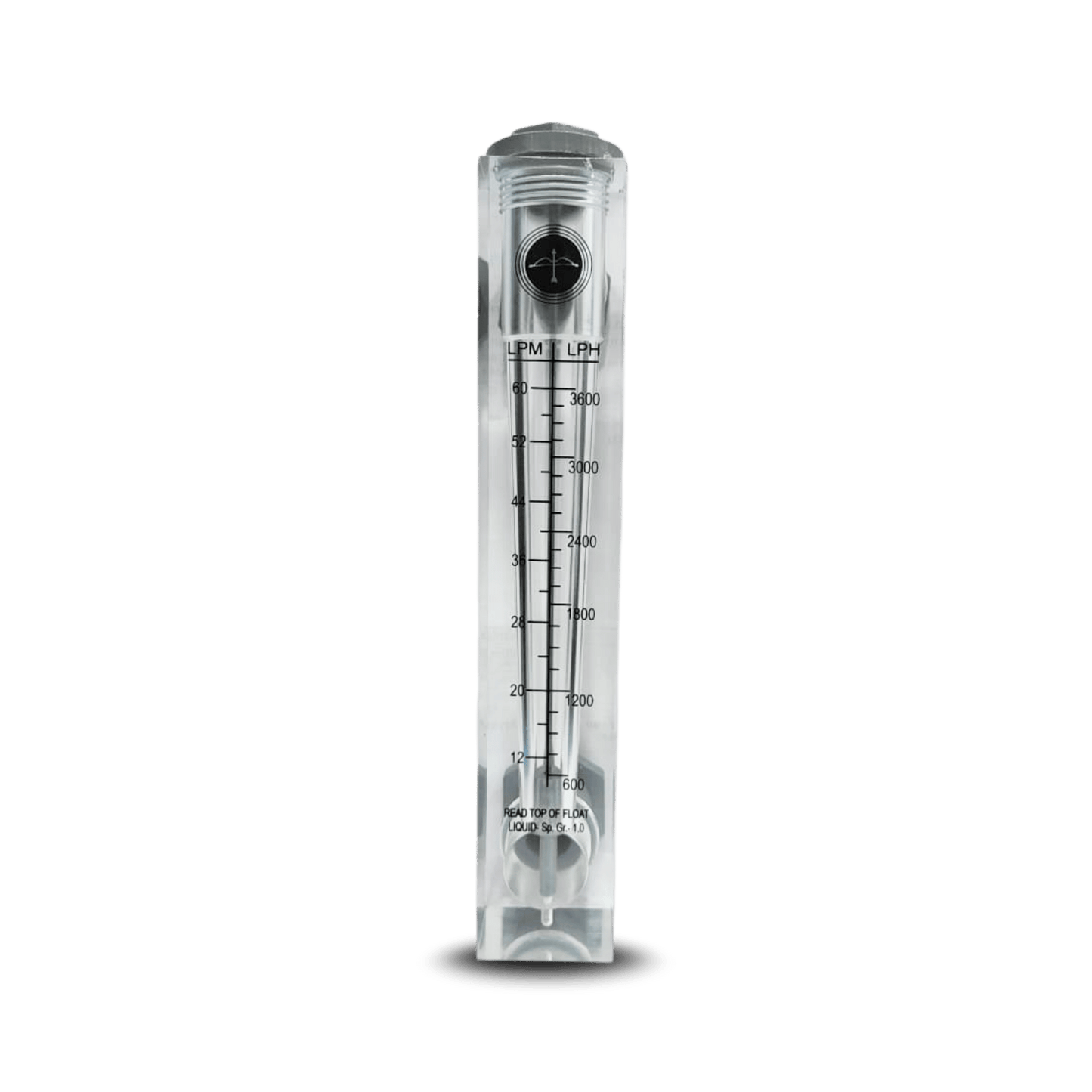

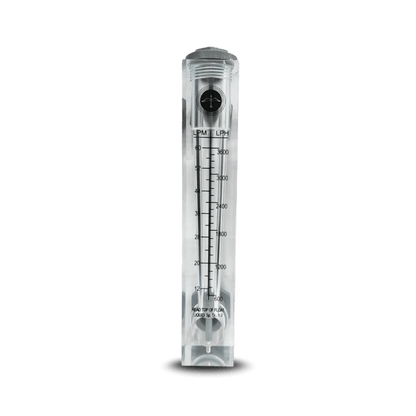

Transparent acrylic tube with clear LPM / LPH scale
High-visibility float (read top of float)

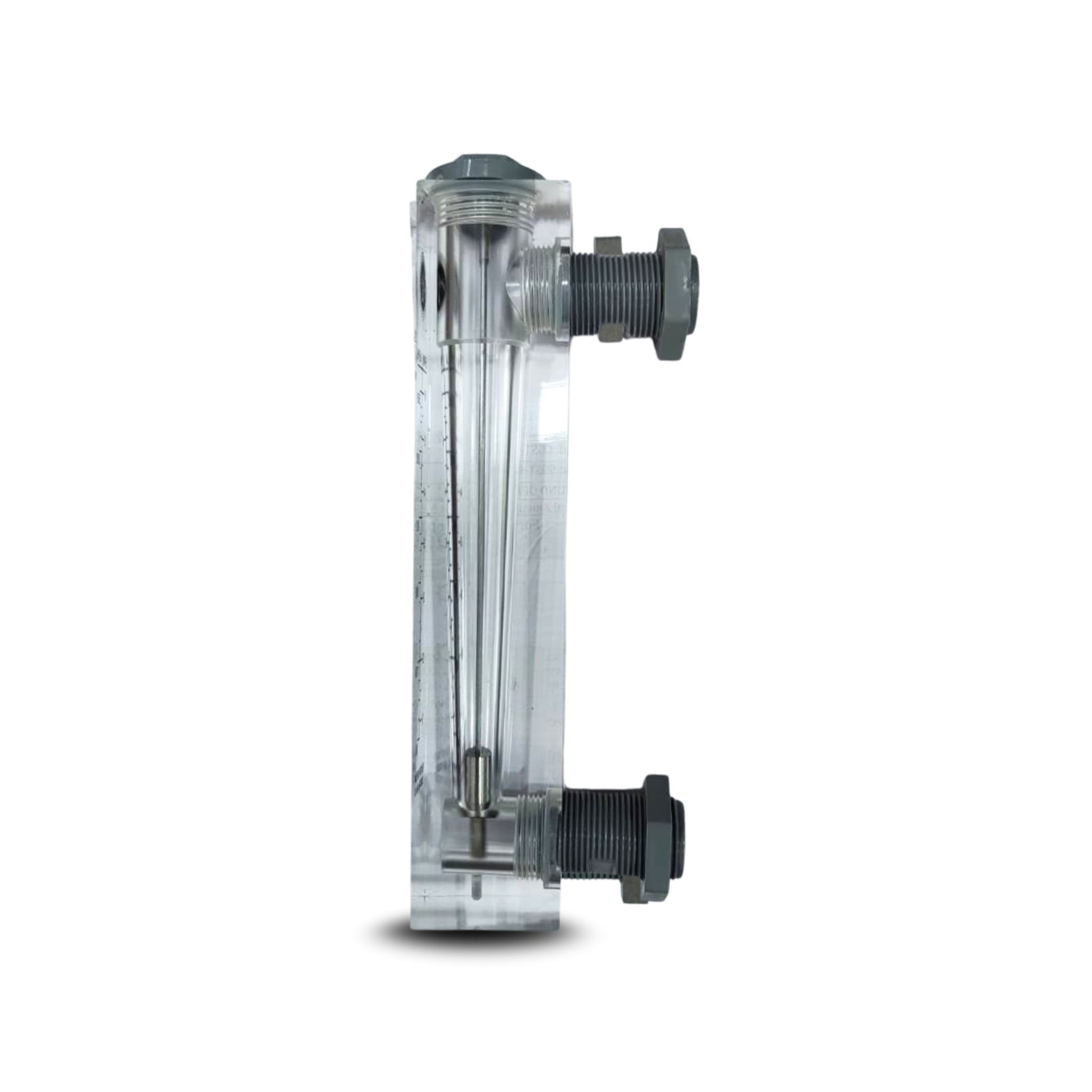

Panel-mount construction with rear BSP threaded connections
Direct in-line flow indication (no power required)
Compact and corrosion-resistant design

🌊 Applications

RO & water treatment plants
Filtration and softener systems
Process and utility water lines
Cooling water flow monitoring
General liquid flow indication

🔧 How To Install

Select the Installation Position: Choose a vertical section on the panel where the rotameter can be clearly seen and easily accessed. Proper visibility is important for accurate reading.
Cut and Prepare the Panel: Make the required cut-out in the panel as per the rotameter size. Ensure proper alignment so the meter sits straight and stable.
Fix the Rotameter on Panel: Mount the rotameter securely using screws or clamps provided. It should be firmly fixed without any tilt.
Connect the Inlet and Outlet Lines: Attach the inlet and outlet connections to the respective pipelines. Ensure correct flow direction as marked on the rotameter body.
Ensure Vertical Alignment: The rotameter must be perfectly vertical for accurate flow measurement. Even slight tilting can affect readings.
Check for Leaks and Flow: Start the system and check all connections. Ensure smooth flow and confirm that the float inside moves freely.

⚙️ How It Works

Variable Area Flow Measurement: An acrylic rotameter works on the principle of variable area. As fluid enters from the bottom, it flows upward through a tapered tube, creating space for the float to rise.
Float Movement and Balance: The upward force of the flowing liquid lifts the float, while gravity pulls it downward. The float stabilizes at a point where these forces balance, indicating the flow rate.
Direct Visual Indication: The position of the float corresponds to a calibrated scale printed on the body. This allows instant and direct reading of flow without any external power.
Dependence on Flow Rate: Higher flow increases the upward force, lifting the float higher. Lower flow results in the float settling at a lower position, making it easy to monitor variations.
Simple and Reliable Operation: Since it has no complex electronics, the rotameter provides a reliable and maintenance-friendly solution for monitoring flow in RO systems, dosing lines, and process water applications.
