Acrylic Rotameter / Flowmeter – F2400

Acrylic Rotameter / Flowmeter – F2400

Rs. 619.00 + GST
Rs. 730.42 (Incl. GST)
Rs. 999.00 Rs. 619.00 + GST
Rs. 730.42 (Incl. GST)
Sale Sold out
Shipping calculated at checkout.

(Compact & Reliable Flow Indicator for RO & Water Treatment Systems)

Overview

The Model F2400 Acrylic Rotameter / Flowmeter (3/4″ BSP) is a clear, durable, and easy-to-read instrument designed for visual monitoring of liquid flow in water treatment and RO plant applications. Constructed from transparent acrylic, it provides immediate flow feedback without any electrical power.

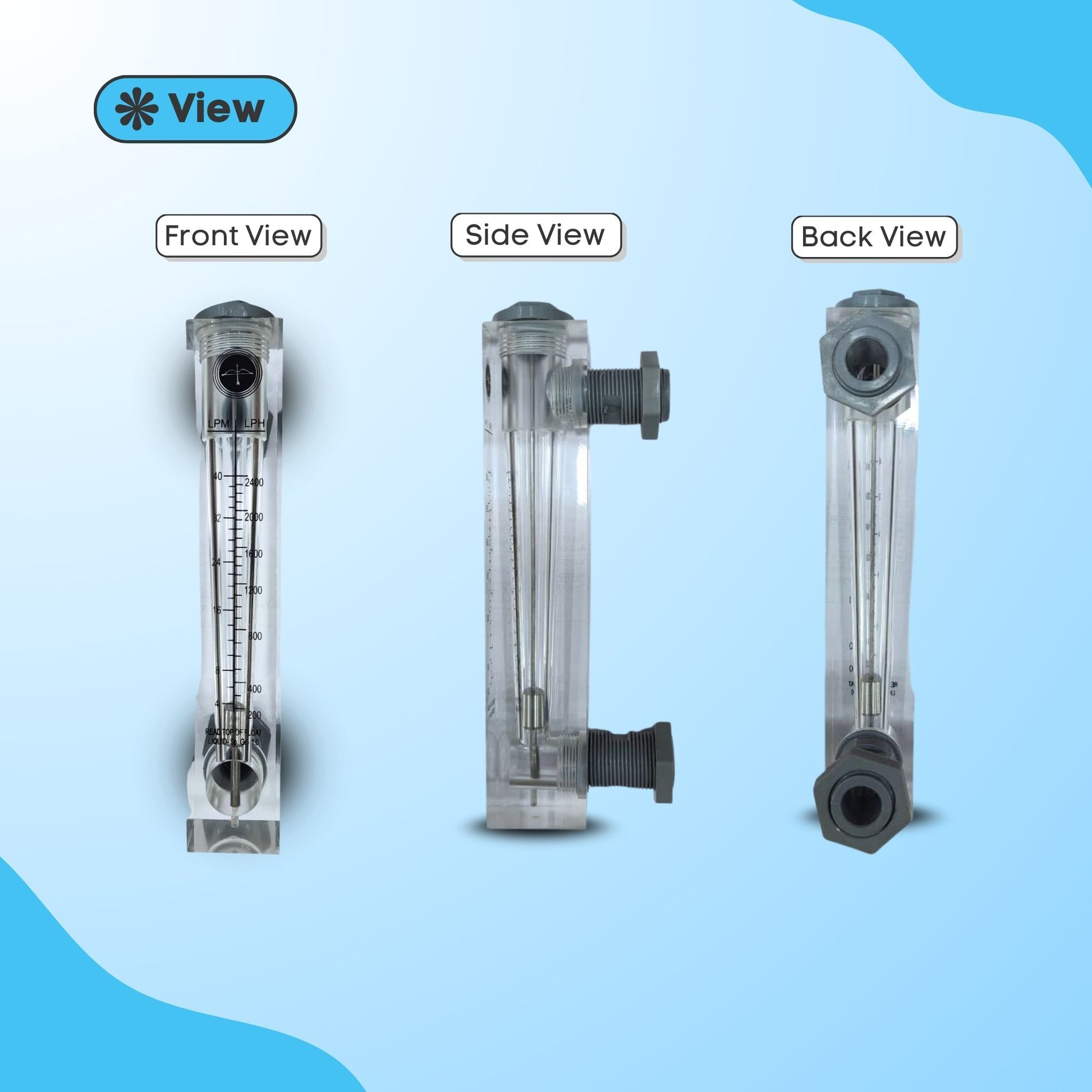

This model features rear (back-side) threaded BSP connections, commonly used for panel mounting, keeping the front clean and easy to read while piping connections are neatly hidden behind.



🫗 Quick Highlights

  • Compact acrylic rotameter
  • Panel-mount style with rear connections
  • Clear and reliable visual flow indication
  • Ideal for standard RO and water systems

Accurate flow visibility made simple.
The F2400 (3/4″ BSP) acrylic rotameter delivers precise flow indication in a compact, easy-to-install format perfect for everyday water treatment use.

  • Made of durable Acrylic
  • Panel Mount

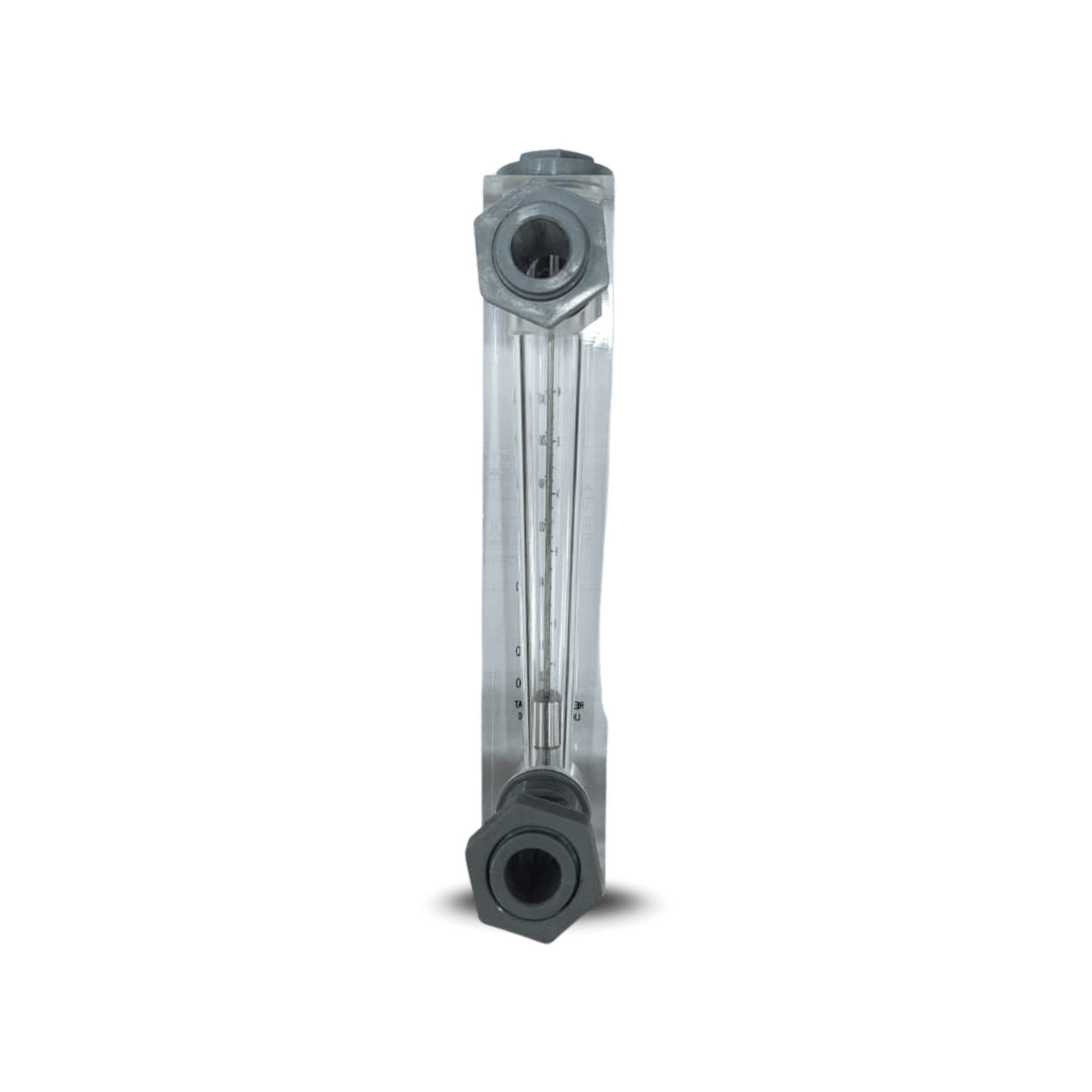

  • Rear BSP threaded connections
View full details

💧 Key Benefits

  • Clear acrylic body for instant flow visibility
  • Stable float movement for reliable and repeatable readings
  • 3/4″ BSP rear threaded connections ideal for panel installations
  • Compact design for standard RO and process lines
  • Low pressure drop across the meter
  • No power needed — fully mechanical and maintenance-friendly

📌 Technical Properties

  • Model: F2400
  • Type: Acrylic Rotameter / Flowmeter

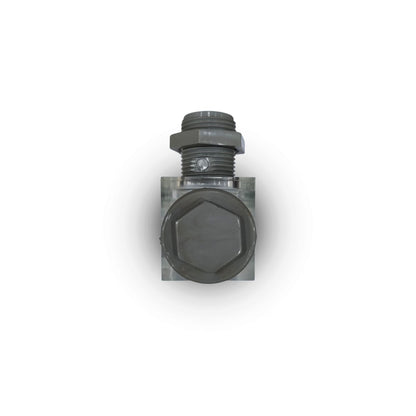

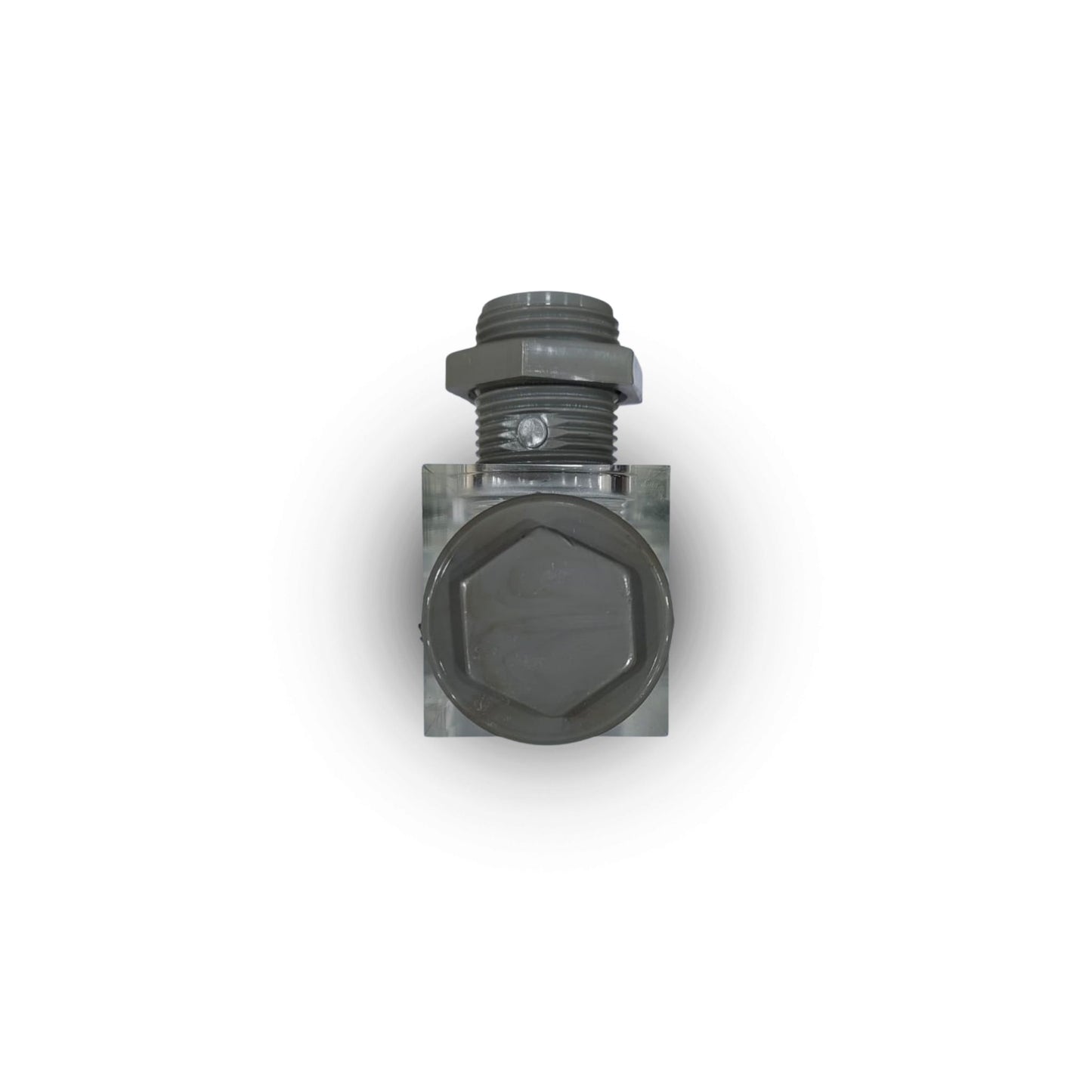

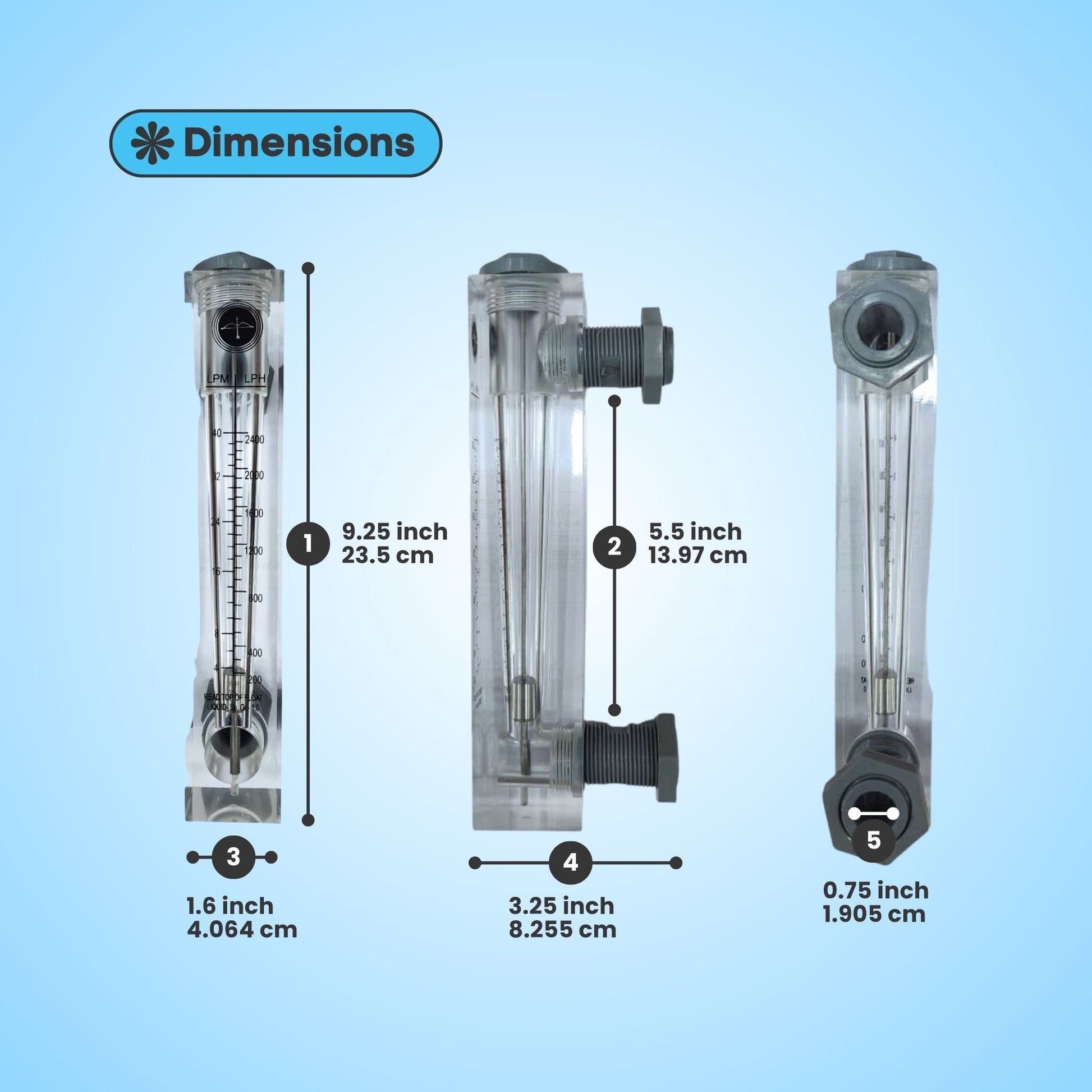

  • Connection Size: 3/4″ BSP

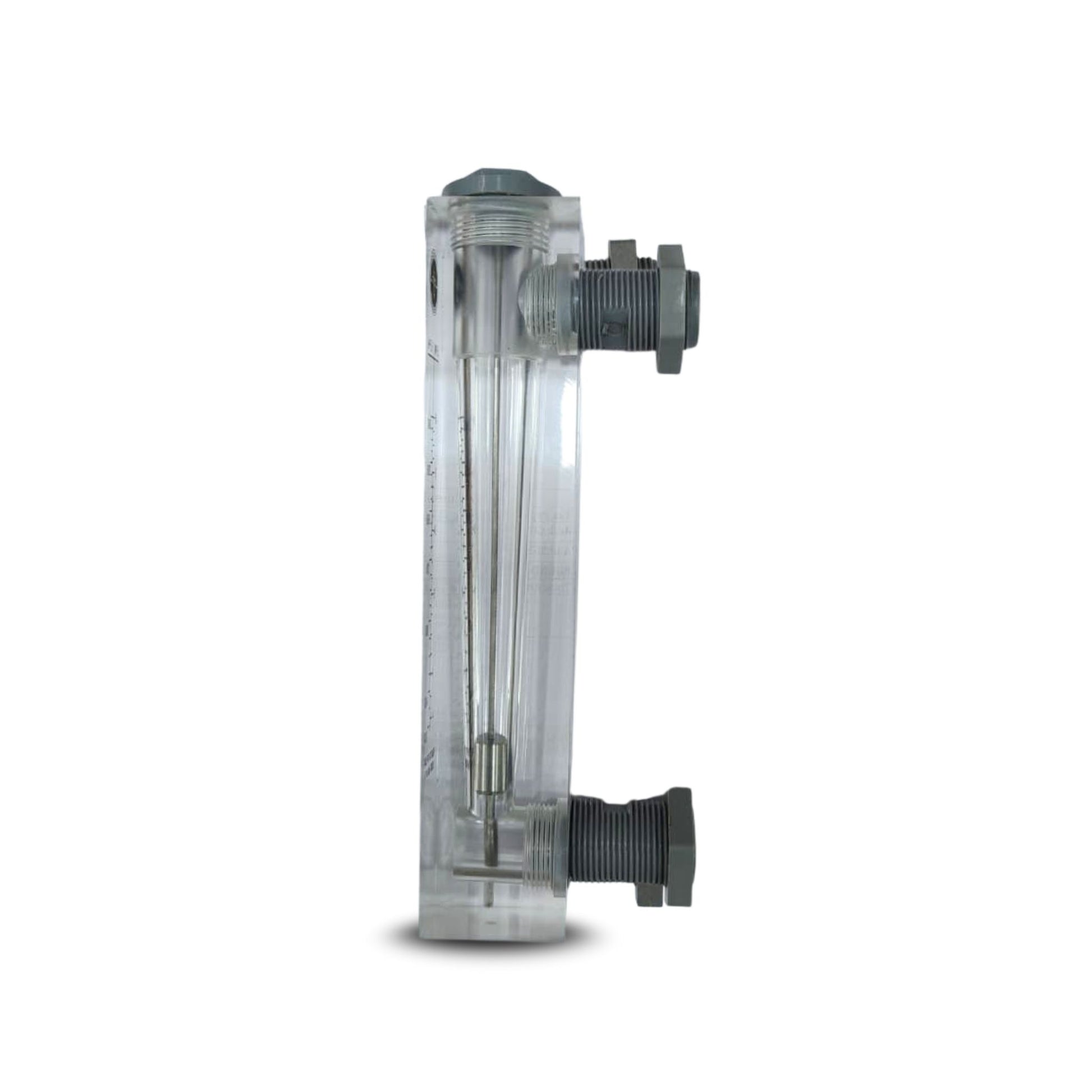

  • Connection Style: Rear threaded (back-side / panel mount)
  • Body Material: Acrylic
  • Mounting: Vertical, panel mounted
  • Scale Type: LPM / LPH

⚙️ Features

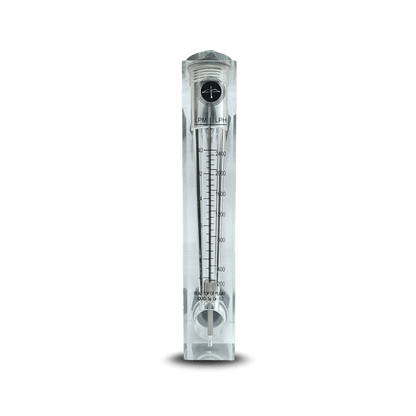

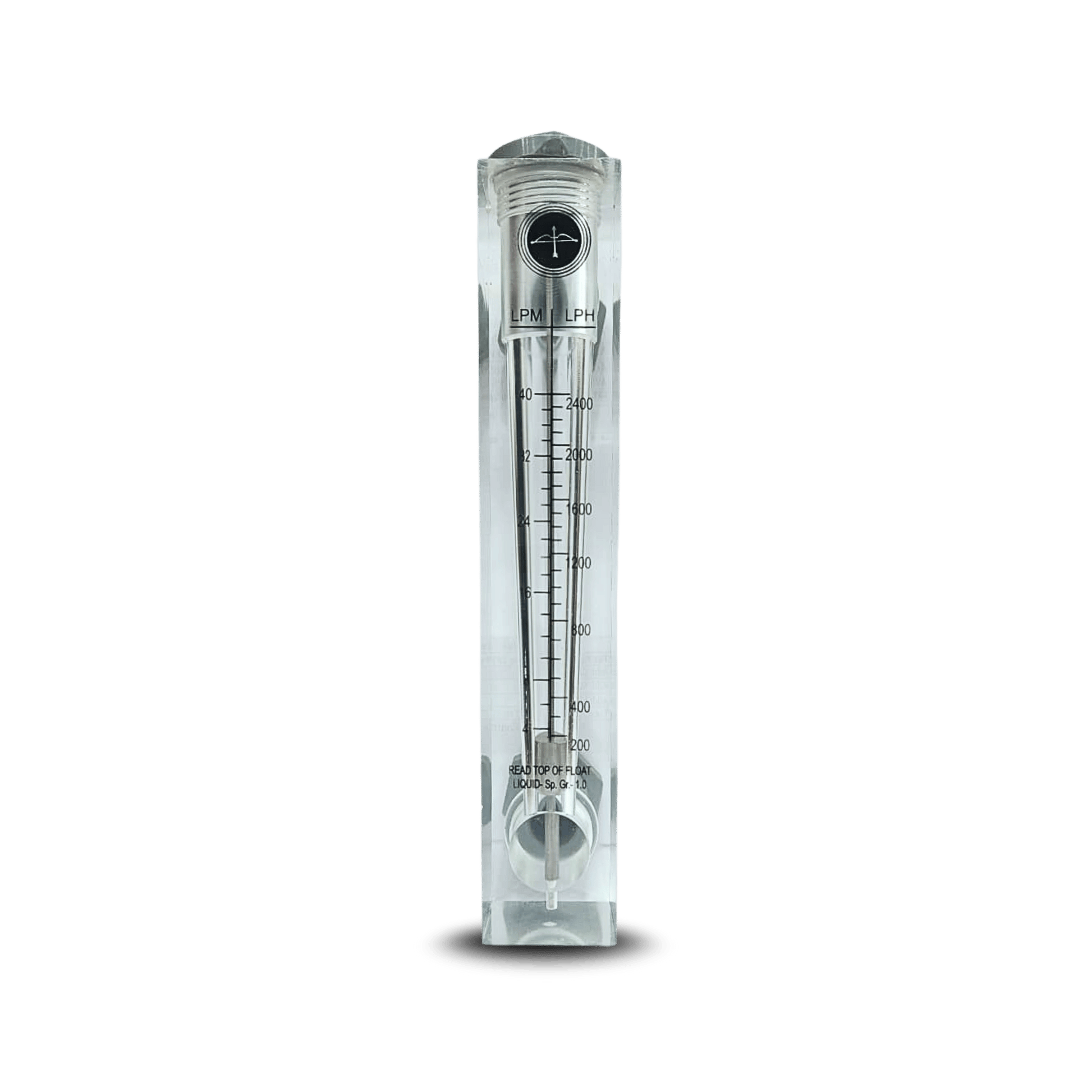

  • Transparent acrylic tube with printed LPM / LPH scale
  • High-visibility float indicator (read at top of float)
  • Panel-mount construction with rear BSP threaded connections
  • Direct in-line flow indication without power requirement
  • Lightweight and corrosion-resistant design

🌊 Applications

  • RO & water treatment plant flow monitoring
  • Filtration and softener systems
  • Utility and service water lines
  • Dosing and process water flow indication
  • Cooling water and general liquid flow measurement

🔧 How To Install

  1. Select the Installation Position: Choose a vertical section on the panel where the rotameter can be clearly seen and easily accessed. Proper visibility is important for accurate reading.
  2. Cut and Prepare the Panel: Make the required cut-out in the panel as per the rotameter size. Ensure proper alignment so the meter sits straight and stable.
  3. Fix the Rotameter on Panel: Mount the rotameter securely using screws or clamps provided. It should be firmly fixed without any tilt.
  4. Connect the Inlet and Outlet Lines: Attach the inlet and outlet connections to the respective pipelines. Ensure correct flow direction as marked on the rotameter body.
  5. Ensure Vertical Alignment: The rotameter must be perfectly vertical for accurate flow measurement. Even slight tilting can affect readings.
  6. Check for Leaks and Flow: Start the system and check all connections. Ensure smooth flow and confirm that the float inside moves freely.

⚙️ How It Works

  • Variable Area Flow Measurement: An acrylic rotameter works on the principle of variable area. As fluid enters from the bottom, it flows upward through a tapered tube, creating space for the float to rise.
  • Float Movement and Balance: The upward force of the flowing liquid lifts the float, while gravity pulls it downward. The float stabilizes at a point where these forces balance, indicating the flow rate.
  • Direct Visual Indication: The position of the float corresponds to a calibrated scale printed on the body. This allows instant and direct reading of flow without any external power.
  • Dependence on Flow Rate: Higher flow increases the upward force, lifting the float higher. Lower flow results in the float settling at a lower position, making it easy to monitor variations.
  • Simple and Reliable Operation: Since it has no complex electronics, the rotameter provides a reliable and maintenance-friendly solution for monitoring flow in RO systems, dosing lines, and process water applications.
