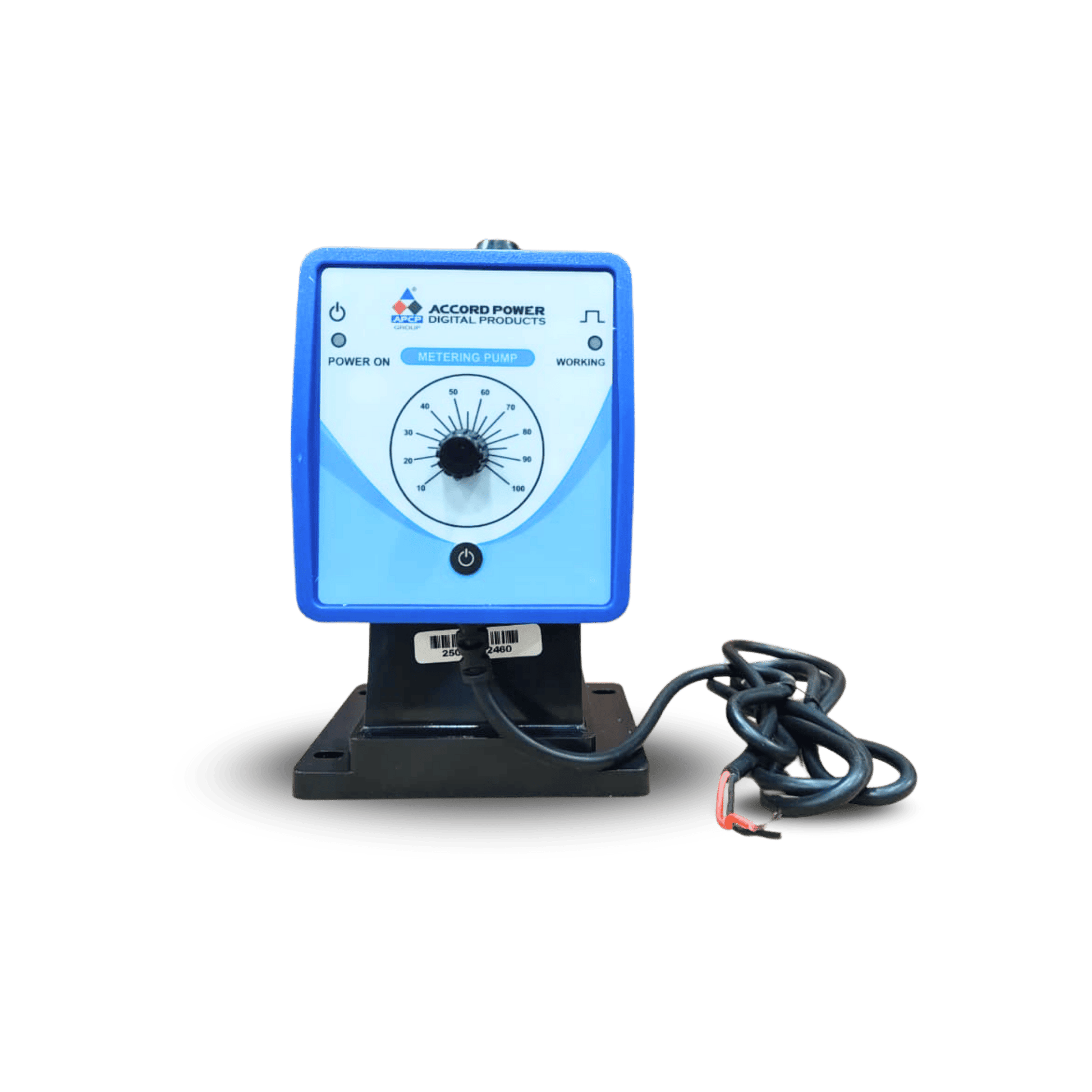

Accord Power Antiscalant Chemical Dosing Pump – 6 LPH

Accord Power Antiscalant Chemical Dosing Pump – 6 LPH

Rs. 3,629.00 + GST
Rs. 4,282.22 (Incl. GST)
Rs. 5,269.00 Rs. 3,629.00 + GST
Rs. 4,282.22 (Incl. GST)
Sale Sold out
Shipping calculated at checkout.

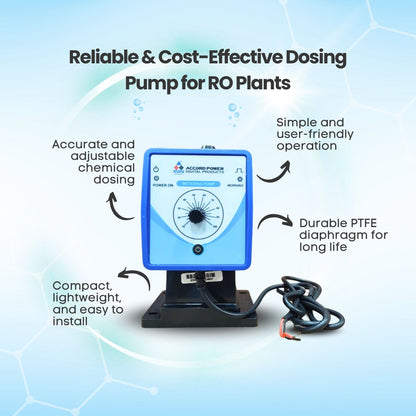

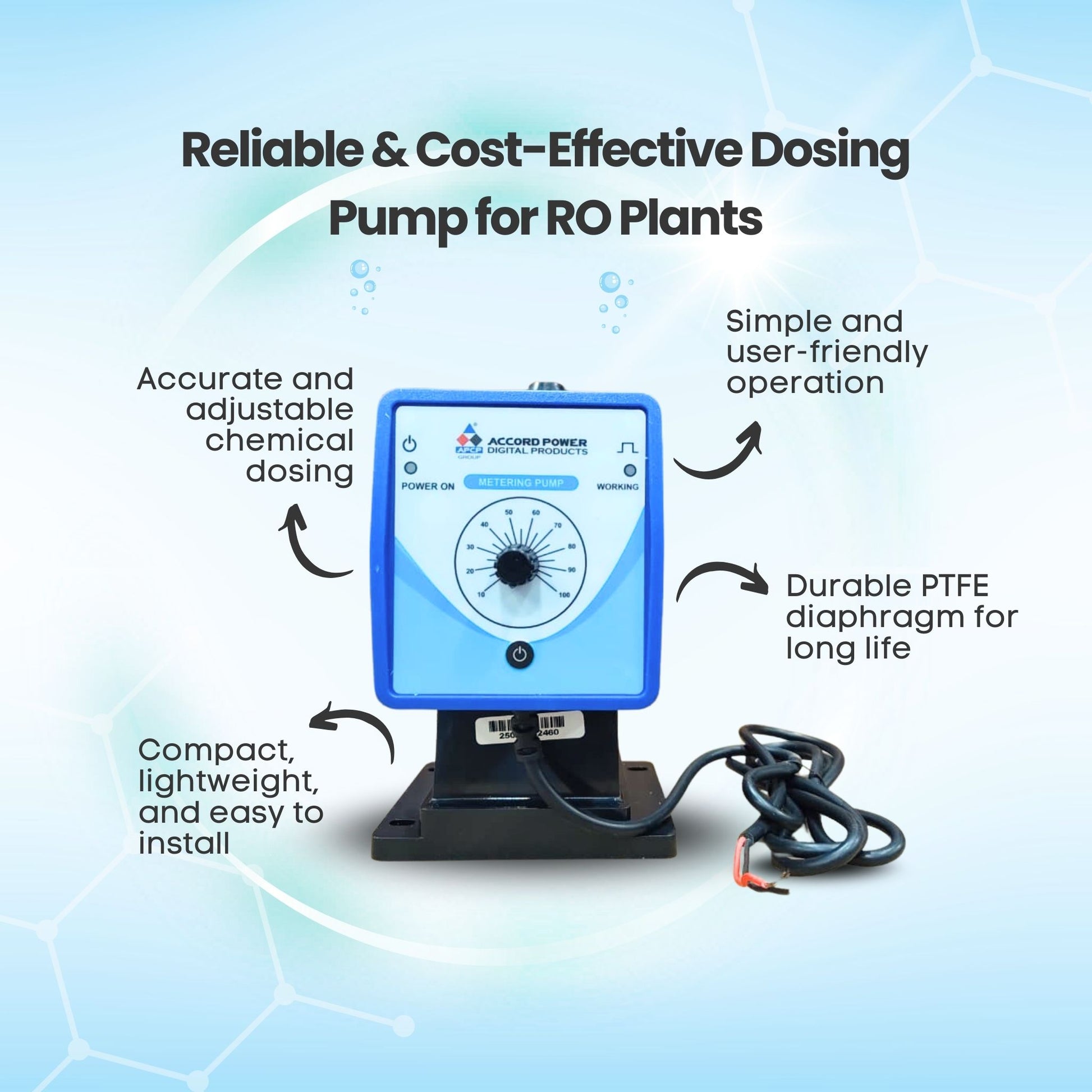

Reliable & Cost-Effective Dosing Pump for RO Plants

Overview

The Accord Power Antiscalant Chemical Dosing Pump is a compact and dependable solution for accurate chemical dosing in RO and water treatment systems. Designed for simple operation and consistent performance, this pump is widely used for antiscalant, chlorine, and other water treatment chemical dosing applications.

With a manual frequency adjustment knob and PTFE diaphragm, it ensures stable dosing and long service life in continuous operations.


🫗 Quick Highlights

  • Brand: Accord Power
  • Type: Electronic Diaphragm Dosing Pump
  • Capacity: 6 LPH
  • Control: Manual Frequency Adjustment
  • Application: RO & Water Treatment

🔍 Ensure smooth RO operation with reliable and cost-effective antiscalant dosing designed for everyday performance.

  • Suitable for a diverse liquid related applications
  • Dosing adjustment knob
  • Compact and lightweight design
View full details

💧 Key Benefits

  • Simple and user-friendly operation
  • Accurate and adjustable chemical dosing
  • Durable PTFE diaphragm for long life
  • Compact design, easy to install
  • Ideal for RO plants and filtration systems

📌 Technical Properties

  • Dosing Capacity: 6 LPH @ 4 kg/cm²
  • Maximum Strokes: 400 strokes/min
  • Tubing Size: LDPE 4 / 6 mm
  • Power Supply: 230V AC, 50 Hz
  • Diaphragm Material: PTFE
  • Pump Head Material: Glass-filled polypropylene

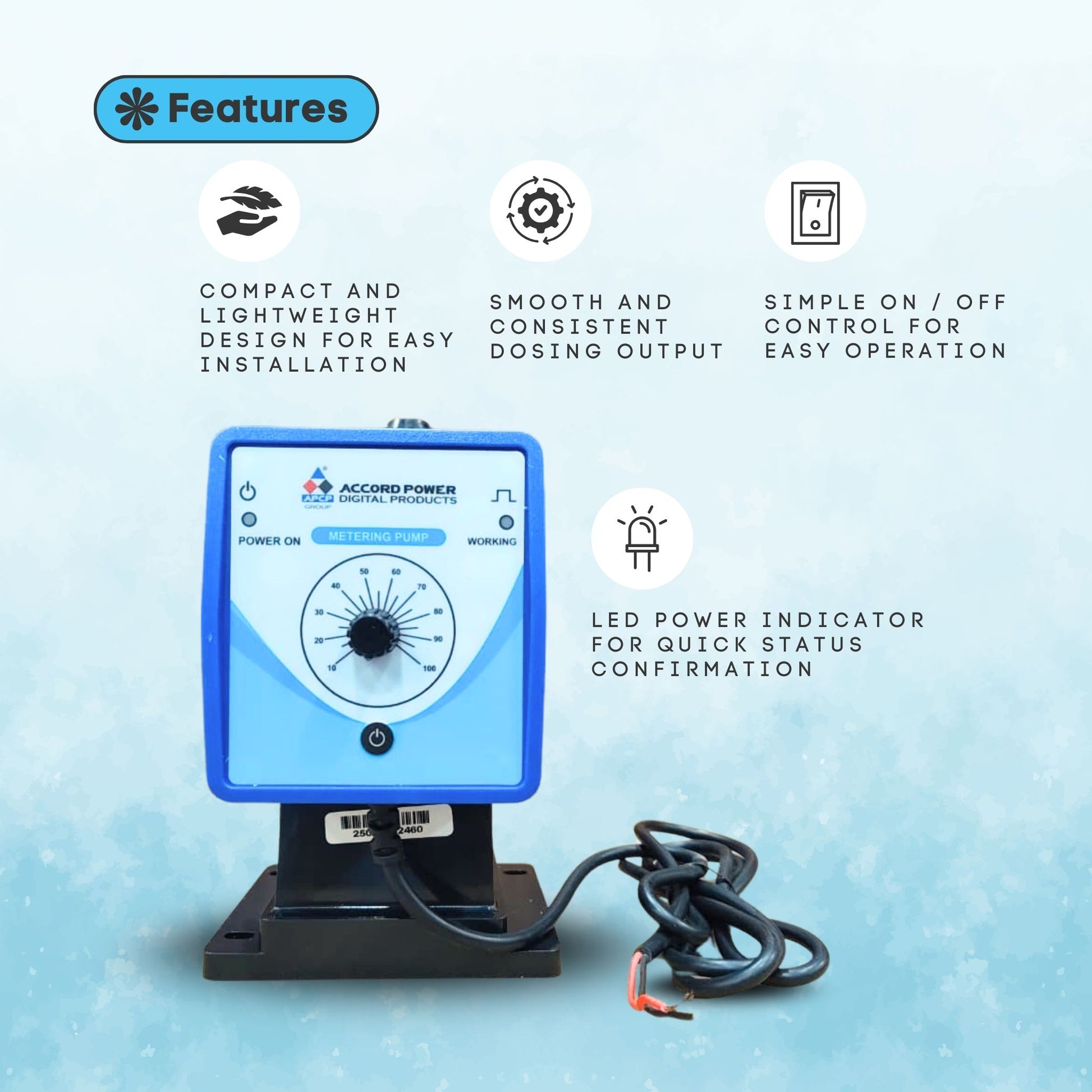

⚙️ Features

  • Simple On / Off control for easy operation
  • LED power indicator for quick status confirmation
  • Manual frequency adjustment knob for precise dosing control
  • PTFE diaphragm for long life and chemical resistance
  • Glass-filled polypropylene pump head for durability
  • Smooth and consistent dosing output
  • Compact and lightweight design for easy installation
  • Low maintenance construction suitable for continuous use
  • Compatible with antiscalants, chlorine, acids, and alkalis
  • Designed for RO plants and water treatment systems

🌊 Applications

  • RO antiscalant dosing
  • Chlorine / sodium hypochlorite dosing
  • pH correction chemical dosing
  • Domestic & commercial RO plants
  • Industrial water treatment systems

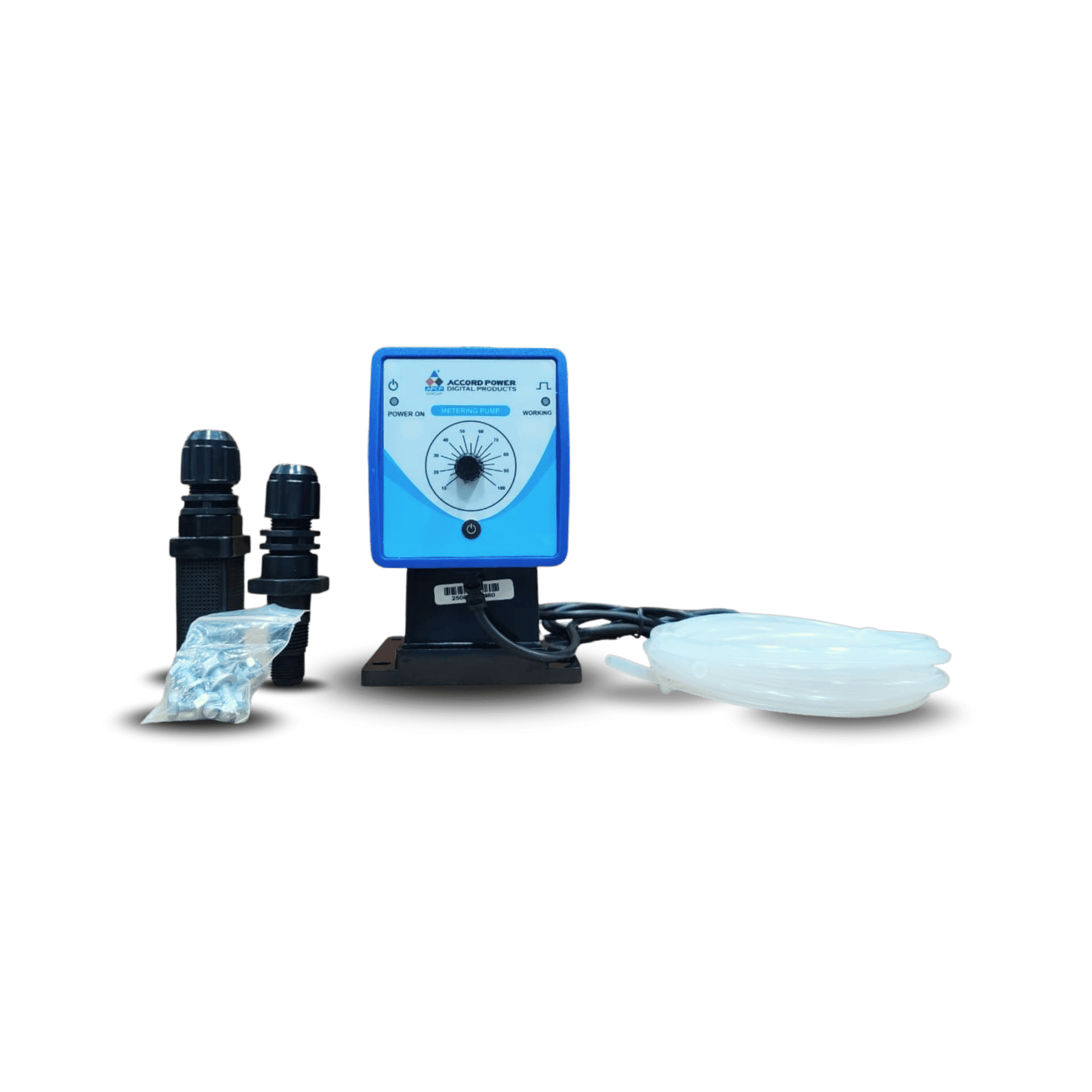

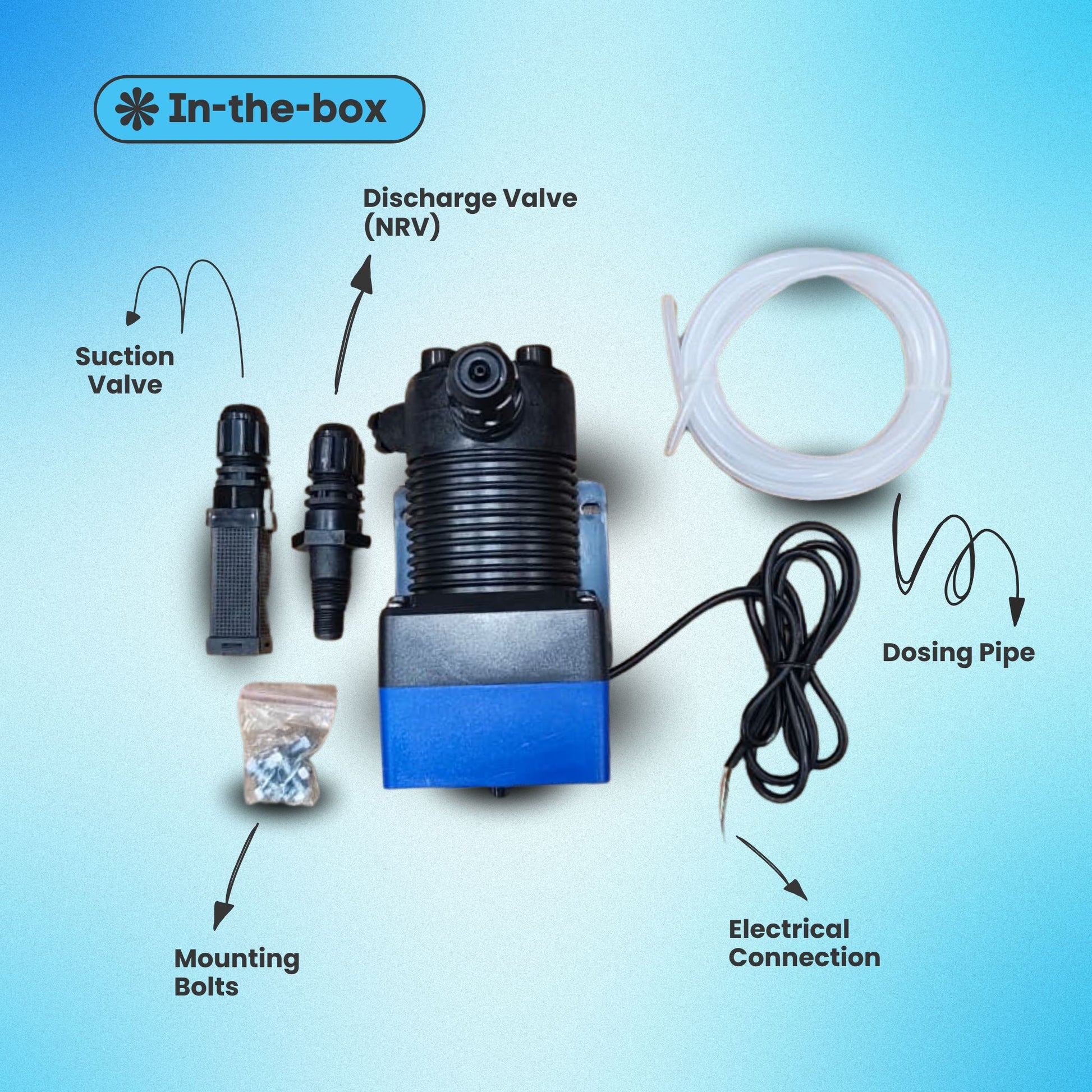

📦 In-the-box

  • Chemical dosing pump
  • Suction & discharge tubing
  • Injection fitting
  • Mounting base

🔧 How To Install

  1. Choose the Installation Location: Install the dosing pump close to the chemical tank and near the RO feed line. The area should be dry, well-ventilated, and easily accessible for operation and maintenance.
  2. Mount the Pump Properly: Fix the pump securely on a wall, skid, or base frame. It should remain upright and stable to ensure accurate dosing and long-term reliability.
  3. Connect the Suction Line: Insert the suction tube into the chemical tank and attach a foot valve with a strainer. Ensure the line is airtight to prevent air entry, which can disturb dosing accuracy.
  4. Connect the Discharge Line: Connect the discharge tubing to the RO feed pipeline. Install an injection point or non-return valve (NRV) to ensure proper chemical entry and prevent backflow.
  5. Provide Electrical Connection: Connect the pump to the appropriate power supply as per its rating. Ideally, interlock it with the RO system so the pump runs only when the plant is operating.
  6. Prime and Start the Pump: Fill the pump head with solution and run it to remove any trapped air. Adjust the dosing rate as required and check all connections before continuous operation.

⚙️ How It Works

Metering Mechanism: A dosing pump operates by delivering a fixed quantity of chemical with each stroke or cycle. This controlled movement allows precise and repeatable dosing, which is essential in RO systems.

Suction and Discharge Process: During operation, the pump first draws chemical from the tank through the suction line, then pushes it into the water line through the discharge side. This alternating action ensures a continuous and steady flow of chemical.

One-Way Flow Control: Internal non-return valves maintain a single direction of flow. This prevents backflow from the pipeline and ensures that each stroke contributes to accurate dosing.

Adjustable Output Control: The dosing rate can be adjusted by changing stroke length, frequency, or speed. This allows the pump to match the exact chemical requirement based on water quality and system design.

Integration with RO System: The pump works in coordination with the RO plant to dose chemicals such as antiscalants, SMBS, or minerals. This ensures membrane protection, proper water chemistry, and consistent system performance.
