13" × 54" FRP Filter Vessel

13" × 54" FRP Filter Vessel

Rs. 5,079.00
Rs. 7,369.00 Rs. 5,079.00
Sale Sold out
Shipping calculated at checkout.

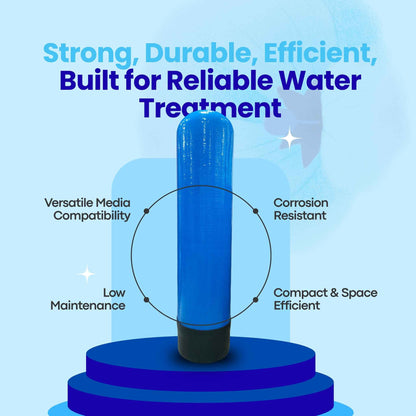

The 13" × 54" FRP Filter Vessel is a medium-capacity pressure vessel designed for water filtration, activated carbon filtration, iron removal, water softening and RO pre-treatment systems.

Made from Fiber Reinforced Plastic (FRP), the vessel offers excellent resistance to rust and corrosion while maintaining a lightweight construction for easier transportation and installation.

With its larger diameter and 54-inch height, the 13" × 54" vessel provides a greater media capacity than smaller FRP vessels, making it suitable for residential, commercial and light industrial water treatment applications.

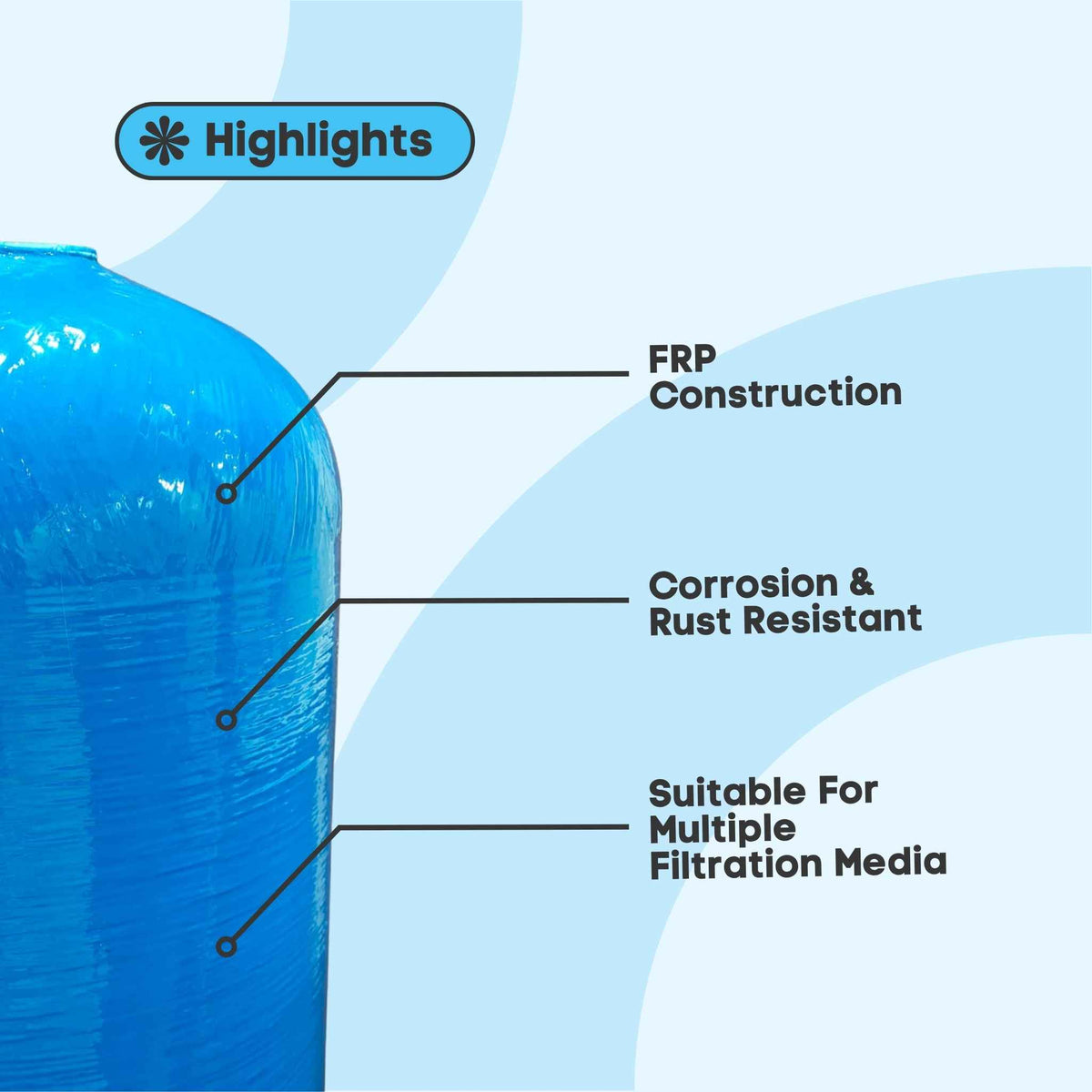

🫗 Quick Highlights

  • Size: 13" × 54"
  • FRP composite construction
  • Corrosion and rust resistant
  • Lightweight compared with metal vessels
  • Larger media capacity
  • Suitable for multiple filtration media
  • Ideal for sand, carbon, softening and iron removal
  • Suitable for RO pre-treatment
  • Compatible with suitable top-mount valves
  • Low maintenance
  • Suitable for commercial and light industrial applications
  • Size: 13" × 54"
  • Fiberglass Reinforced Plastic (FRP) construction
  • Industrial Grade Durability
View full details

💧 Key Benefits

Corrosion & Rust Resistant

FRP construction provides excellent resistance to rust and corrosion, making the vessel suitable for continuous water-treatment applications.

Higher Media Capacity

The 13-inch diameter provides a larger filtration area and greater media capacity compared with smaller FRP vessels, allowing it to handle higher water-treatment requirements.

Lightweight Construction

Despite its larger size, FRP construction keeps the vessel relatively lightweight, making transportation and installation easier.

Versatile Filtration Applications

The vessel can accommodate different filtration media, allowing it to be configured for sand filtration, carbon filtration, iron removal or water softening.

Low Maintenance

FRP vessels do not require regular painting or anti-rust coating, helping reduce routine maintenance.

Suitable for RO Pre-Treatment

The vessel can be incorporated into RO pre-treatment systems to provide appropriate filtration before the RO membrane stage.

📌 Technical Properties

  • Product Type: FRP Filter Vessel
  • Vessel Size: 13" × 54"
  • Material: Fiber Reinforced Plastic (FRP)
  • Construction: FRP composite pressure vessel
  • Installation: Vertical
  • Valve Configuration: Top Mount
  • Application: Pressure water filtration
  • Suitable Media: Filter Sand, Activated Carbon, Softening Resin, Iron Removal Media and other compatible media
  • Operation: Manual or automatic, depending on valve configuration
  • Colour: Typically Blue
  • Maintenance: Low
  • Suitable For: Residential, commercial and light industrial water treatment systems

Operating pressure, connection size, media capacity and recommended flow rate may vary according to the specific manufacturer/model.

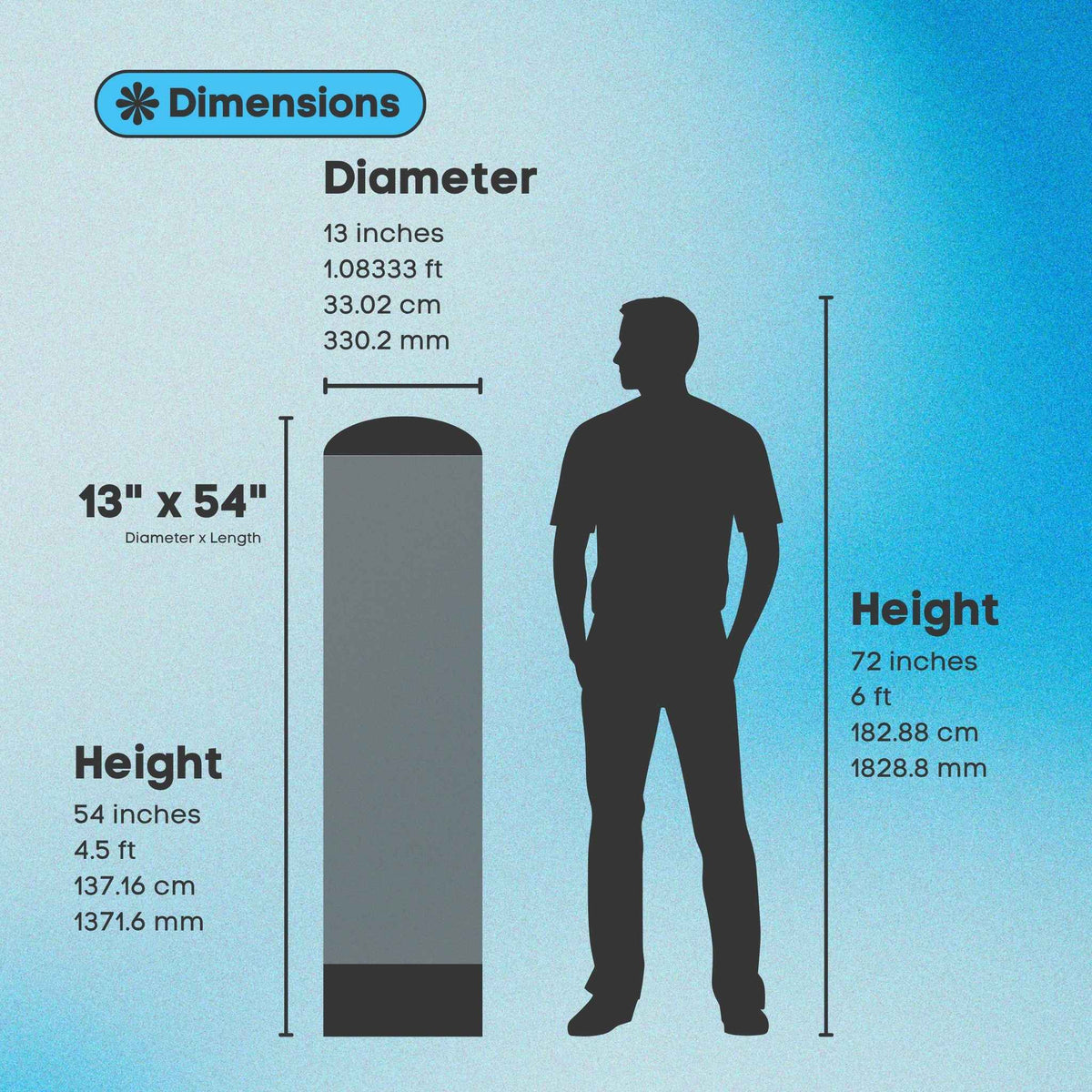

📏 Dimensions

  • Diameter: 13 inches
  • Height: 54 inches
  • Overall Vessel Size: 13" × 54"
  • Approximate Geometric Volume: 92 litres
  • Approximate Internal Volume: 90–92 litres
  • Installation: Vertical
  • Valve Position: Top Mount
  • Design: Vertical pressure vessel

The actual usable media volume is lower than the total internal volume because adequate freeboard and distributor space must be maintained.

🌊 Applications

  • Pressure Sand Filtration
  • Activated Carbon Filtration
  • Iron Removal Systems
  • Water Softener Systems
  • Multi-Media Filtration
  • Residential Water Treatment
  • Commercial Water Filtration
  • Borewell Water Treatment
  • RO Pre-Treatment
  • Process Water Filtration
  • Pre-Filtration Systems
  • Light Industrial Water Treatment

🪨 Common Media Selection

  • Water Filtration Sand – for reducing suspended solids, turbidity and particulate matter.
  • Activated Carbon – for reducing chlorine, odour, taste and certain organic contaminants.
  • Iron Removal Media – for reducing dissolved iron under suitable water chemistry and operating conditions.
  • Cation Exchange Resin – for reducing hardness in water softening applications.
  • Multi-Media Combinations – for enhanced particulate and turbidity reduction.
  • Specialized Filtration Media – selected according to the raw-water contaminants and required treatment objective.

Media selection should be based on raw water analysis, required flow rate, media specifications and desired treated-water quality.

🔧 How to Install

  1. Place the vessel vertically on a stable and level surface.
  2. Install a compatible top-mount multiport or automatic control valve.
  3. Ensure the internal distributor/strainer assembly is correctly installed.
  4. Add the recommended underbed material, where applicable.
  5. Fill the vessel with the selected filtration media.
  6. Maintain sufficient freeboard above the media bed.
  7. Connect inlet, outlet and drain piping correctly.
  8. Check all connections for leakage.
  9. Perform an initial backwash and rinse cycle.
  10. Start normal operation within the recommended flow and pressure limits.

For softener applications, connect the vessel to a suitable brine tank and regeneration system.

Important: All installation, commissioning, and servicing work must be carried out only by qualified water-treatment professionals. Improper or unprofessional installation may result in equipment or plant failure, potentially creating serious or fatal safety hazards. It may also lead to contaminated or poor-quality water, which can cause health risks, damage to industrial machinery, and operational failures.

⚙️ How it Works

The 13" × 54" FRP vessel holds a selected filtration media bed through which water flows under pressure.

  1. Raw water enters through the top-mounted control valve.
  2. Water flows downward through the filtration media.
  3. The selected media captures, adsorbs or exchanges the targeted impurities.
  4. Treated water reaches the bottom distributor.
  5. The distributor collects the filtered water and directs it toward the outlet.
  6. When required, the media is backwashed to remove accumulated impurities.
  7. The vessel is rinsed before returning to normal filtration operation.

The contaminants removed depend on the type and quantity of media installed.
